Home > Products > LED high bay light > Factory Wholesale Most Advanced High Brightness Led High Bay Warehouse Lighting Fixtures Led Lighting

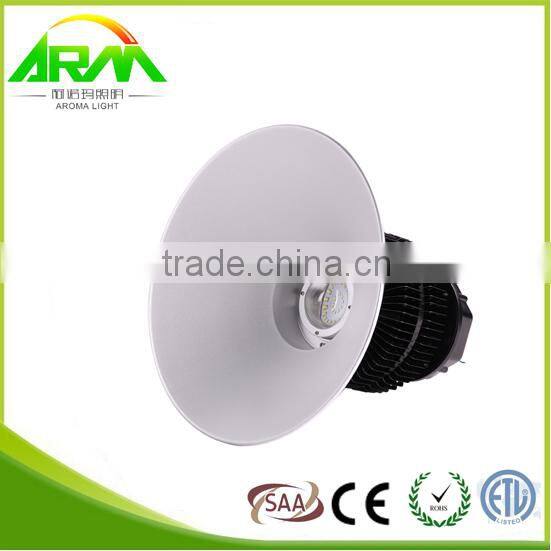

Factory Wholesale Most Advanced High Brightness Led High Bay Warehouse Lighting Fixtures Led Lighting
US$ 75 - 150
/ Piece
2 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
Beautiful Design 150w Led High Bay Light Housing Heat Sink
-
High Power Leds High Intensity Led High Bay Led Retrofit
-
Ip65 Led High Bay Lighting 100w Aluminum Reflector Led High Bay Lighting Fixture
-
Industrial Led High Bay Light 100w Led High Baylight 100w High Led High Bay Industrail Light
-
Led 150w High Bay Best Sell High Bay High Bay Lamps 150w
-
ul Listed 150 Watt Led High Bay Light Led High Bay Warehouse Lighting Fixture Cob Led Industrial Lighting
Product Details
| LED Light Source | Philips/Cree | Warranty(Years) | 5 | |
| Input Voltage(V) | AC100-277V | Lamp Power(W) | 150 | |
| Lamp Luminous Flux(lm) | 15000 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -20, 45 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP54 | Certification | CE, EMC, Energy Star, ETL, FCC, LVD, PSE, SAA | |
| Place of Origin | Guangdong, China | Brand Name | AROMA | |
| Model Number | ARM-HB- 0411M40-150W |
Product Description
Factory wholesale most advanced high brightness led high bay warehouse lighting fixtures led lighting
Product Features:
1.Energy saving: can reach 80% compare with traditional lamps.
2.Environment friendly: No radiation, no heavy metal pollution.
3.Wide voltage constant current, stable performance, safe and reliable.
4.Optimized heat sink design to ensure a excellent heat dissipation system.
5.Low power consumption, high intensity, low lumen attenuation.
6.High brightness, high lumen.
7.Easy to install and maintain, can directly replace incandescent/halogen lamp.
8.Cree led chip.
Advantage:
Technical Data
| Item No. | 150W |
| Input Voltage | AC 100-277V 50Hz/60Hz |
| Working Voltage | DC30-38V |

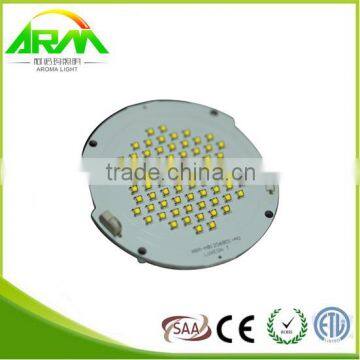

| LED Type | SMD |
| LED Power | 1-10W(CREE) 1-5W(PHILIPS) 1-3W(TD) |
| Total Power Consumption | 150W |
| Luminous Flux (±5%) | 15000lm |
| Color Temperature (CCT) | 2700-7000K |
| Beam Angle of Reflector (Optional) | 45°/ 90°/120° |
| Color Rendering Index (CRI) | CRI>80 |
| Lamp Efficiency | >90% |
| LED Luminous Efficiency | 100lm/W |
| Power Factor (PF) | >0.95 |
| Total Harmonic Distortion (THD) | ≤10% |
| Illuminance Uniformity | >0.7 |
| Light Distribution | Symmetrical / Round Light Area |
| LED Junction Temperature | 150ºC(CREE), 85ºC(PHILIPS),125ºC(TD3535) |
| Waterproof Performance | IP 54 |
| Average Lifespan | 50,000hrs |
| Net Weight (without Reflector) | 5.80kgs |
| Certificate | CE / RoHS / SAA / ETL/DLC |
Mechanical Specifications
| Lamp Housing | Design | High-power SMD, External Aluminum Reflector |
| Material | Die-cast Aluminum / Anodized Aluminum | |
| Housing Processing | Lamp | (Black, Silver color optional) |
| Reflector | Organic Oxidation Processing, Sandblasting Processed | |
| LED Power Supply | Type | Constant Current LED Driver with Aluminum Shell, IP65 |
| Power cable | Waterproof Rubber CableLength: 0.3m | |

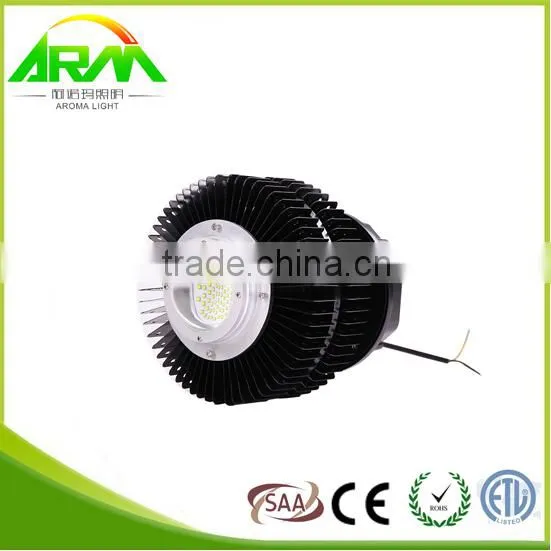

| Heat Dissipation | LED | Thermal Conductive Adhesive, Hollow Aluminum Lamp Body |
| Heat Sink | Phase-chage Tech | |
| LED Driver | Aluminum Shell | |
| PSU Connection | Brown | L (Live Line) |
| Blue | N (Null Line) | |
| Yellow (Green) | G (Ground Line) |
Environmental
| Working | Working Temperature | -20ºC to 45ºC |
| Humidity Range Operating | 10 % to 80 % | |
| Storage | Temperature Range of Storage | -40ºC to 85ºC |
| Humidity Range of Storage | 10 % to 80 % |
Optional Reflector
Explosive view
Installation
Packing
Application
