200W LED high bay light with high lumens
1.Product features
1. Using single powerful LED as the light source, with unique lighting design of Multi- chip integrated single-module; Selecting excellent imported semiconductor chip, which has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

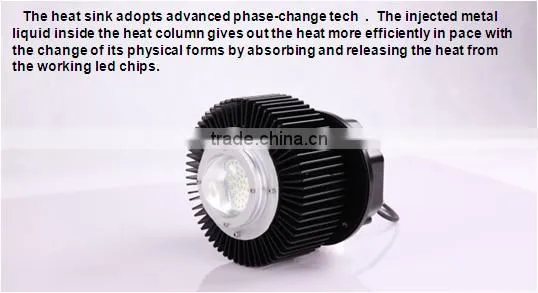

2. The heat sink adopts unique phase-change technology with integrate aluminum structure , effectively transmit the heat, thereby lower the body's temperature, ensure the life of LED chip and power driver.
3. The surfaces of reflector have been anodized or frosted, with compact structure and aesthetic appearance, water proof and dust proof.

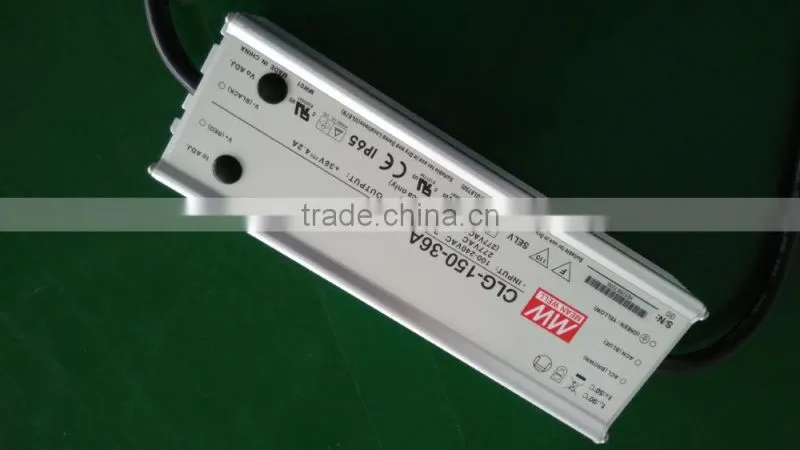

4.The power drive adopts advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by power grid..
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition. Wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury.

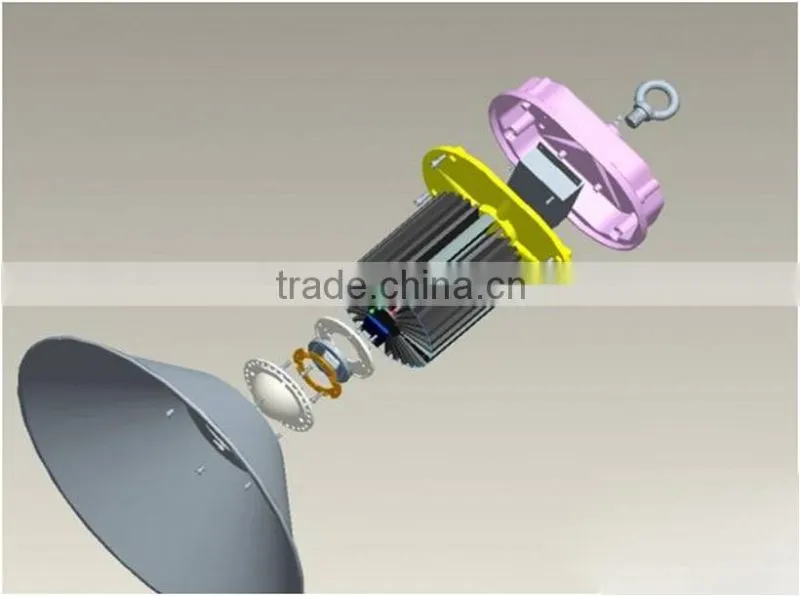

2.Exploded view
3.Advantage
4.Optional Lamp Cover
4.Dimension
5.Technical data
| Technical Parameter | |
| Item No. | 200W |
| Input Voltage | AC 100-277V / 50-60Hz |
| Working Voltage | DC30-38V |
| LED Type | SMD |
| LED Power | 1-10W |
| Total Power Consumption | 200W |
| Luminous Flux (±5%) | 19000lm |
| Color Temperature (CCT) | 2700-5000K |
| Beam Angle of Reflector (Optional) | 45°/ 90°/120° |
| Color Rendering Index (CRI) | CRI>80 |
| Lamp Efficiency | >90% |
| LED Luminous Efficiency | 85-100lm/W |
| Power Factor (PF) | >0.95 |
| Total Harmonic Distortion (THD) | ≤10% |
| Illuminance Uniformity | >0.7 |
| Light Distribution | Symmetrical / Round Light Area |
| LED Junction Temperature | 150ºC, 85ºC,125ºC |
| Waterproof Performance | IP 54 |
| Average Lifespan | 35,000hrs |
| Net Weight (without Reflector) | 5.95kgs |
| Certificate | CE / RoHS / SAA / UL |
| Mechanical Specifications | ||
| Lamp Housing | Design | High-power SMD, External Aluminum Reflector |
| Material | Die-cast Aluminum / Anodized Aluminum | |
| Housing Processing | Lamp | Anodized Processing(Black, Silver color optional) |
| Reflector | Organic Oxidation Processing, Sandblasting Processed | |
| LED Power Supply | Type | Constant Current LED Driver with Aluminum Shell, IP65 |
| Power cable | Waterproof Rubber Cable Length: 0.3m | |
| Heat Dissipation | LED | Thermal Conductive Adhesive, Hollow Aluminum Lamp Body |
| Heat Sink | Phase-change Tech | |
| LED Driver | Aluminum Shell | |
| PSU Connection | Brown | L (Live Line) |
| Blue | N (Null Line) | |
| Yellow (Green) | G (Ground Line) | |
7.Photometric diagram
8.Installation
Arrange the matched parts of the lamp before installation ,check for any missing ones .
- Loosen the four screws on the heat sink ,then put the lampshade onto the corresponding screw position ,tighten the screws.
- Rotate the jump ring into the power drive box , use a cross screwdriver to lock outer screws of the jump ring tightly,hang it on the appointed position .
- Connect the power line ,turn on the lamp ,please note to distinguish the live ,null, ground line (brown -live line ,blue -zero line ,yellowish green -ground line ).
9.Packing information

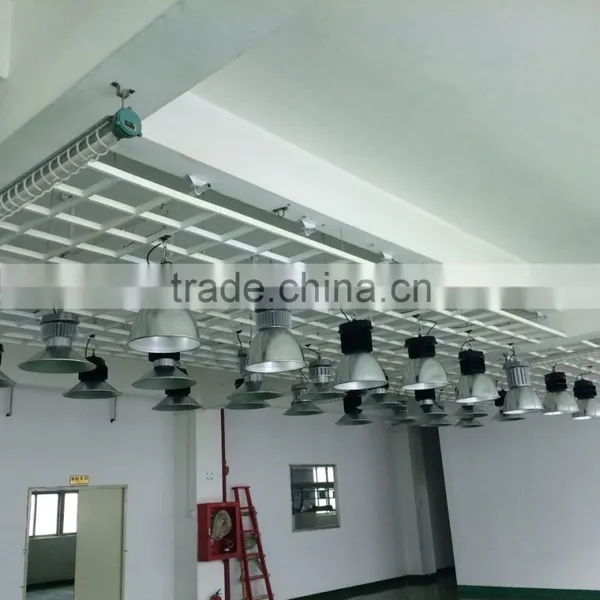

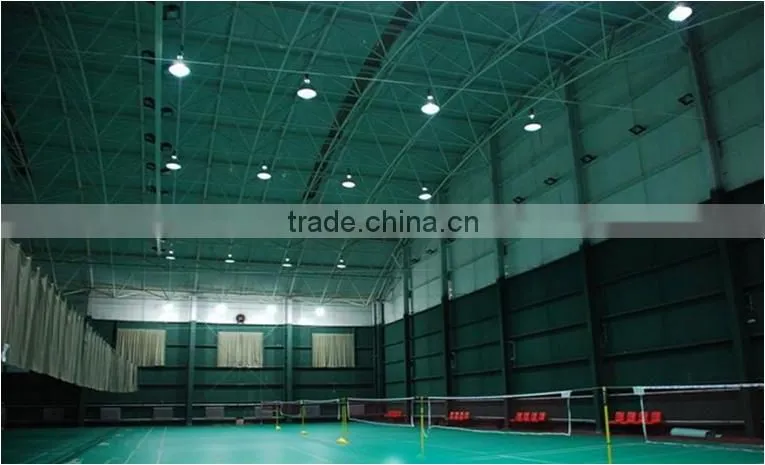

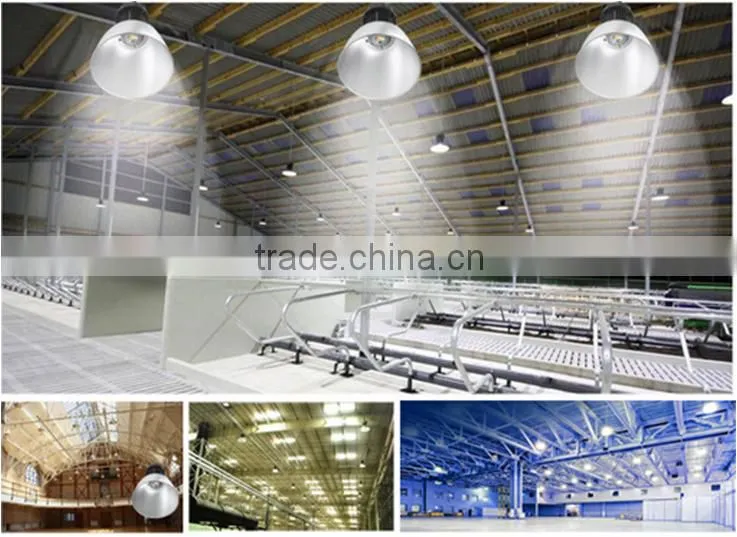

10.Application
11.AROMA instruction
