briquette machine for biomass

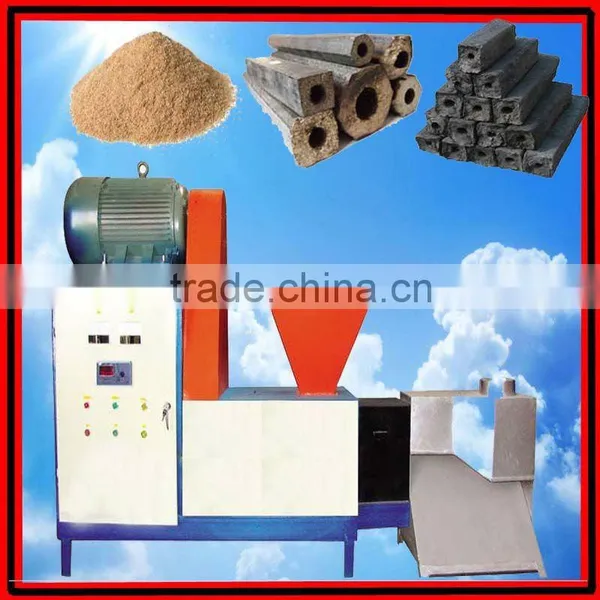

The introduction of the briquette machine for biomass:
The briquette machine for biomass converts substantial biomass wastes(moisture ≤12%, length ≤ 5mm,diameter ≤ 3mm),such as sawdust, sugarcane, rice straw/stalk, bamboo,corn/cotton stalk into bio fuel briquettes(half-charcoal stick) under high pressure and temperature.
The feature of the briquette machine for biomass
1. The briquette machine for biomass with the features of high capacity, low energy consumption, compact and durable.
2. Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level.
3. The wood briquettes making machine can be used as charcoal powder briquette machine by replacement of some spare parts.
4. The out diameter of finished briquettes is 50-80mm.
Features: The extruded wood briquette can be used as fuel for briquette boilers or boilers for heating.
Raw Material of the briquette machine for biomass
The briquette is made by the advanced wood briquettes making machine Almost all type of Agro-Forestry waste can be used, including: wood chips, maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants,
sunflower stalks, bamboo saw dust, bagasse, etc.
Parameters of the briquette machine for biomass
Model |
ZBJ-I |
ZBJ-II |
Motor (kw) |
15kw, 380V/60Hz |
18.5kw, 380V/60Hz |
Diameter of the briquettes: |
Ø 50mm |
Ø 70mm,Ø 80mm |
Capacity |
160-200kg/h |
350-400 kg/h |
Weight (kg) |
600kg |
750kg |
Dimensions(mm) |
1500*600*1600 |
1850*650*1300 |
Note: The above technical parameters are just for your reference.
The spare parts of the briquette machine for biomass
The final biofuel of the briquette machine for biomass
After the processing of drying, compressing under the high pressure and temperature, the wood briquetting is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.
This bio-fuel briquette is 50-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder with a 15-20mm hole through the body.
The process for producing wood briquette
1. Crusher: Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dryer: Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feed let of briquette machine
4. Produce the briquette stick from biomass material without any additive
5. Carbonized the briquette stick
The packing and delivery of the briquette machine for biomass
FAQ
1. Q: What kinds of the raw material is suitable for the briquette machine?
A: All kinds of biomass waste, straw, coconut shell and the wood sawdust, wood branch, ……
2. Q: Any requirements on materials?
A: The size of the raw material should be less 5mm, the moisture of the biomass or sawdust powder should be 8%-12%
3. Q: How many kilograme sawdust needed to form 1KG charcoal,
A: Per Kilogram sawdust can make 0.4kg charcoal,
4. Q: The normally capacity model
A: 150-200kg/h; 250-300kg/h; 350-400kg/h;
