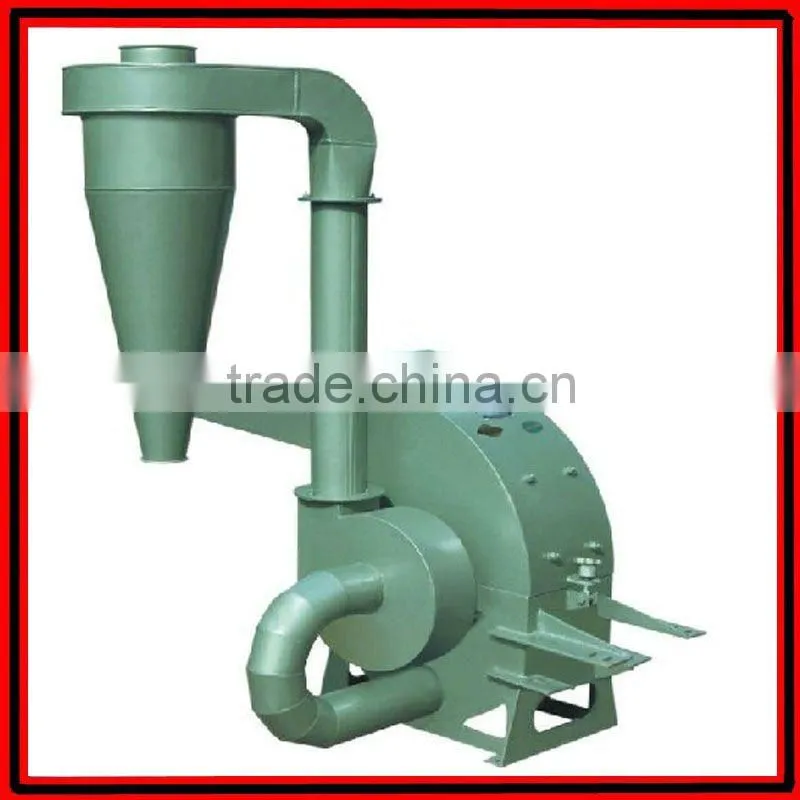

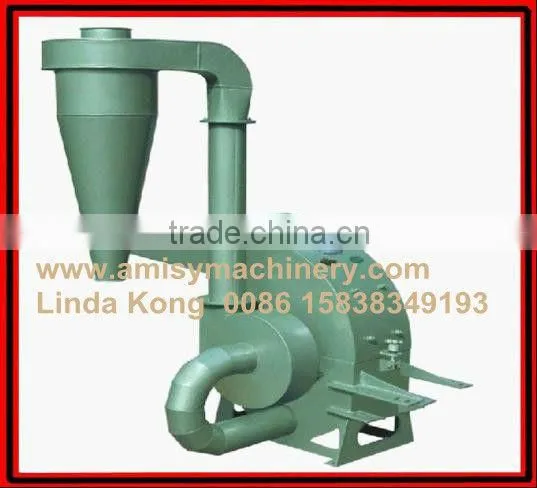

hammer mill for straw
9FQ series Hammer crusher are used for grinding the Bio-mass like straw /stalk / wood chips / tree branches and forest waste into small granular material of less than 3-5mm,which is perfect size before pelletizing and briquetting
The machine could be driven by the diesel engine, motor, tractor, etc.It is equipped with high carbon steel blade and works with high efficiency. widely used in swine farm, wood factory, etc.
Specification for hammer mill:
Model |
Motor Power (kw) |
Diameter of feeding materials(mm) |
Weight(kg) |
Capacity (kg/h) |
9FQ-30 |
4Kw/220V /50Hz |
<=Φ20 |
250/300 |
100-300 |
9FQ-32 |
5.5Kw/380V/50Hz |
<=Φ20 |
300/350 |
200-400 |
9FQ-36 |
7.5Kw/380V/50Hz |
<=Φ20 |
350/400 |
400-500 |
9FQ-40 |
11Kw/380V/50Hz |
<=Φ20 |
400/450 |
500-600 |
9FQ-50 |
18.5kw/380V/50Hz |
<=Φ20 |
490/560 |
700-800 |
9FQ-54 |
22kw/380V/50Hz |
<=Φ50 |
510/580 |
1000-1200 |
Spare parts and Note:
1) Sieve Size: 0.8-16mm;
2) The humidity of Raw material should be < 10%;
3) The Diameter of the outlet of the Cyclone is 160mm
4) The height of cyclone is about 1.9-2m
5) The spare parts should be changed according to the practical production situation
