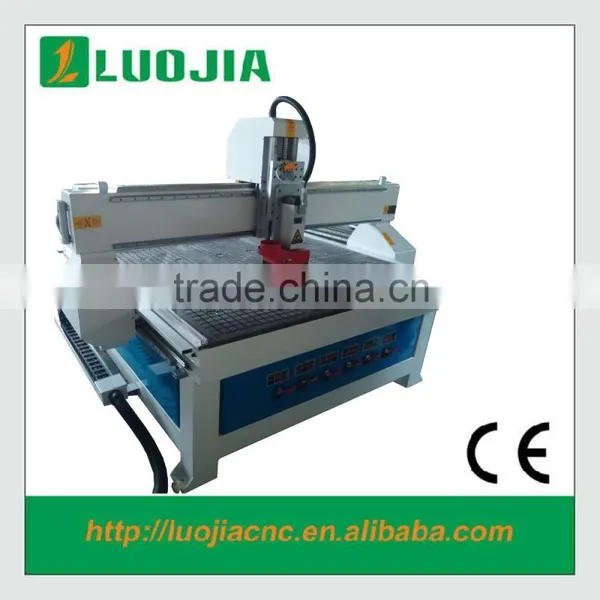

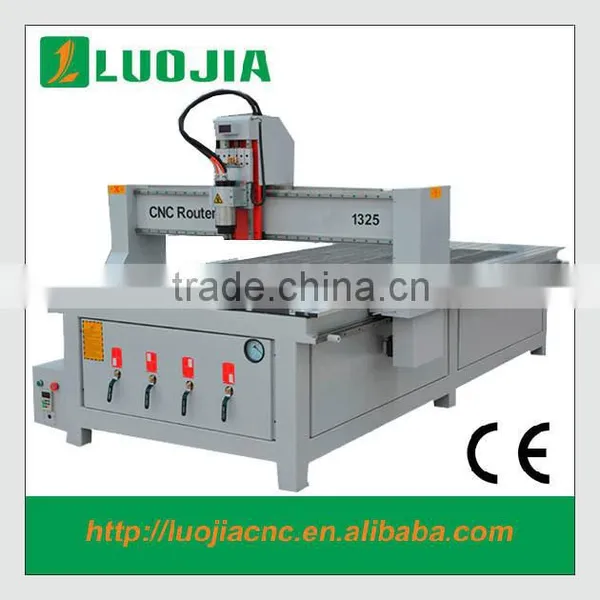

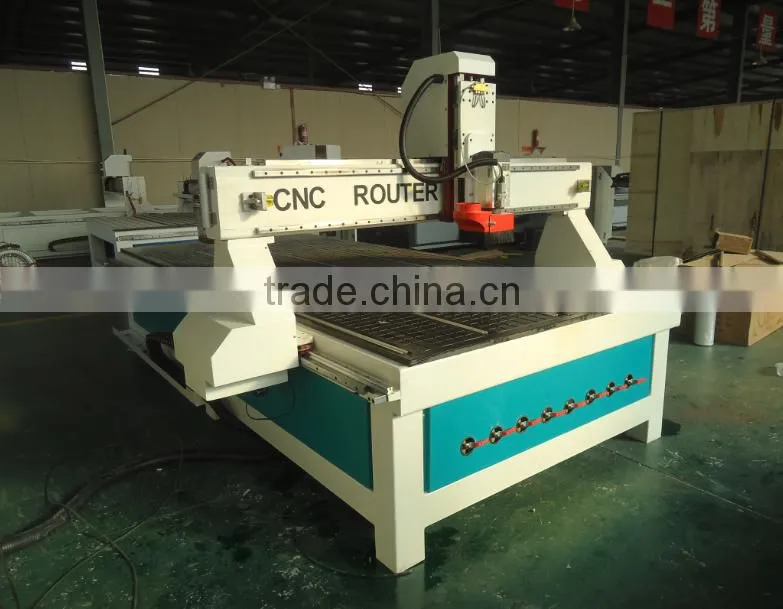

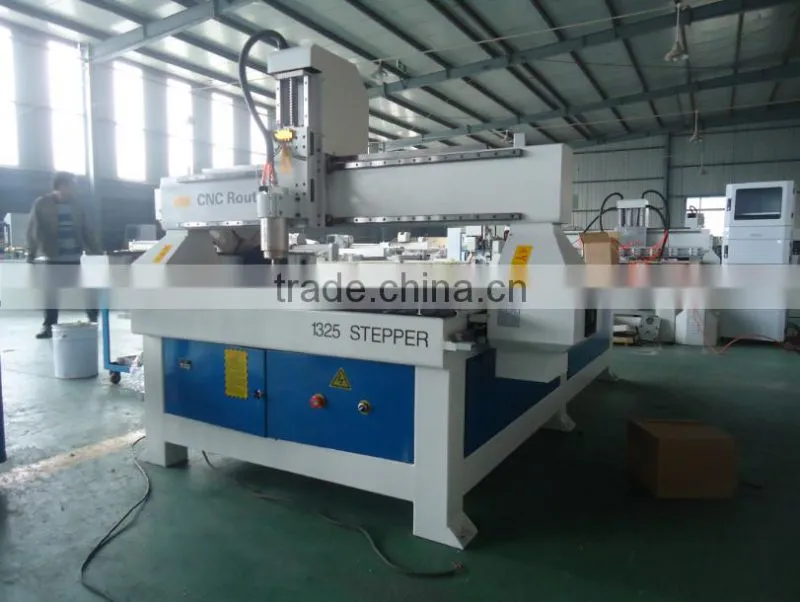

Help Center1200*2400 Wood Cnc Router Machine With Water/air Cooling Spindle
Related Products
-
Flame /plasma/fire Cutting Machine With Servo MotorUS$ 4150.00 - 4150.00MOQ: 1 Set -
1200*1200/1200*2400mm Cnc Router Machine for Plastic Aluminum Acrylic WoodUS$ 3680.00 - 3680.00MOQ: 1 Set
-
Industrial Automatic Table Small Cnc Plasma Cutting Machine PriceUS$ 4150.00 - 4150.00MOQ: 1 Set
-
Cheap Price Mini Desktop Machine/cnc Router Machine 4040 PriceUS$ 1,000 - 3,000MOQ: 1 Set
-
Discount 20% 900*1500 Stone Cnc Router for Cutting/engraving MachineUS$ 4650.00 - 4650.00MOQ: 1 Set
Applications

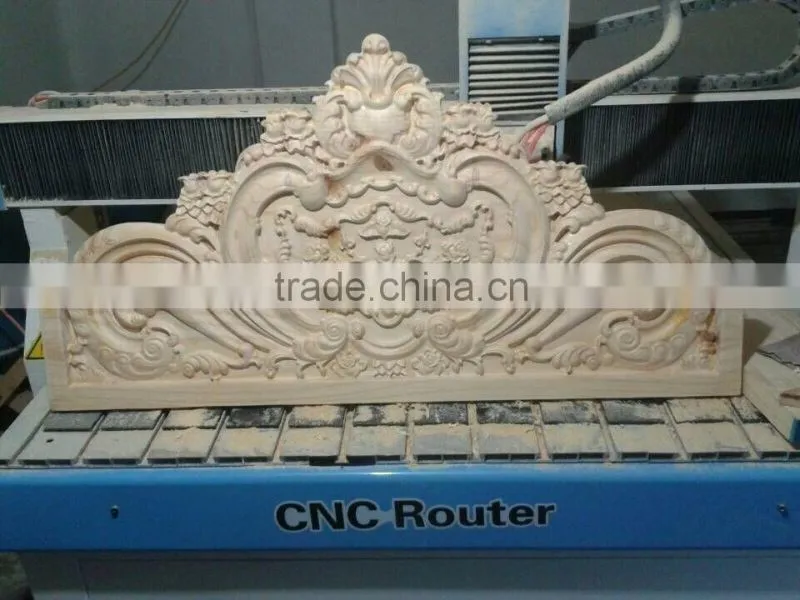

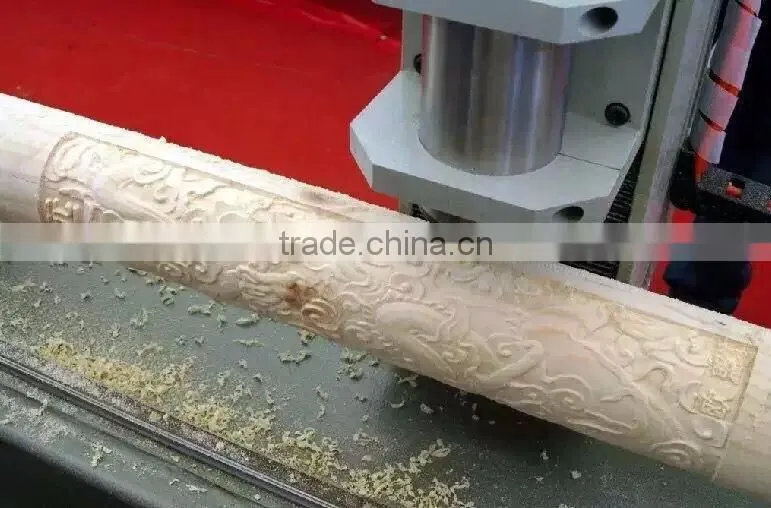

1).Woodworking: wooden door and furniture,windows,tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc

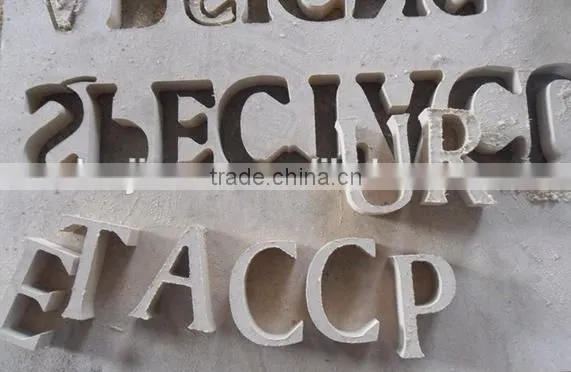

2).Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould

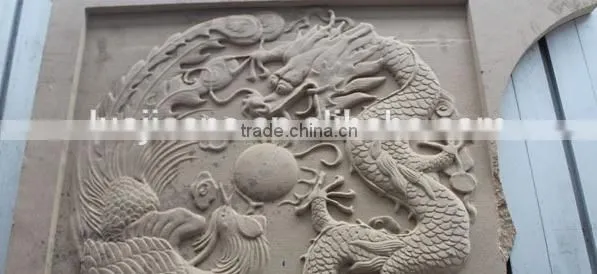

3).Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC,etc
Feature
1).Welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortion,excellent rigidity and powerful strength.
2).With easily-learned sofware,conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor.
3).High power spindle can make machine working with high precision and long service time and stable movement.
parameters
| 1 | model | LJ -1325 woodworking cnc router |
| 2 | working area | 1300x2500x300mm |
| 3 | table size | 1540*2800mm |
| 4 | Max. Idle Travelling Speed | 30000mm/min |
| 5 | Spindle Power | 3KW/4.5KW/6KW |
| 6 | Spindle Speed | 18000r/min |
| 7 | Repositioning Accuracy | 0.02mm |
| 8 | Transmission | XY Rack Gear, Z Ball Screw |
| 9 | Control System | DSP/Ncstudio Control System |
| 10 | Command Code | G Code*.u00*.mmg*.pl |
| 11 | Driving Motor | stepper motor or servo motor |
| 12 | Voltage | 3 phase 380V/220V |
