Automatic virgin coconut oil extracting machine
1.The detail description of the virgin coconut oil extracting machine:
- The virgin coconut oil extracting machine could extract vegetable oil from various kinds of oil materials, soybean, sunflower seeds, peanut, sesame,coconut,rapeseeds, Cotton seed, cashew, hemp seed, palm, walnuts and all the oil content crops.
- The virgin coconut oil extracting machine has multiple functions, including screwing oil press, electrical element for heating chamber, vacuum filter for clearing oil .
- Before pressing some parts of the press such as the press chamber, press screw and press ring will be pre-heated. During pressing, the press can filter the oil in due time. Only one machine the user could get the better edible oil
- After pressing and filtering, we can get pure oil from materials.
- It can save labor and save cost : only 1 or 2people can finish the production. Small land using: only 10-20 square meters can meet the need of production.
- The oil left in cake from oil extraction machine is less than 6% . And cake thickness can be adjusted once the machine stop running.
2. The Main parts of the Automatic virgin coconut oil extracting machine :
1. Screw oil extraction machine
2. Electrical element for heating chamber of oil extraction machine.
3. Vacuum filter of oil extraction machinefor clean crude oil
4. Squeezing bolt of oil extraction machine
5. Heating ring of oil extraction machine
3. The Highlighted features of the Automatic virgin coconut oil extracting machine :
1. The main part is made of stainless steel and alloy steel.
2. Elegant appearance structure,pure oil meet with the standard of health quarantine.
3. high degree of automation.
4. Adopt automatic circuit controlling and automatic temperature controlling.
4. The Technology of the Automatic virgin coconut oil extracting machine :
Model |
Capacity (T/D 24hs) |
Power(Kw) |
Outside Size(mm) |
Weight(kg) |
AMS-80A |
2-3 |
5.5 |
1760*1050*1850 |
600 |
AMS--95A |
3-5 |
7.5 |
2050*1050*1850 |
940 |
AMS--120A |
4-6 |
11 |
2220*1050*1850 |
1200 |
AMS--120CA |
7-9 |
15 |
2340*1050*1850 |
1300 |
AMS--130A |
9-12 |
18.5 |
2450*1100*1950 |
1500 |
AMS--160A |
13-18 |
22 |
2600*1200*1950 |
1680 |
5.The oil yield ratio ot the virgin coconut oil extracting machine
Raw Material |
Oil Extraction Rate |
Oil Cake Oil Containing Rate |
Output Oil Quality |
||
Impurity |
Water |
Acid Value |
|||
Sesame |
≥91% |
≤8.0% |
≤0.20% |
≤0.20% |
≤4.0 |
Peanut |
≥91% |
≤8.0% |
≤0.20% |
≤0.20% |
≤4.0 |
Rapeseed |
≥80% |
≤7.0% |
≤0.20% |
≤0.20% |
≤4.0 |
Soybean |
≥65% |
≤7.0% |
≤0.20% |
≤0.20% |
≤4.0 |
Cottonseed |
≥76% |
≤7.5% |
≤0.20% |
≤0.20% |
≤4.0 |

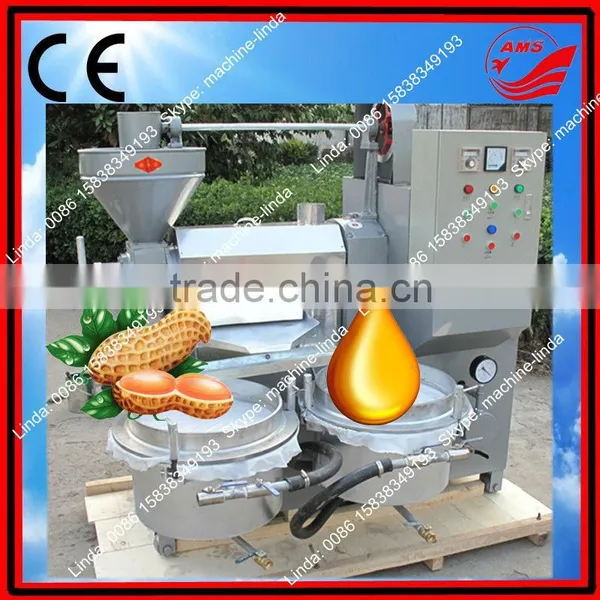

6.The pictures of the virgin coconut oil extracting machine :
The packing and delivery of the virgin coconut oil extracting machine:
The production room of the A virgin coconut oil extracting machine:
