2016 CE Certificated Peanut Oil Extraction Machine/oil Machine for Sale

2016 CE Certificated Peanut Oil Extraction Machine/oil Machine for Sale thumbnail-1
2016 CE Certificated Peanut Oil Extraction Machine/oil Machine for Sale photo-1
US$ 1,000 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Peanut Oil
Type:
Other, Cold & Hot Pressing Machine
Contact Supplier Request Quote Chat Now
Zhengzhou Amisy Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Peanut Oil
Type Other, Cold & Hot Pressing Machine
Automatic Grade Automatic
Production Capacity High
Place of Origin Henan, China
Brand Name AMS
Model Number AMS-6YL
Voltage 380V
Power(W) 5.5-22KW
Dimension(L*W*H) 2502*1680*2900mm
Weight 1350kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Peanut oil extraction machine

ALL IN ONE PIECE integrated oil extraction machine,best choice to obtain virgin oil.



Introduction of the Peanut oil extraction machine :

  • This peanut oil extraction machine could extract oil from different oil materials, such as peanuts, rapeseeds, beans cotton seeds, sesame, olive,sunflower,cotton seeds, tee seeds,coconut,cocoa and grass seeds corn pummels etc.
  • The Peanut oil extraction machine has multiple functions, including screw oil press ,electrical element for heating chamber ,vacuum filter for clearing oil .It is matched with cabinet box for controlling all of the working machines.
  • Before pressing some parts of the press such as the press chamber, press screw and press ring will be pre-heated.During pressing,the press can filte the oil in due time.

Main model of the Peanut oil extraction machine :

MODEL

Capacity(kg/h)

Overall Dia.(mm)

Weight(Kg)

Motor(Kw)

AMS-80A

100kg/h

1420*635*1480

&1135*530*520

680

5.5+0.55

AMS-95A

150kg/h

2270*1100*1950

780

7.5+1.1

AMS-120A

250kg/h

2202*1285*2220

880

11-15

AMS-130A

500kg/h

2302*1585*2820

1280

15+2.2

AMS-180A

800kg/h

2502*1680*2900

1350

22+2.2



The oil yield ratio of the Peanut oil extraction machine :

Raw Material

Oil Extraction Rate

Oil Cake Oil Containing Rate

Output Oil Quality

Impurity

Water

Acid Value

Sesame

≥91%

≤8.0%

≤0.20%

≤0.20%

≤4.0

Peanut

≥91%

≤8.0%

≤0.20%

≤0.20%

≤4.0

Rapeseed

≥80%

≤7.0%

≤0.20%

≤0.20%

≤4.0

Soybean

≥65%

≤7.0%

≤0.20%

≤0.20%

≤4.0

Cottonseed

≥76%

≤7.5%

≤0.20%

≤0.20%

≤4.0

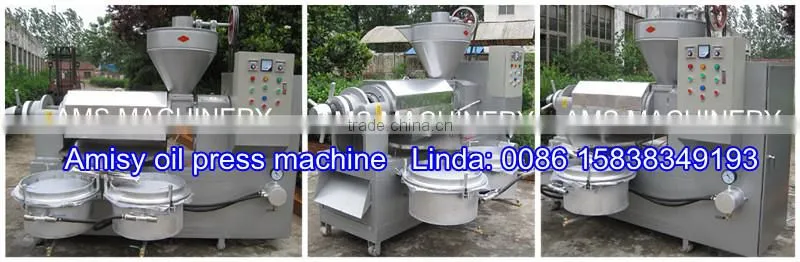

2016 CE Certificated Peanut oil extraction machine/oil machine for sale

2016 CE Certificated Peanut oil extraction machine/oil machine for sale

Main model of the oil extraction machine:

Model

Capacity (T/D 24 hours)

Power(Kw)

Outside Size(mm)

Weight(kg)

AMS-68A

1-1.5

5.5

1600*890*1500

370

AMS-80A

2-3

5.5

1760*1050*1850

600

AMS--95A

3-5

7.5

2050*1050*1850

940

AMS--120A

5-6

11

2220*1050*1850

1200

AMS--120CA

8-9

15

2340*1050*1850

1300

AMS--130A

9-12

18.5

2450*1100*1950

1500

AMS--160A

13-18

22

2600*1200*1950

1680













































The oil yield ratio of the oil extraction machine:

Raw Material

Oil Extraction Rate

Oil Cake Oil Containing Rate

Output Oil Quality

Impurity

Water

Acid Value

Sesame

≥91%

≤8.0%

≤0.20%

≤0.20%

≤4.0

Peanut

≥91%

≤8.0%

≤0.20%

≤0.20%

≤4.0

Rapeseed

≥80%

≤7.0%

≤0.20%

≤0.20%

≤4.0

Soybean

≥65%

≤7.0%

≤0.20%

≤0.20%

≤4.0

Cottonseed

≥76%

≤7.5%

≤0.20%

≤0.20%

≤4.0



Accessories

 The spare parts of the Peanut oil extraction machine:



1. Screw oil expeller



2. Electrical element for heating chamber .



3. Vacuum filter for clean crude oil



4. Squeezing bolt



5. Heating ring.2016 CE Certificated Peanut oil extraction machine/oil machine for sale





Packing&loading





 The packing and delivery of the Peanut oil extraction machine

2016 CE Certificated Peanut oil extraction machine/oil machine for sale
