New Products poultry feed pellet machine
The Introduction of the poultry feed pellet machine
Ring die poultry feed pellet machine is widely used in the granulation of corn, wheat, beans etc. The output pellets are used as animal and poultry feedstuff in livestock farm, poultry farm, feed processing industry and aquaculture. Now, based on the outstanding features of its high throughput, low consumption and mature technology, ring die feed pellet mill has become more and more popular and possess broad market share at home and aboard.
The Application of the poultry feed pellet machine
Feed ring die pellet mill can be widely used in large, medium and small aquaculture, grain feed factory, livestock farm, poultry farm, individual farmers, small and medium sized farms, as well as feed manufacturer plant.
The Features of the poultry feed pellet machine
1. Stainless steel ring die resists corrosion, has long service life and guarantees high quality pellets.
2. High quality gearbox of this ring die pellet machine can adjust the speed timely, avoiding blockage.
3. Using imported bearings and oil seals to get better transmission performance, stable operating, and less noise.
4. Driven by high precision gear which ensures high productivity and low energy-consumption.
5. Lubricating system is adopted, which automatically lubricates each main bearing and oil seal so as to improve the machine reliability and service life.
6. Permanent magnet device can remove impurities in the pelletizing process
7. Convenient maintenance and operation.
Unique Advantages of the poultry feed pellet machine 1. No need of external force to feed the material. As the grain material like wheat, corns, etc. is heavy enough to enter the pelletizing chamber automatically and smoothly.
2. The advanced conditioner ensures the conditioning time>150 seconds, making the material cooked sufficiently so as to be helpful for the quality of pellets.
3. Double or three layers jacketed conditioners can be installed to meet special needs of aquatic feed.
4. The type of powder with low moisture content can be processed feed, but also can process a higher water content of live feed pellets.
Grain such as corn, wheat, rice and soybean etc.
Size range for poultry feed pellets 2.5-3 mm
Size range for livestock feed pellets 4-6 mm
Capacity: 0.5-24T/H
Quality guarantee: 2 years for main body
Extensive range of pellet plant ancillary machines and spares for your choice
* Technical Parameters of the poultry feed pellet machine
| Model | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Screw Feeder Power | 0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring die inner diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Ring die rotational speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
| Roller outer diameter | 140mm | 165mm | 190mm | 206mm | / |
| Dimension | 2300*1000*2100 mm | 3200*1100*1700 mm | 3200*1300*1900 mm | 3500*1300*2800 mm |
3500*1500*2900 mm |

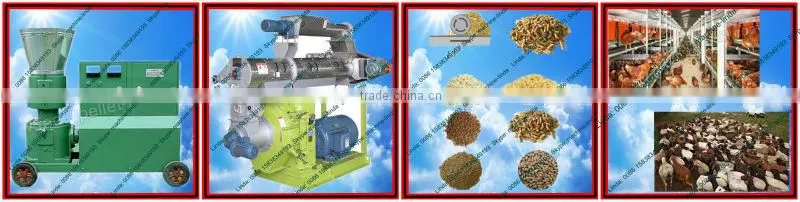

*The pictures of the poultry feed pellet machine
