geocomposite membrane
geomembrane/geotextile
thickness:0.3-4mm
waterproofing
color:white

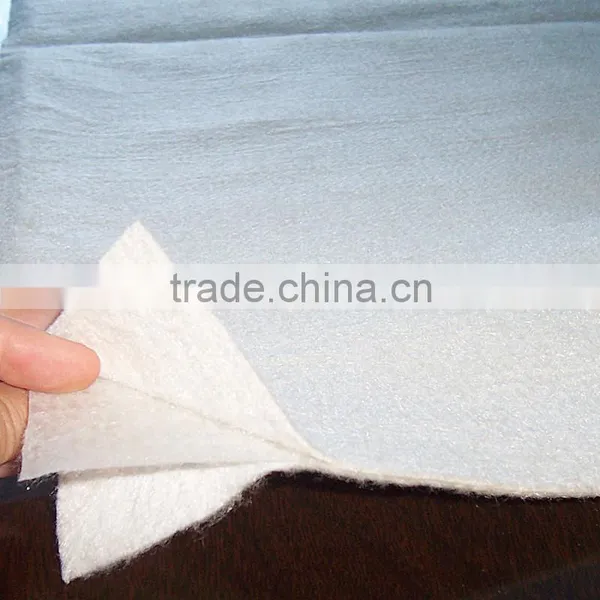

Composite geomembrane,a waterproof material,compound with geotechnological fabric and geomembrane , it is used for draining off water and adding the muscle mainly. It divides into one cloth one membrane and two cloth first membrane,width 4-6m,weight range is 200-1500g/m2.

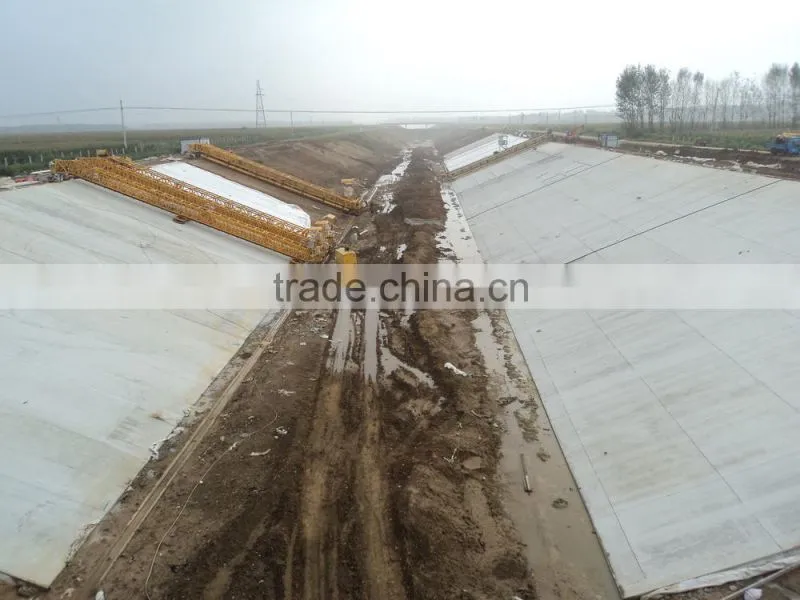

The geomembrane is against drawing, tearing resistance,and high CBR plunger strength, can meet the need of civil engineering such as water conservancy , municipal administration,building,traffic,subway,tunnel etc.Because of selecting high polymer materials for use and adding the aging-resistant materials in the production technology, it can use in the unconventional temperature environment.
geoomposite geomembrane technical datas
Unit weight,(g/m2) |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
Remarks |
|
Membrane thickness(mm) |
0.15-0.35 |
0.3-0.5 |
|
||||||
Breaking strength(kN/m) |
5 |
7.5 |
10.0 |
12.0 |
14.0 |
16.0 |
18.0 |
MD./CD |
|
CBR burst strength(kN) |
1.1 |
1.5 |
1.9 |
2.2 |
2.5 |
2.8 |
3.0 |
|
|
Tearing strength (kN) |
0.15 |
0.25 |
0.32 |
0.40 |
0.43 |
0.56 |
0.62 |
MD./CD |
|
Hydrostatic pressve(MPa) |
geotextile+membrane |
0.3-0.55 |
0.5-0.8 |
|
|||||
geotextile+membrane+geotextile |
0.4-0.7 |
0.6-1.0 |
|
||||||
