Pond Liners(HDPE Geomembrane)

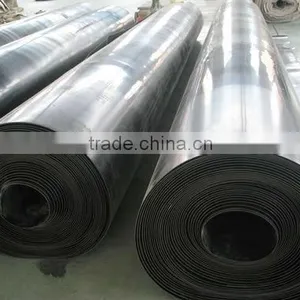

Pond Liners(HDPE Geomembrane) thumbnail-1
Pond Liners(HDPE Geomembrane) photo-1
US$ 0.96 - 6.98 MOQ: 5000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Pretty Lion
Model Number:
0.5-4mm
Contact Supplier Request Quote Chat Now
Taian Pretty Lion Light Industrial Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Pretty Lion
Model Number 0.5-4mm
Material EVA, HDPE, LDPE

hdpe pond liner

Composite geomembrane,a waterproof material,compound with geotechnological fabric and geomembrane , it is used for draining off water and adding the muscle mainly. It divides into one cloth one membrane and two cloth first membrane,width 4-6m,weight range is 200-1500g/m2.

  The geomembrane is against drawing, tearing resistance,and high CBR plunger strength, can meet the need of civil engineering such as water conservancy , municipal administration,building,traffic,subway,tunnel etc.Because of selecting high polymer materials for use and adding the aging-resistant materials in the production technology, it can use in the unconventional temperature environment.



Technical Data



Item and Art No.

PLD0601

PLD0602

PLD0603

PLD0604

PLD0605

PLD0606

PLD0607

Unit weight, g/m2

400

500

600

700

800

900

1000

Break strength,

kN/m

5

7.5

10.0

12.0

14.0

16.0

18.0

MD/CD CBR Plunger Strength,kN

1.1

1.5

1.9

2.2

2.5

2.8

3.0

Tear strength, kN

0.15

0.25

0.32

0.40

0.48

0.56

0.62

Film thickness,mm

0.25-0.35

0.3-0.5



PE Geomembrane













Features:
1.All physical factors such as anti-draw, anti-tear, and anti-stab meet the requirement of water works, chemicals, tunnels, and transportation project in most conditions.
2.Good aging, durable performance, and wide temperature arrange, it can be useful over thirty years on the condition of -60æ«60æ.
3.Anti-stab and fine friction factors.
4.Canker proof, acid and alkali proof, untoxic.
5.Lower cost per unit area, cost is 1/3«1/2 lower than that of PVC film, glass and cloth.
6.Convevient to install and dependable effect.
Specification:
Breadth:4-14m Thickness:0.18-1.5mm



Technical Data



Art No.

PLC0701

PLC0702

Item and Type

GL LDPE

GH H(Mid)DPE

Material

GL-1   GL-2

LDPE



Thickness Range (mm)

0.20mm-2.0mm

0.20mm-2.0mm

Carbon Content(%)

≥2%

≥2%

Environment Stress Crack Resistance

G/B STANDARD

G/B STANDARD

  ≥1500

Oxidation Inducing Time at 200 °C

G/B STANDARD

G/B STANDARD

≥20

Tensile Strength (Mpa)

≥14

≥17

≥25

Elongation (%)

≥400

≥450

≥550

Right Angle Tear Strength (Mpa)

≥50

≥80

≥110

Vapor Permeation (g.cm/cm2.s.pa)

≤1.0x10-16

≤1.0x10-16

Soft Point(°C)

>90



Crack Temperature(°C)

<-70

<-70

Filter Coefficient (cm/s)

≤10-12

 ≤10-12











PVC Waterproof Material













     PVC waterproof rolls are formed by being added various auxiliary and ageing-resistance agent into chlorine vinyl resin with the one-time forming extrusion press (it is a first in our country) made by our company. It is characterized by high extensibility and elongation, good flexibility at low temperature, good ageing-resistance and long life span.

     Application  scope: Widely used in roof,basement ,railway,tunnels,reservoir,non-ferrous metals and rubbish treatment.



PVC Band Technical Data (PLD0801)



Item

Index

Tensile strength (MPa)≥

10.0

Break elongation (%)≥

200

Heat treatment dimension change rare (%)≤

2

Low temperature bending performance °C

-20°C No crack

Against permeability 0.3MPa 30min

No permeability





PVC Compound Waterproof Rolls Technical Data (PLD0802)



Item

Index

Tensile strength (N/cm)

≥100

Elongation (%)

≥150

Tearing strength (N)

≥20

Against permeability

0.3MPa

Low temperature bending performance (°C)

-30°C No crack






































pond liners(HDPE Geomembrane)pond liners(HDPE Geomembrane)pond liners(HDPE Geomembrane)
