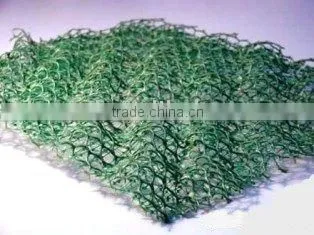

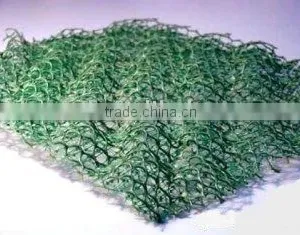

Three-dimensional turf reinforcement mat

Specifications

Three-dimensional turf reinforcement mat is a new-typed seed planting material with tridimensional structure.

Three-dimensional turf reinforcement mat can protect the ground surface being corroded before the turf is growing up, and fix the seeds.
The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc.

                                                    Standard Type(Slope Angle≤45°)

Art No.	PLC0201	PLC0202	PLC0203	PLC0204
Item and Type	EM2	EM3	EM4	EM5
Unit Weight≥(g/ m 2 )	220	260	350	430
Thickness≥(mm)	10	12	14	16
Tensile Strength≥(kN/m)	0.8	1.4	2.0	3.2
Width(m)	2.0

















           High Tensile Strength Type( Slope Angle 50°- 90°)

Art No.	PLC0205	PLC0206	PLC0207	PLC0208	PLC0209	PLC0210
Item and Type	QEM3		QEM4		QEM5
Tensile Strength  ≥(kN/m)	6	9	9	12	15	20
Elongation≤%	10
