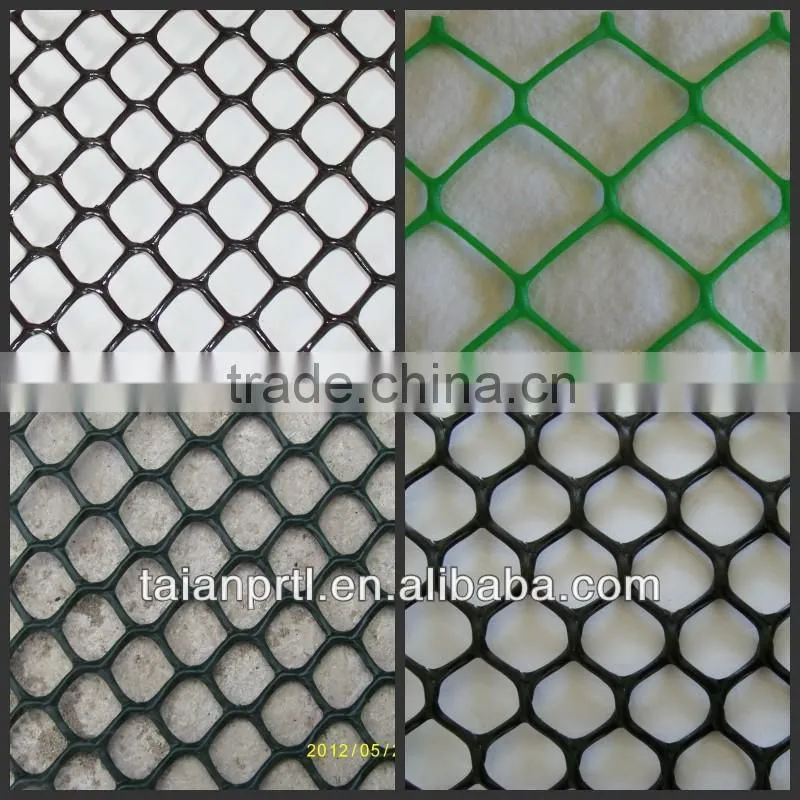

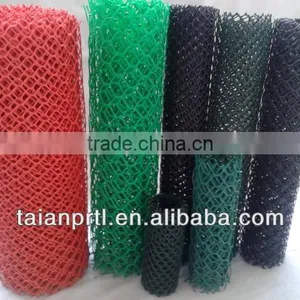

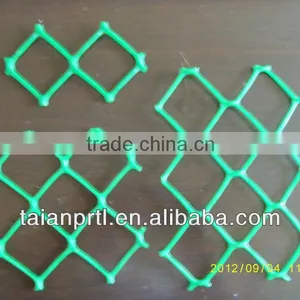

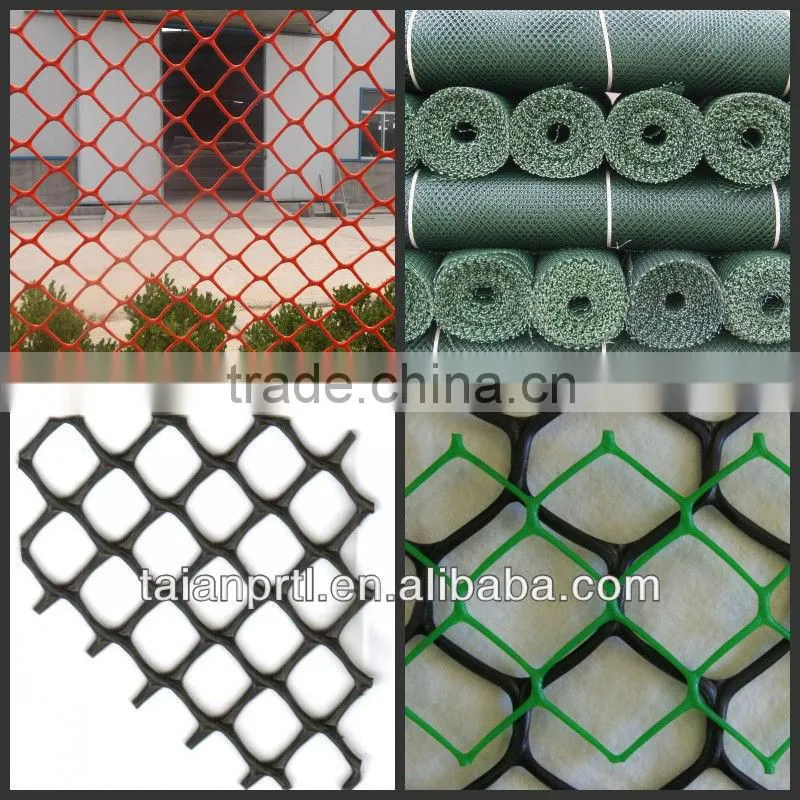

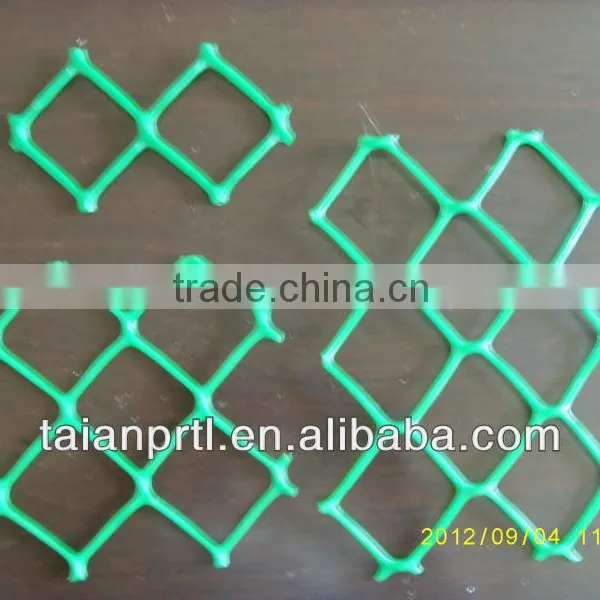

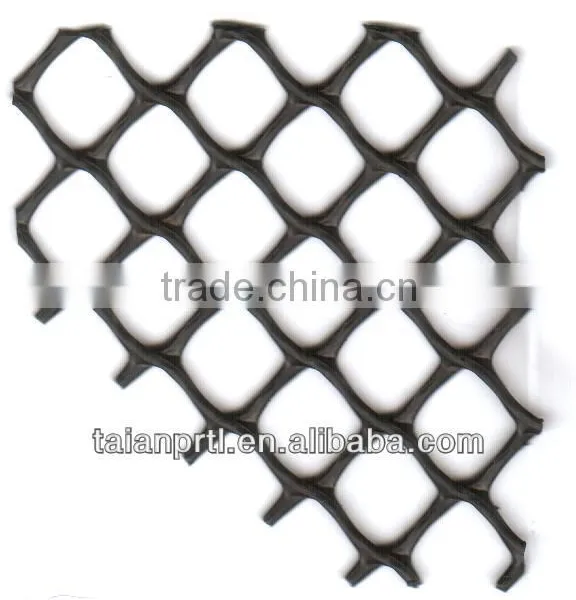

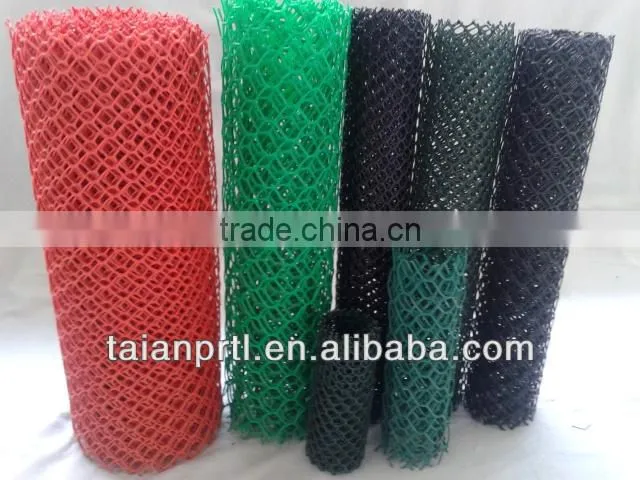

Help CenterEarthwork Product( Diamond Mesh)
Related Products
-
Fiberglass Geogrids for Roadbed ReinforceUS$ 0.38 - 2.49MOQ: 8000 Square Meters -
25/25KN/m Biaxial Geogrids for RoadbedUS$ 0.3 - 1.6MOQ: 2000 Square Meters
-
2016 Hot Sale Polyester Geogrid--PET( TGSG3030-120120)US$ 0.5 - 1.5MOQ: 5000 Square Meters
-
Plastic-steel Welding GeogridUS$ 1 - 5MOQ: 5000 Square Meters
-
CE Hdpe GeonetUS$ 1.78 - 5.8MOQ: 5000 Square Meters
APPLICATIONS OF GEONET

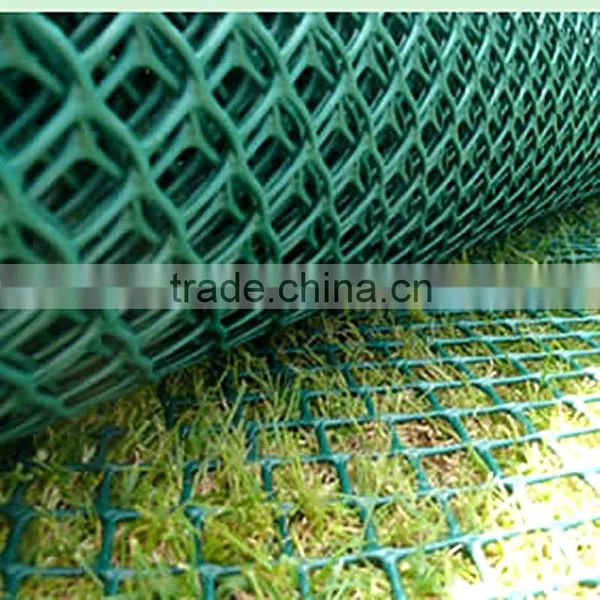

Geonet can be used in the soft soil stabilization, base reinforcement, embankments over soft soils, seacoast slope protection and reservoir bottom reinforcement, etc.
It prevents the slope rock from falling down ,which avoids the hurt to the human beings and the vehicle on the road; It prevents the road dregs packed by geonet from being washed away ,avoids the roadbed distortion and improves the stability of the roadbed; laying the geonet reinforces the road surface ,avoids development of the reflection crack. As reinforcing material of filling soil in retaining walls, it disperses the earth body stress and restricts the side-displacement. The stone cage, made of geonet, can prevent erosion ,collapsing and lost of water and soil when being used in dyke and rock slope protection.
|
Geonet technical datas
|
specs index |
CE121 |
CE131 |
CE141 |
CE151 |
CE153 |
CE161 |
CE181 |
CE191 |
Width (m) |
2.5 |
2.5 |
2.5 |
2.5 |
1.0 |
2.5 |
2.5 |
1.0 |
Mesh size (mm) |
(8x6)±2 |
(27x27)±3 |
(60x60)±5 |
(74x74)±5 |
(50x50)±5 |
(16x16)±1 |
(90x90)±5 |
(105x105)±5 |
Thickness (mm) |
3.3 |
5.2 |
5.5 |
5.9 |
5.9 |
4.8 |
7.2 |
7.2 |
|
Ultimate tensile strength (KN/m) |
≥6.0 |
≥5.6 |
≥6.0 |
≥4.8 |
≥4.2 |
≥5.4 |
≥5.7 |
≥5.8 |
Roll length (m) |
40 or as the customers’ request |
|||||||
