LINKJOIN MATS-2100RMT Multipole magnetic measuring device magnet analyzer Magnetic field tracer
Introduction

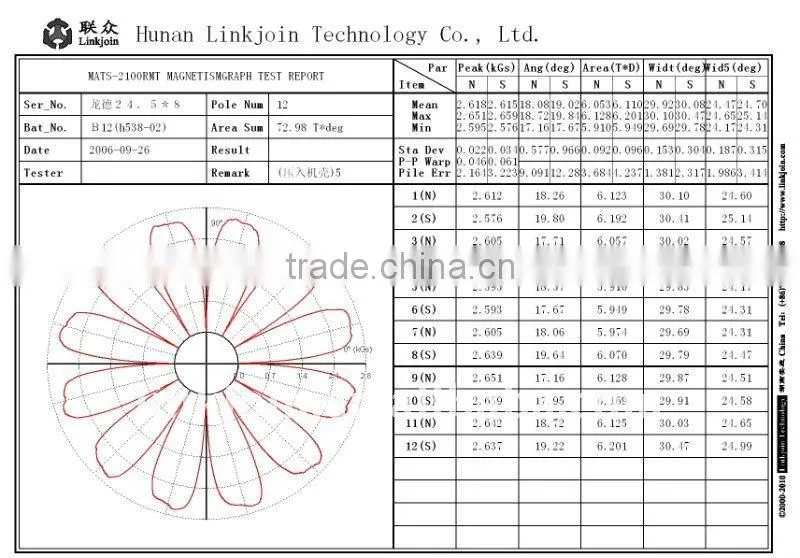

Magnet Analyzer - Model MATS-2100RMT is mainly used in measuring the distribution of surface magnetic field of multipolar loop, including the peak value, angle, area, width and half height of each magnetic pole. Judge the numbers of poles of the magnetic loop and polarity of magnetic pole automatically and will have a statistical analysis on the measuring result. It can calculate maximum, minimum, mean value and standard deviation, etc. It also can draw X-Y graph and polar coordinate graph.

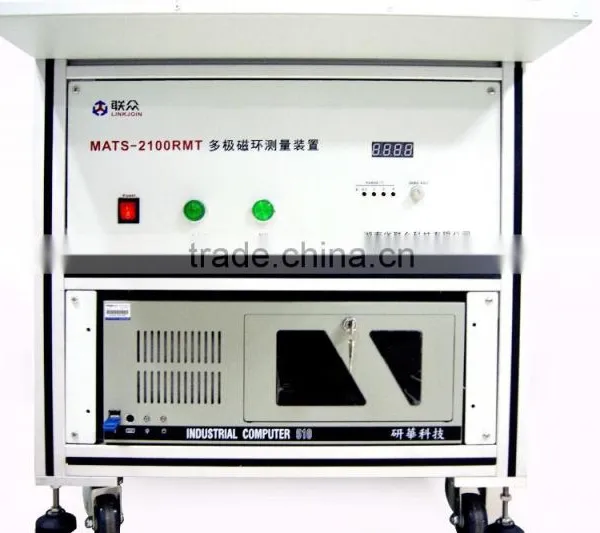

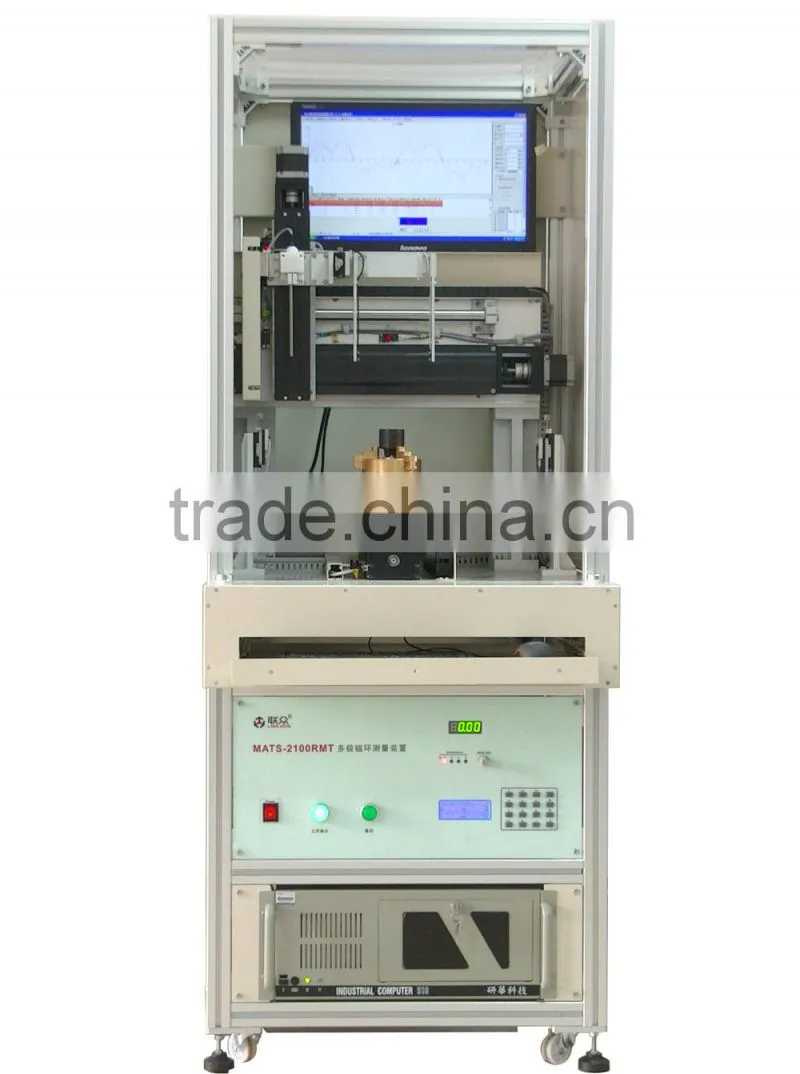

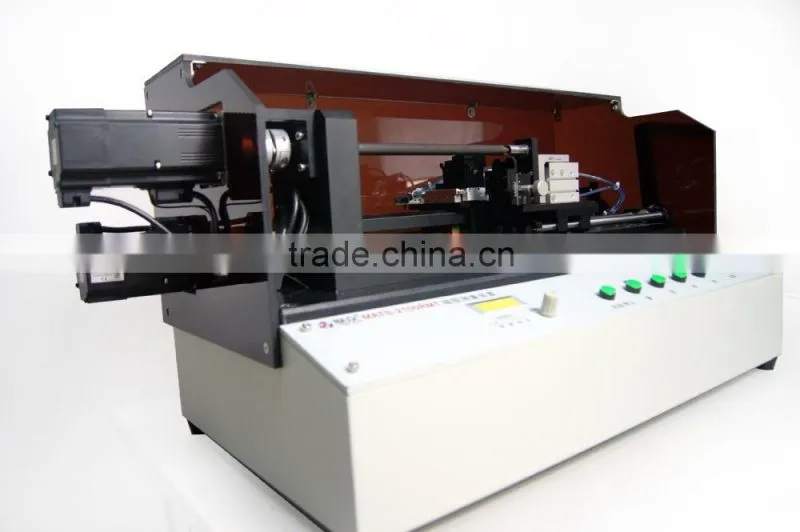

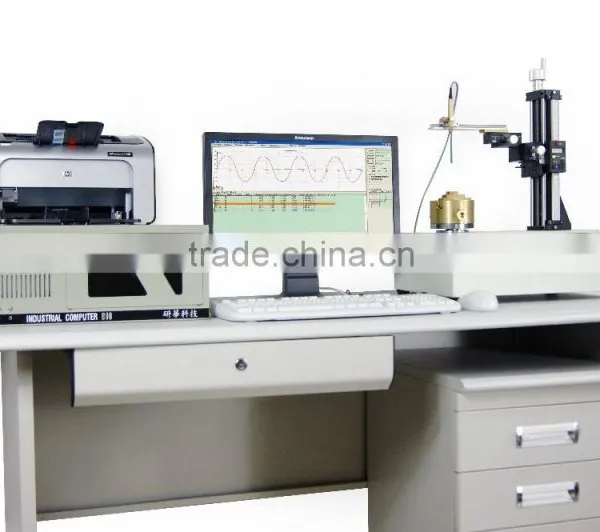

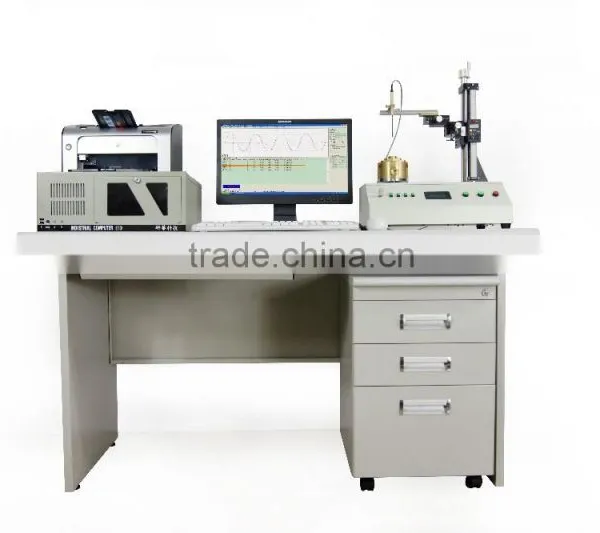

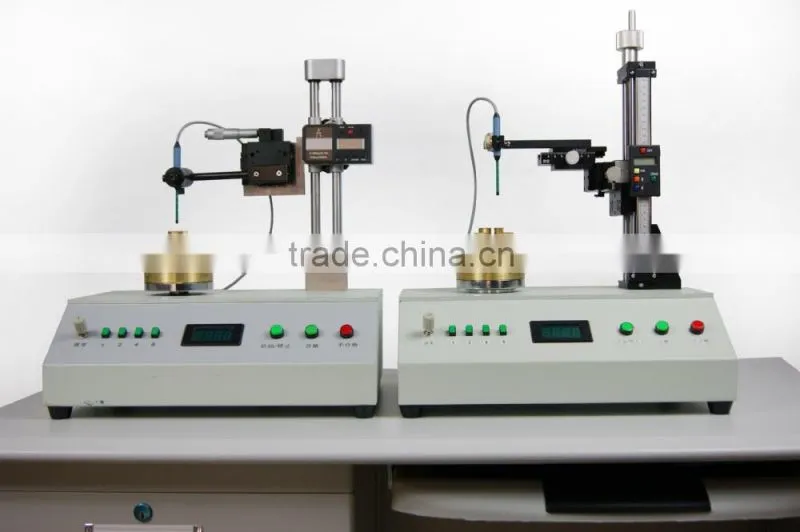

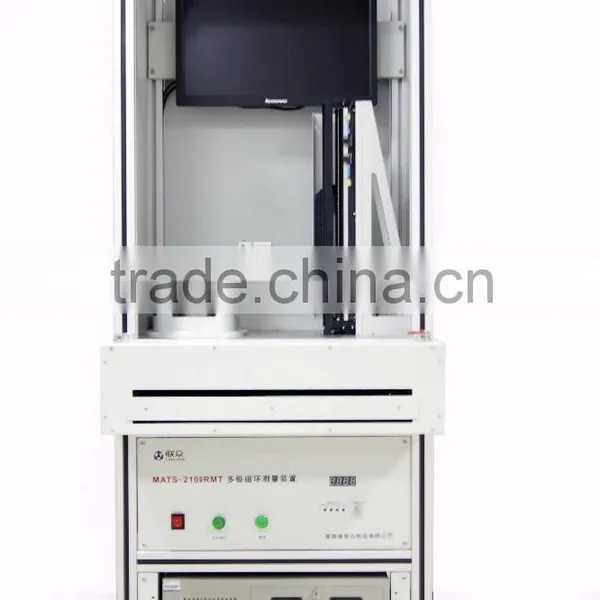

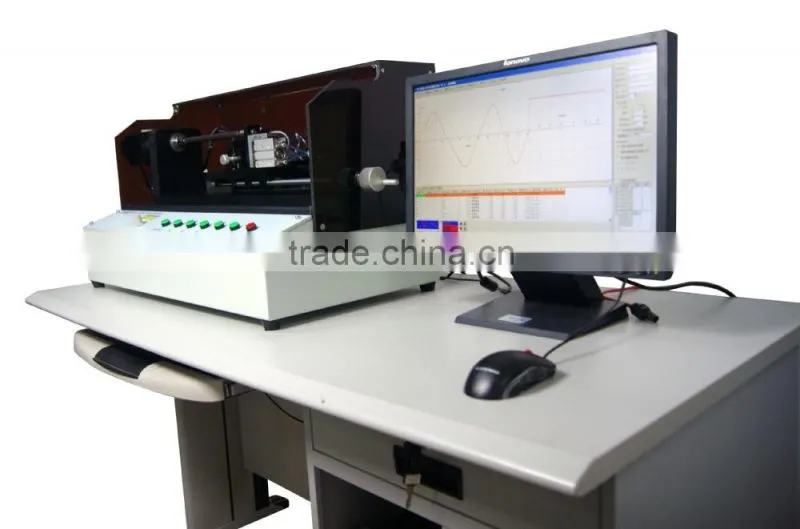

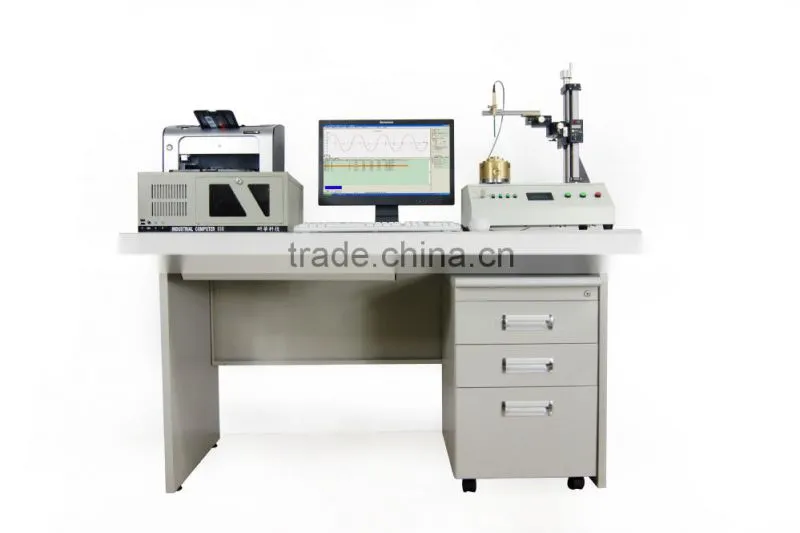

According to the request of the products,customers can customize various test platform: Universal test platform of magnetic ring (Left picture), magnetic ring test platform (Simple type), duplicator of magnetic roller test platform (Manual probe).
General Features

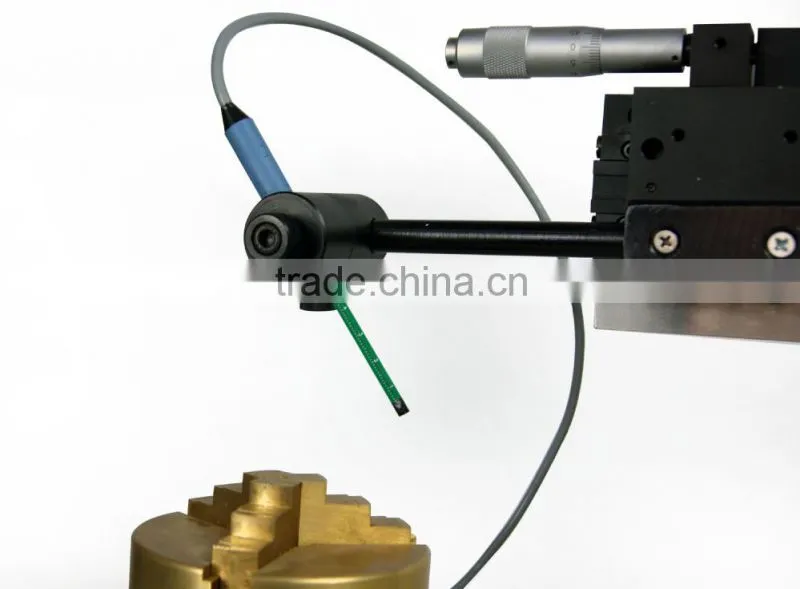

·Adopt transverse probe to measure the inner and outer face of the multipole toroidal magnetic core.
·Adopt vertical probe to measure the end plane.

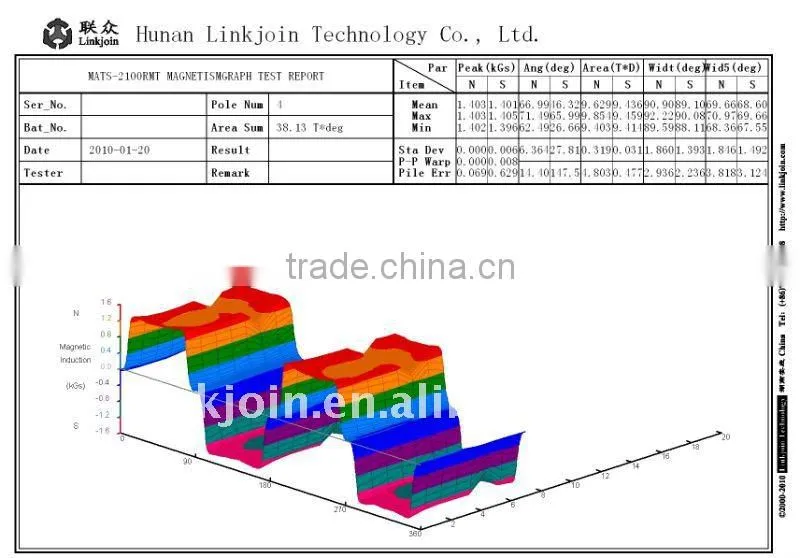

Auto measure the distribution curve of magnetic field of the X-Y coordinate and the polar coordinate of various type toroidal magnetic core.
·Auto determinate the number of poles and the polarity.

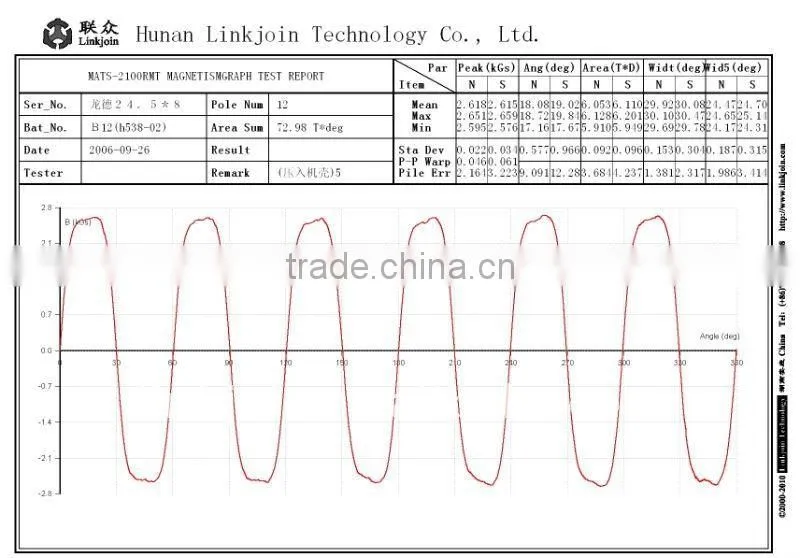

·The measuring result include the peak value, angle, area, width and half height of each magnetic pole.·The measuring result include the maximum, minimum, mean valve and standard deviation of every parameter.
·X-Y coordinate curve can zoom freely and dynamic trace and display the coordinate of every dot.

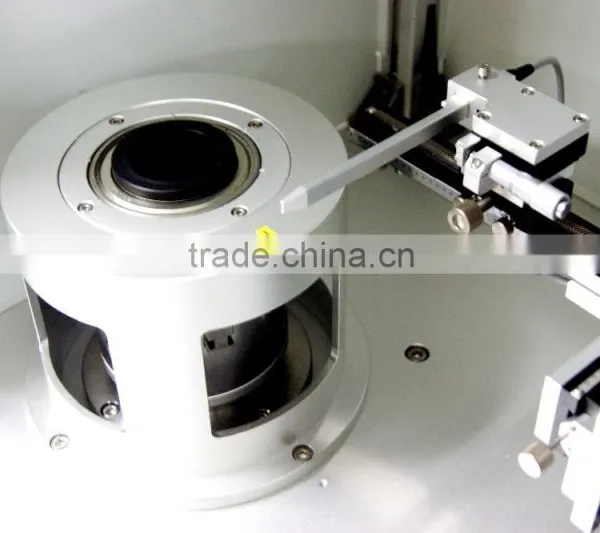

·Adopt the hand wheel and screw thread micrometer to adjust the location of the testing probe in X, Y, Z direction by manual drive.
·The angle of the spin platform can adjust freely, indicated by the dial.
·Testing software can run into the Windows 9X/me/2000/XP, use Chinese-English language, easy to operate.
·Support various type of ink jet printer or laser printer, permit to add any symbol or name of any user in the measuring result.
·The measuring result display in Chinese and English language format
.·The measuring result can change to graph files.
·Send color measuring result by E-mail.
·Output of measuring result in data bases allowing statistical treatments in program like EXCEL.
System Specifications
Inner ring measuring range |
Φ 5 mm ~ Φ 76 mm (> Φ 76 mm; choose turn joint, max.: Φ 250 mm) |
Outer ring measuring range |
Φ 5 mm ~ Φ 76 mm (> Φ 76 mm; choose turn joint, max.: Φ 250 mm) |
X axis stroke |
125 mm (adjust roughly) + 25 mm (adjust subtly) |
Y axis stroke |
25 mm (adjust subtly) |
Z axis stroke |
125 mm (adjust by hand wheel) |
Precision of magnetic field |
0.5% (full range) |
Stepping angle resolution |
0.01 ° (max.: 0.00015625 °) |
XY axis scale resolution |
0.01 mm |
Z axis scale resolution |
0.1 mm |
Instrument Specifications
Stepping electrical machine controller |
|
Precision electro-spin platform |
Power supply: 10 V DC ~ 40 V DC |
Table-board diameter: 100 mm |
|
Digital Gaussmeter |
A/D Sampling and motion control card |
|
|
|
A/D transfer: 12 bits, 32 channels |
HUNAN LINKJOIN TECHNOLOGY CO., LTD. warrants each instrument of its manufacture to be free from defects in material and workmanship. Our obligation under this warranty is limited to servicing or adjusting any instrument returned to our factory for that purpose. The warranty period is 18 months. On returning the equipment under warranty, the buyer bears the costs for the shipment to LINKJOIN; LINKJOIN bears the costs for returning the device to the buyer. However, the buyer bears all the costs for shipment, taxes and duties, if the device is returned to LINKJOIN from abroad.
The warranty period begins on the date of delivery of the product or later on the date of installation of the product if the product is installed by LINKJOIN, the warranty period begins on the 31st day after delivery, provided that if you schedule or delay the LINKJOIN installation for more than 30 days after delivery.
LINKJOIN warrants the product only if it has been sold by an authorized LINKJOIN employee, sales representative, dealer or LINKJOIN headquarter.
The warranty period does not apply to defects of product result from improper or inadequate maintenance, repair or calibration;unauthorized modification or misuse; improper site preparation or maintenance. Caution: the hall probe is easy to damage; it's not in the warranty scope list.
1. 100% Manufacture
Both our factory and company are founded in Loudi, Hunan Province. We are specialized in manufacture and
sales of magnetic measurement instruments. All the products are made by our own factory. So our price is
competitive.
2. Quality control
From the material to the final product. All the components together with production procedure are inspected
and controlled. We ensure the products have been fully inspected by our QC one by one before shipment.
3. Reliable after sales service
Free training for the operation of equipment in our company, which is provided by our professional training
department.
We provide 18months warranty for the maintenance without charges for components change or repairing.
(except for fragile parts) . And we are responsible for lifelong repair, and charge appropriately for repair
service out of warranty period.
Q1: What are the terms of payments?
A1: We accept T/T, Western Union, Paypal, and cash.
Q2: How long it will take to delivery the goods?
A2: If we have the goods in stock, we will delivery them within3 working days after we get your payment. If we
do not have in stock, we will delivery them before the deadline which we both parties agreed on.
Q3: What kind of package you offer?
A3: We pack the goods by the export box,fill with foam to make sure the goods in good condition for storage
and shipment.
Q4: What kind of shipment ways are available?
A4: By sea to your nearest port.
By air to your nearest airport.
By express(DHL, UPS, FedEx, TNT, EMS) to your door.
If customers have their own express account number, transportation fee paid by such accounts are also
welcome.We will provide you a tracking No. after we ship the goods, so that you can track the goods
conveniently.
