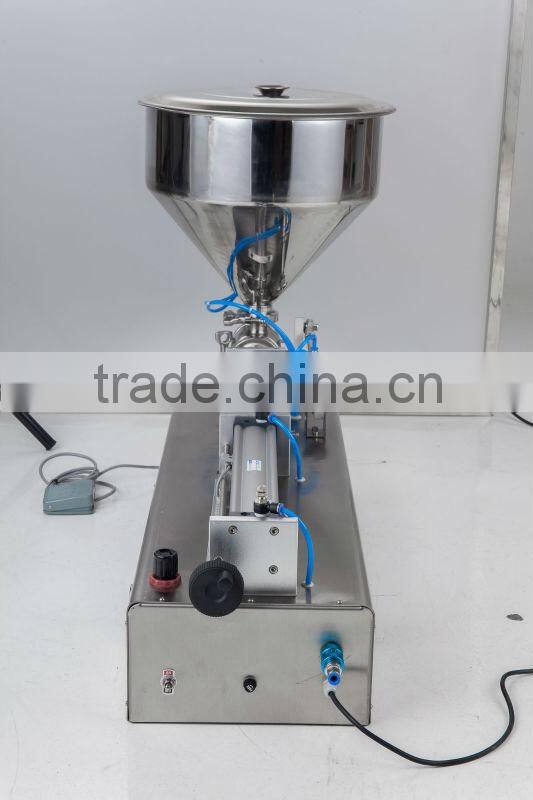

Table-top paste filling machine with one nozzles
What Features of our paste filling machine?
1. CE Certifcation
2. High Filling Precision
3. Easy Operation
4. All stainless steel body
What Specifications of our paste filling machine?
Descriptions:
It used the piston measuring mode and compressed air as the power to work without any power supply and can work at an explosive or combustible place by just stepping on the pedal. The filling range can be adjusted lightly, safe, reliable and easily used. All the portions contacted with the material are made of stainless steel and PTFE.
Introduction:
1. The machine is semi-auto piston type filling machine, working under the state without electricity, it is easy to operate.
2. This machine is reasonable in design, smart in model, the pneumatic part adopts the pneumatic components of Taiwan.
3. The part conacting the material is made of stainless steel 304 and PTFE
4. With adjustment handle of filling volume, the filling speed cna be adjusted at will, with high filling accuracy.

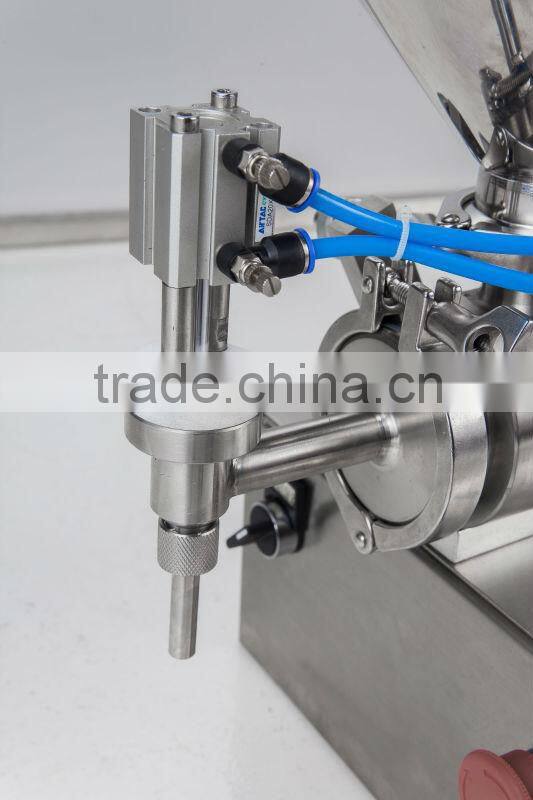

5. Filling heads adopts anti-leakage, anti-pull and with lifting filling device.
Working Process:
Filling object: Paste
Pre-work: Get the filling nozzle and objects done and set up the filling volume and filling speed.
Running: Press the foot pedal
Main data:
| Model: | G1WTD |
| Voltage: | 110V/220V, 50HZ/60HZ |
| Filling range: | 5-100ml,10-280ml,20-500ml,100-1000ml,500-2800ml,800-5000ml |
| Filling speed: | 5-25bottles/min |
| Filling precision: | ≤± 1% |
| Air pressure: | 0.4-0.6 Mpa |
| Dimension: | 1330*350*330mm |
What Applications of our liquid filling machine?
1.Suit for filling water, juice, drink
2. Suit for Food Areas, Drink Areas, Healthy Areas and etc.

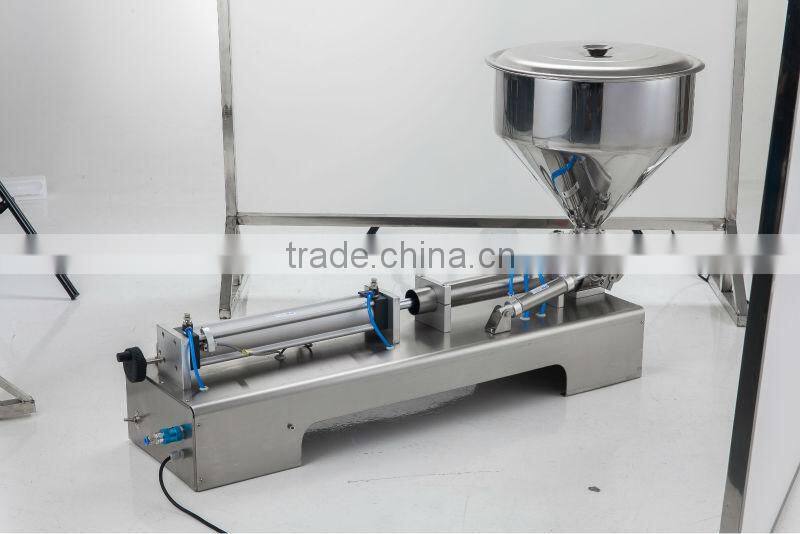

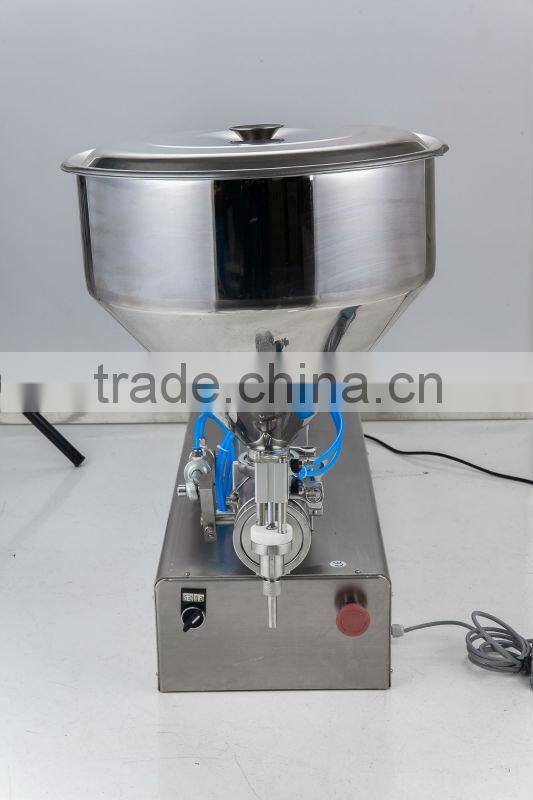

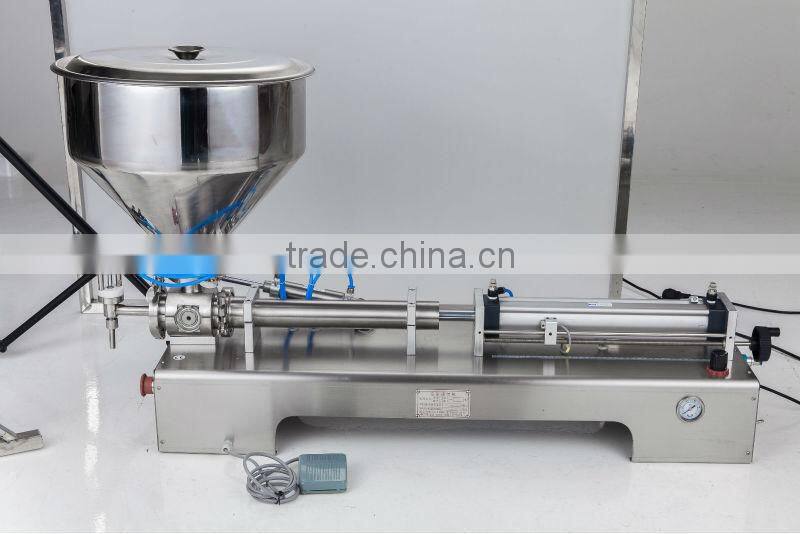

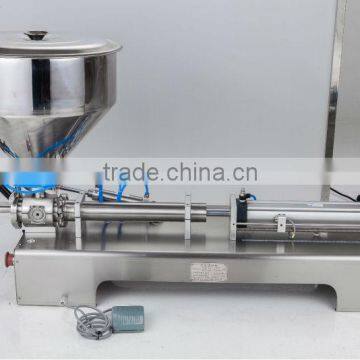

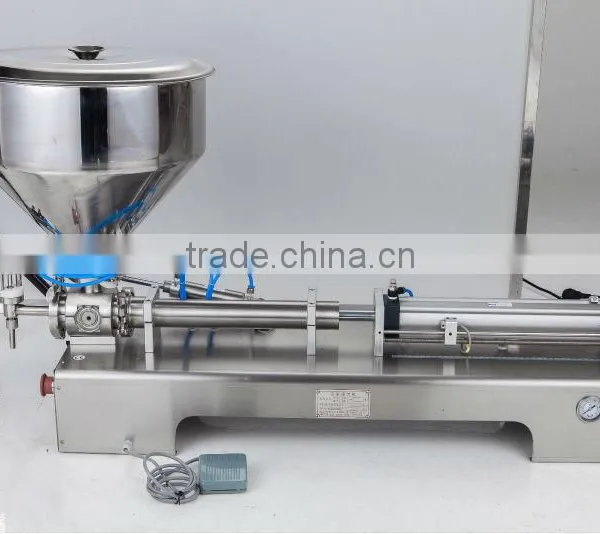

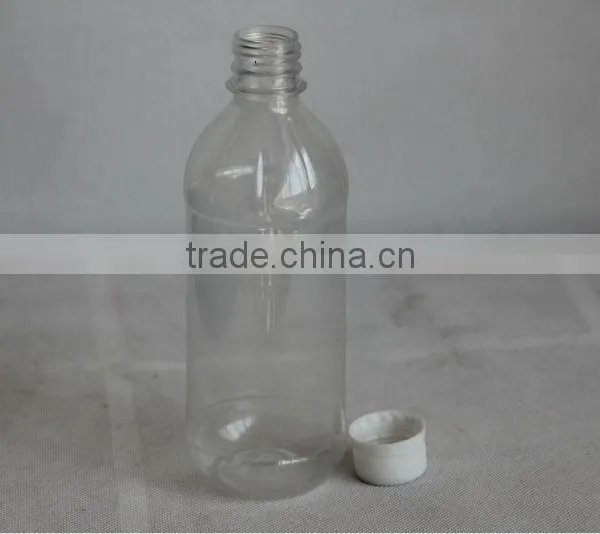

Product Photos:
Packing Details:
Our Certifications:
Company View:
After-sale service:
1.Installation & adjustment
After the equipment are arrived at the customer’s site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians’ guidance. Costs of the staff are decided at last.
2. Training
We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of
operation and maintenance proficiently, and deal with the general troubles in time.We will appoint qualified technical staff for the guidance.
3. Quality assurance
We guarantee the line achieve product technical performance indicators within 5days after feeding operation through the correct guidance of the installation and
commissioning.
We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc.
that all belong to our responsibility.
The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass theinspection book to the legal department to claim for compensation to our company within goods warranty period.
4. Warranty
Offer 12 months maintenance period to the problem that caused by our design,manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
Payment Terms:
- Payment: T/T, Western Union, MoneyGram,PayPal; 50% deposits; 50% balance before shipping.
- Delivery Time: About 30 working days after payment is received.
Why Choose us?
- We are China Leading Packing Machines Manufacturer.
- Alibaba Assessed Gold Supplier.
- Our Trade Assurance for customer is $61000.
- Inspected by the Inspection Institution of SGS Certification.
- 100% QC inspection Before Shipment.
- Best Quality & Best Service with Competitive price.
How to Contact Us?
Trademanager ID: cn1001880844
QQ: 2853621679
Tel: 0086-577-86009688 13353337645
Fax: 0086-577-89736262
