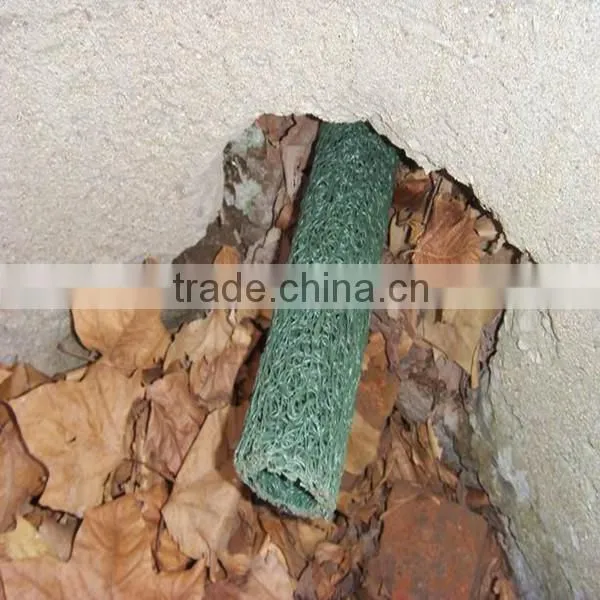

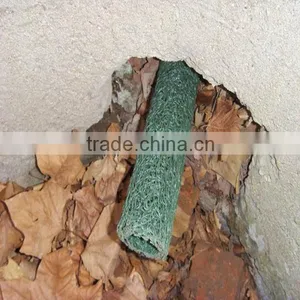

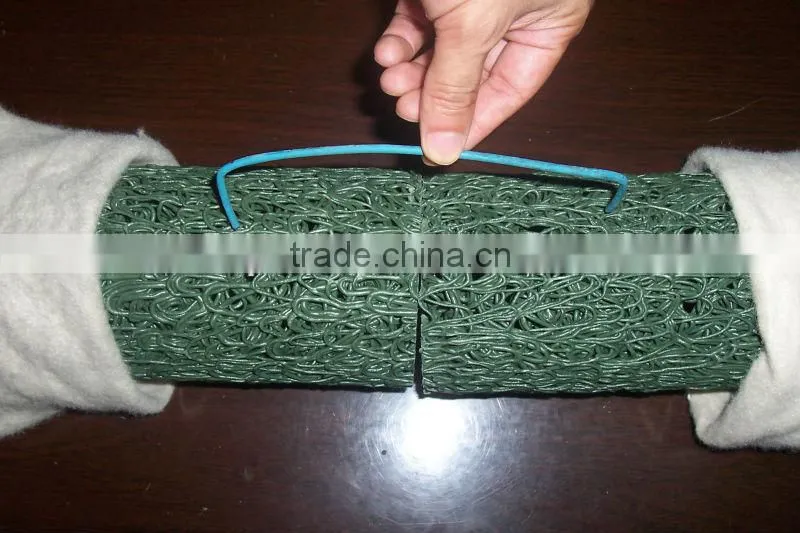

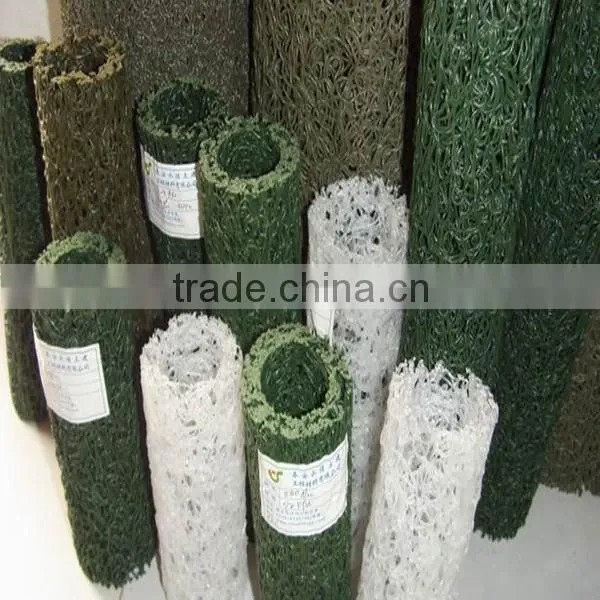

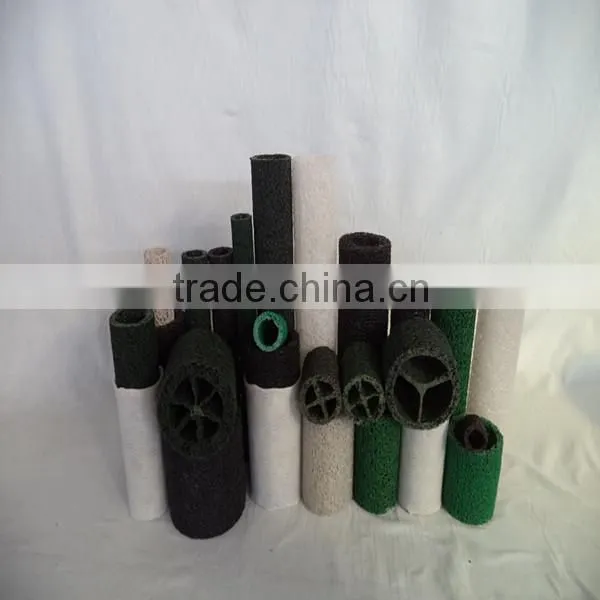

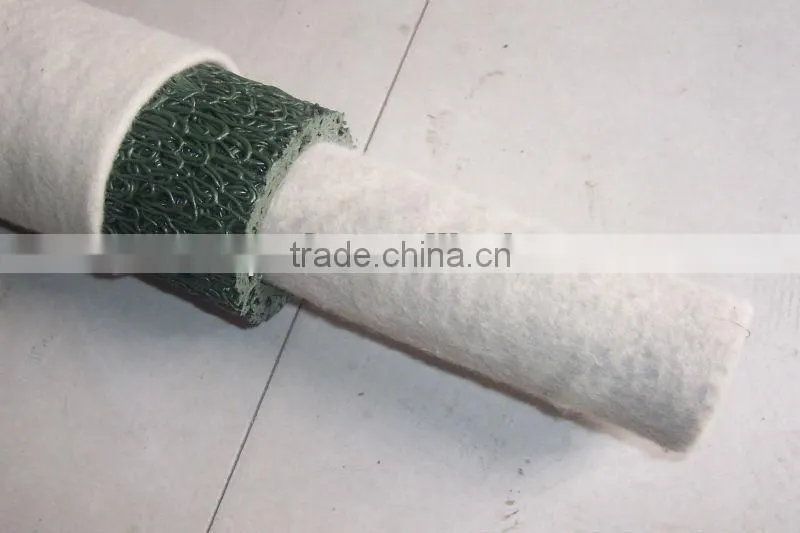

Geocomposite Drain Pipe is made of plastic core and outer filtering cloth. In the state of hot melting, it is formed into three-D network structure. It has two shapes: rectangle and round. This kind of pipe has some advantages: good drainage, high pressure resistance, light weight, so it is very popular in some projects.
Application of Geocomposite Drain Pipe:
1) Highway and roadway subgrade
2) Retaining wall
3) Landfill
4) Roof garden
5) Building foundation
6) Underground irrigation
Technical Data
Art No. |
PLD0201 |
PLD0202 |
PLD0203 |
PLD0204 |
PLD0205 |
PLD0206 |
PLD0207 |
PLD0208 |
PLD0209 |
|
Item |
Square shape |
Circular shape |
||||||||
Type |
YA7030 |
YA1435 |
YA1550 |
Y1235 |
YB60 |
YB80 |
YB100 |
YB150 |
YB200 |
|
Outer Size(mm)≥ |
70x30 |
140x35 |
150x50 |
120x35 |
φ60 |
φ80 |
φ100 |
φ150 |
φ200 |
|
Cannular Size≥ |
40x10 |
40x10x2 |
40x20x2 |
40x10x2 |
φ25 |
φ45 |
φ55 |
φ80 |
φ120 |
|
Weight≥ |
350 |
650 |
750 |
600 |
400 |
750 |
1000 |
1800 |
2900 |
|
Gap rate≥ |
82 |
82 |
85 |
82 |
82 |
82 |
84 |
85 |
85 |
|
|
Pressure Resistance |
Flat rate 5% |
60 |
82 |
50 |
70 |
80 |
85 |
80 |
40 |
50 |
|
Flat rate 10% |
110 |
120 |
70 |
110 |
160 |
170 |
140 |
70 |
70 |
|
|
Flat rate 15% |
150 |
160 |
125 |
130 |
200 |
220 |
180 |
100 |
90 |
|
|
Flat rate 20% |
190 |
190 |
160 |
180 |
250 |
280 |
220 |
125 |
120 |
|
