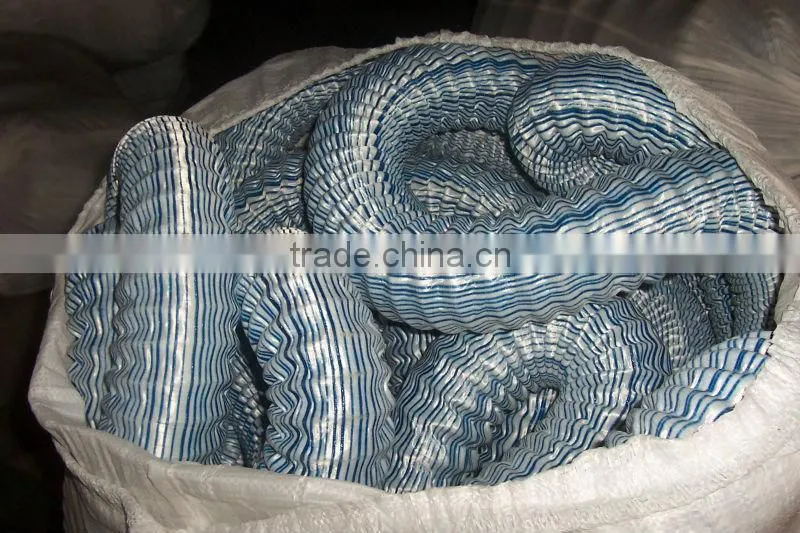

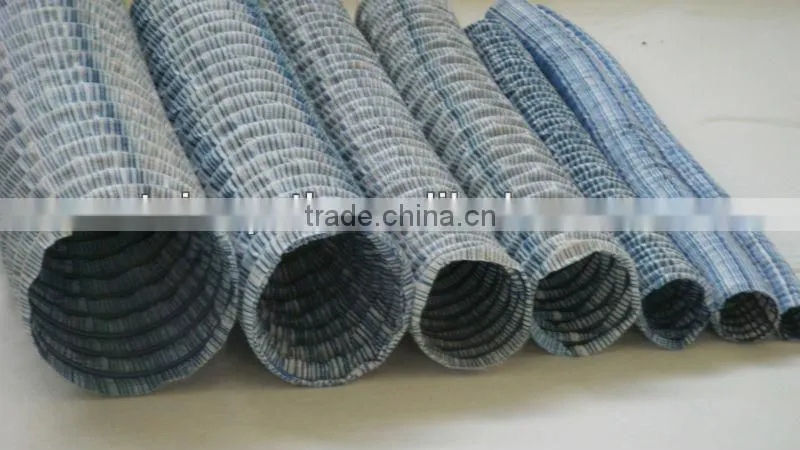

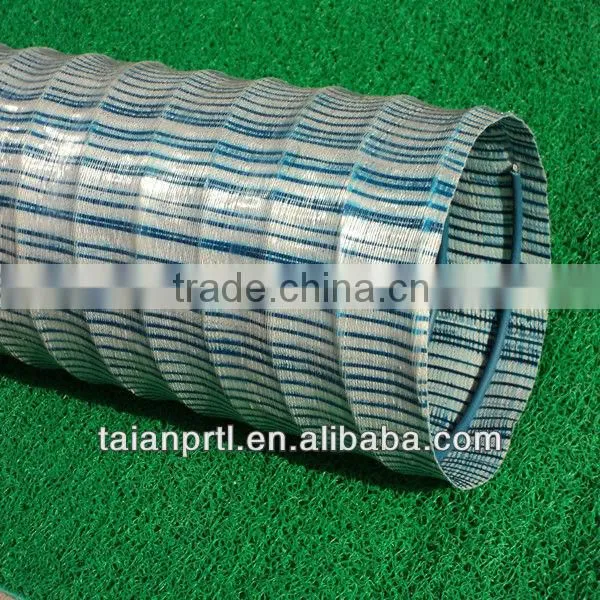

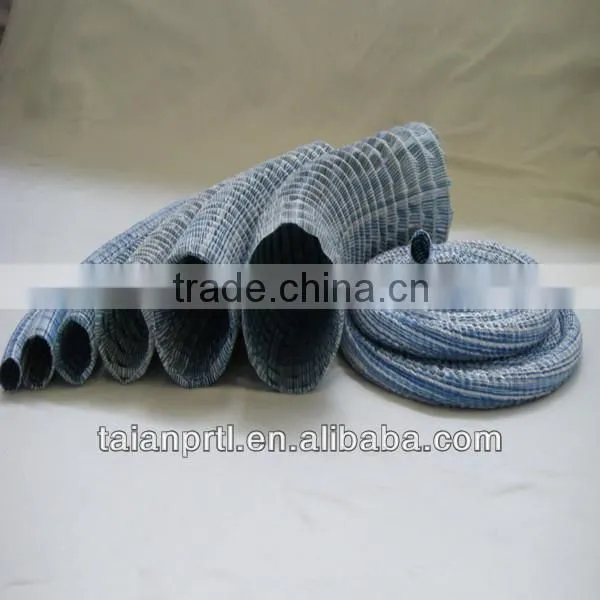

Steel-plastic composite flexible permeable hose
extendable
diameter:50-300mm
length:20-200m
Advantages:
1, Due to the different pressure underground,the water always flow from the high pressure area to low pressure area where drain hose been buried.the underground water,surrounding the drain hose,will be continuous movement will lower the level of underground water effectively without any soil collapse and chemical contamination..
2,Drain hose is able to lower the level of underground water,drain the surface and penetrating water out perforation area will decrease the soft soil and avoid soil collapse.
3, The aenetrable area of conventional HDPE is limited to the perforated area only,but raising up the perforation area will decrease the resistance of pipe against pressure.Pretty lion’s soft drain hose provide more advantages in both penetration and pressure resistance than HDPE and other perforated pipes.
4,Prettylion drain hose contains two parts:
Hose wall:it provide superior filtration,drainage and more penetration area.

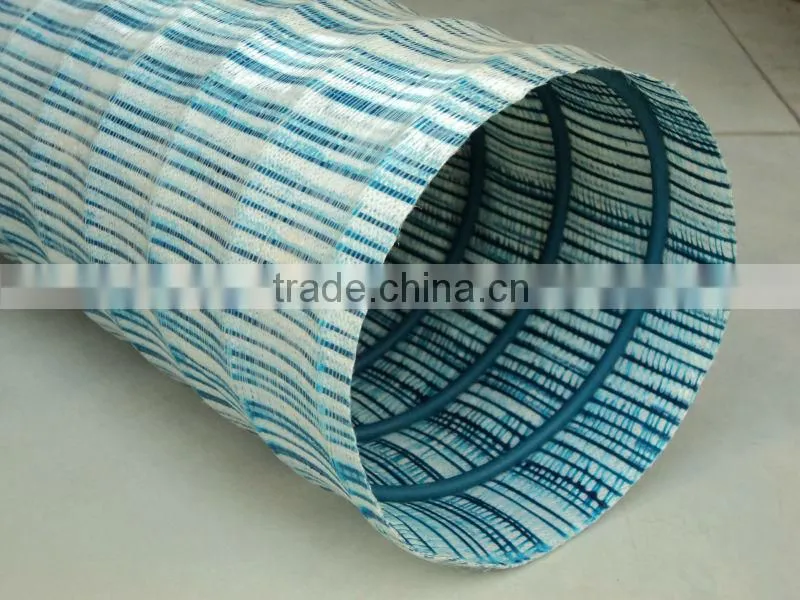

Support:hose is suported by high tenacity steel wire to keep drainage effective.
Area of usage
A:for Field Drainage,Golf Course,Landscape to prevent ponding
B:for Tunnel,Concealed Perimeter Drain
C:for Hillside Drainage and Slope Protection
D:for Garbage Treatment Site
E:for Coal Storage Areas
F:for Retaining Walls in water logged areas
G:for Soil Stabilization and Land Reclamation

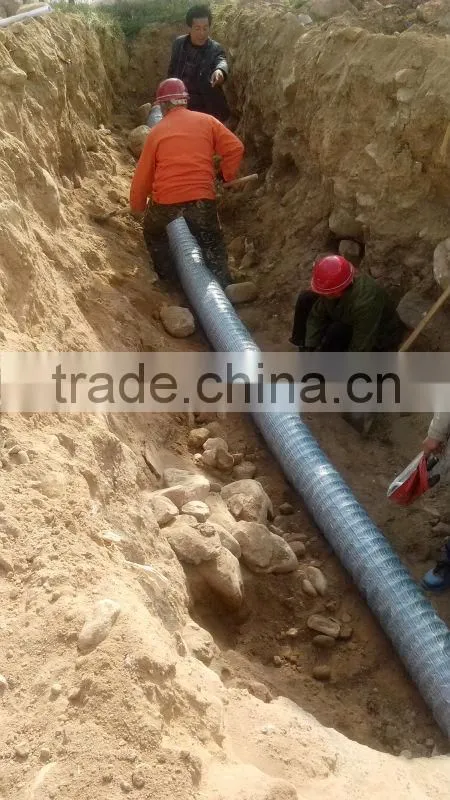

Methods of installation
Flexibility,lightweight and easy to install cost effective.
Geotextiles is not required, for wrap-around the pipes.
No fittings is required for jointings
The hose can be installed horizontally,vertically,diagonally or in herringbone design or 90°any other way the client wishes to install
Flexible permeable hose technical datas
Item |
φ50 |
φ80 |
φ100 |
φ150 |
φ200 |
φ250 |
φ300 |
|
Filter cloth |
MD tensile strength kN/5cm≥ |
1.0 |
||||||
MD elongation %≥ |
12 |
|||||||
CD tensile strength kN/5cm≥ |
0.8 |
|||||||
CD elongation %≥ |
12 |
|||||||
bursting strength (kN)≥ |
1.1 |
|||||||
osmotic coefficient (cm/s)≥ |
0.1 |
|||||||
Effective opening size O95(mm)≥ |
0.06-0.25 |
|||||||
Flattening |
1%(N/m)≥ |
400 |
720 |
1600 |
3120 |
4000 |
4800 |
5600 |
2%(N/m)≥ |
720 |
1600 |
3120 |
4000 |
4800 |
5600 |
6400 |
|
3%(N/m)≥ |
1480 |
3120 |
4800 |
6400 |
6800 |
7200 |
7600 |
|
4%(N/m)≥ |
2640 |
4800 |
6000 |
7200 |
8400 |
8800 |
9600 |
|
5%(N/m)≥ |
4400 |
6000 |
7200 |
8000 |
9200 |
10400 |
12000 |
|
