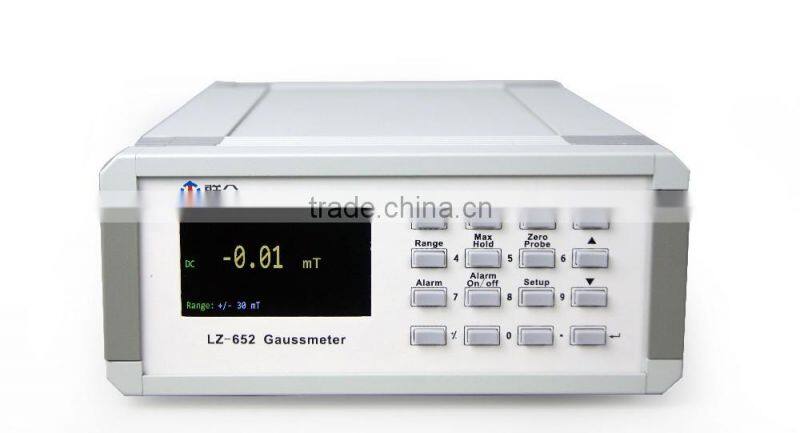

LINKJOIN LZ-652 Gauss Meter Desk Type Gaussmeter Telsa Meter Gaussmeter Manufacture Trade Assurance Supplier

LINKJOIN LZ-652 Gauss meter desk type gaussmeter telsa meter gaussmeter manufacture trade assurance supplier

Brief introduction

LZ652 is a precision and intelligent Gauss meter. It designed by adopting  the newest microprocessor and excellent operational amplifier, combine with advanced analog electronic technology.

 LZ652 is mainly used is mainly used for measuring DC (static) magnetic field, it is suitable for fast measurement on production line, and has the function of high liability and anti-interface.

² 16-key keyboard,  with multiplexing function

² DC(static) magnetic field measurement

² Embedded microcomputer control, auto or manual range

² Displayed resolution 4¾ , 272*480 high resolution TFT screen

² Units: Gs,T,Oe, kA/m

² Auto recognize standard probes

² RS-232, reply output ports( suitable for PLC)

² Remote control by computer

² Analog signal output

² Peak value hold

² High and low threshold alarm, support local and remote control

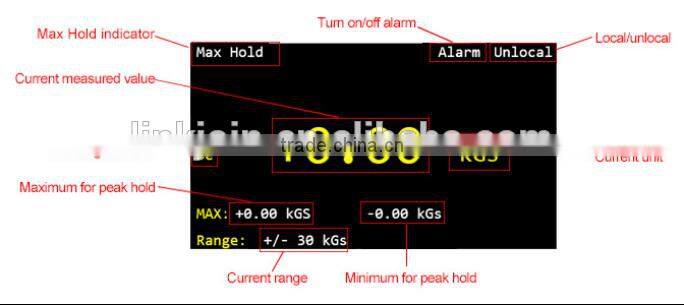

<+0.00 > : the current measured value, display 4 digits, 1 sign bit, 2 decimals.

<kGS> : unit of measured value, it can be set by the “Unit” key.

<Unlocal>: R means that it’s in the remote control mode at the moment, without it means local control mode; in a remote control mode, only “Local” key is valid in the keyboard, other keys are locked.

<MAX>: Current peak hold max/min.

<+0.00 kGs>: Under peak hold mode, it displays on the screen and means the maximum value of peak hold.

<-0.00 kGs>: Under peak hold mode, it displays on the screen and means the minimum value of peak hold.

<DC>: shows the current mode is DC mode.

<Range:>: the current range

<Alarm>: alarm status. If displays means the alarm function started.

<Over Range>: It means the current measured value over the range.

HUNAN LINKJOIN TECHNOLOGY CO., LTD. warrants each instrument of its manufacture to be free from defects in material and workmanship. Our obligation under this warranty is limited to servicing or adjusting any instrument returned to our factory for that purpose. The warranty period is 18 months. On returning the equipment under warranty, the buyer bears the costs for the shipment to LINKJOIN; LINKJOIN bears the costs for returning the device to the buyer. However, the buyer bears all the costs for shipment, taxes and duties, if the device is returned to LINKJOIN from abroad.

The warranty period begins on the date of delivery of the product or later on the date of installation of the product if the product is installed by LINKJOIN, the warranty period begins on the 31st day after delivery, provided that if you schedule or delay the LINKJOIN installation for more than 30 days after delivery.

LINKJOIN warrants the product only if it has been sold by an authorized LINKJOIN employee, sales representative, dealer or LINKJOIN headquarter.

The warranty period does not apply to defects of product result from improper or inadequate maintenance, repair or calibration;unauthorized modification or misuse; improper site preparation or maintenance. Caution: the hall probe is easy to damage; it's not in the warranty scope list.

Exhibition shows

Advantages

1. 100% Manufacture

 Both our factory and company are founded in Loudi, Hunan Province. We are specialized in manufacture and

sales of magnetic measurement instruments. All the products are made by our own factory. So our price is

 competitive.

 2. Quality control

 From the material to the final product. All the components together with production procedure are inspected

 and controlled. We ensure the products have been fully inspected by our QC one by one before shipment.

 3. Reliable after sales service

 Free training for the operation of equipment in our company, which is provided by our professional training

 department.

 We provide 18months warranty for the maintenance without charges for components change or repairing.

 (except for fragile parts) . And we are responsible for lifelong repair, and charge appropriately for repair

 service out of warranty period.

FAQ

Q1: What are the terms of payments?

 A1: We accept T/T, Western Union, Paypal, and cash.

  Q2: How long it will take to delivery the goods?

 A2: If we have the goods in stock, we will delivery them within3 working days after we get your payment. If we

 do not have in stock, we will delivery them before the deadline which we both parties agreed on.

 Q3: What kind of package you offer?

 A3: We pack the goods by the export box,fill with foam to make sure the goods in good condition for storage

 and shipment.

 Q4: What kind of shipment ways are available?

 A4: By sea to your nearest port.

 By air to your nearest airport.

  By express(DHL, UPS, FedEx, TNT, EMS) to your door.

 If customers have their own express account number, transportation fee paid by such accounts are also

 welcome.We will provide you a tracking No. after we ship the goods, so that you can track the goods

 conveniently.
