Specifications
1. PLC control system, touch screen2. Servo motor control
3. Label sensor for normal self-adhesive label
4. Stainless ste

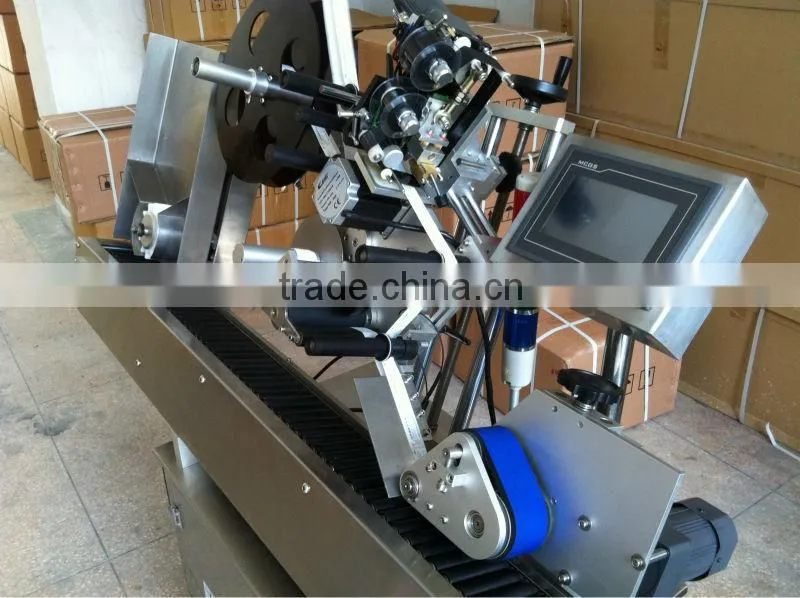

Non-dry glue horizontal labeling machine
Description:
Product Features

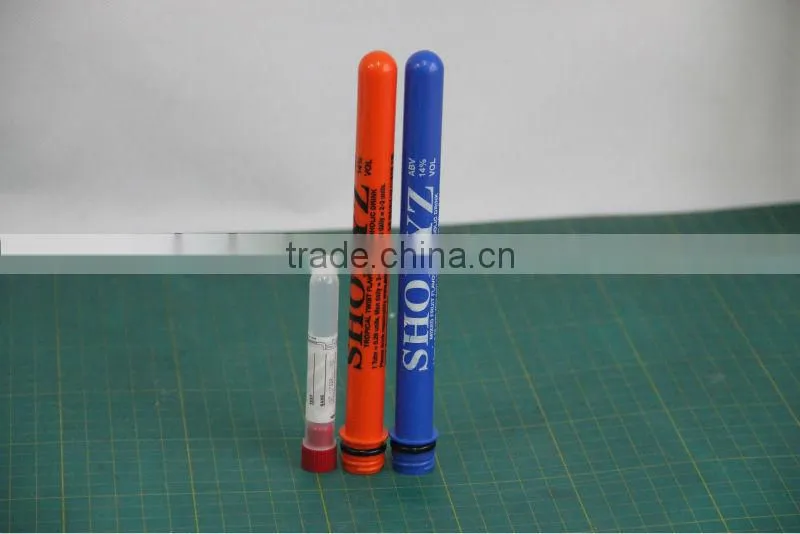

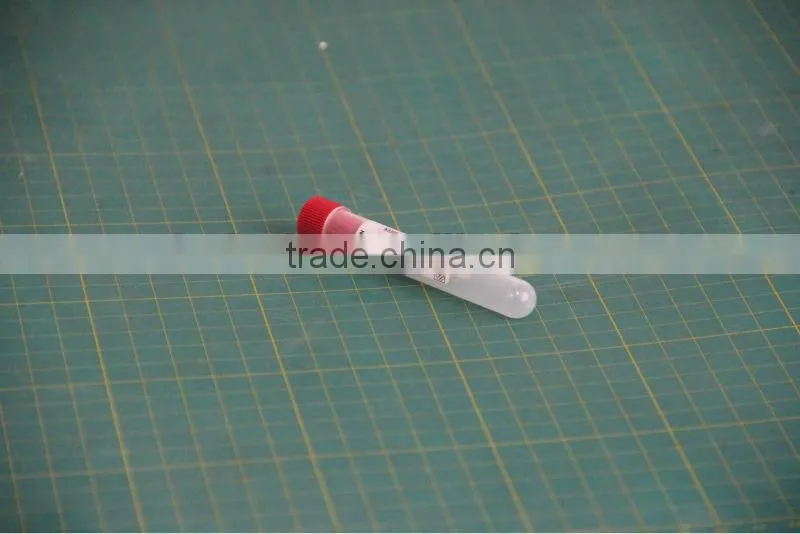

1, this model applies to AMPS bottles, oral liquid, vials, pen tubes, Li can be white, small battery, solid plastic, injection products such as round 2, circle or semi-week labeling labeling is more suitable for small diameter and can not stand round product labeling
Features:
1. With rolling horizontal roller conveyor, automatically correcting the bottle, transport labeling stability. Labeling speed up to 300 bottles / minute, save a lot of manpower and resources.
2. Low rate of broken bottles, application guide wheel technology and flexible sub-bottle label technology, sub-bottle labeling smooth.
3. Labeling excellent quality, with a bypass using standard correction techniques, the label affixed end to end on high coincidence; Rubbing roll-type label, labeling smooth, no wrinkles, no bubbles, raising their quality.
Four. High stability, micro-computer control through the touch screen with Taiwan Willen, import test label sensor composed of senior electrical control systems. 5. Intelligent control and automatic optical tracking, no labeling with nothing.
6. Equipment, mainly stainless steel and high alloy manufacturing, GMP manufacturing practice compliance, firm structure, elegant appearance. 7. This machine is suitable for assembly line and production line can also be stand-alone operation, may need special design products according to customer
Parameter:
Model: MT-300
Labelling speed Max 150pcs/min
Power: About 500W
Labelling Precision: ±1mm
Roll inner diameter: 76 mm
Max roll outer diameter: 300 mm
Bottle diameter: 20-110mm
Bottle height: 25-350mm
Sticker size: L:20-300mm, W:10-90mm
Dimension(L*W*H): 160×60×140cm
Weight: About 150KG

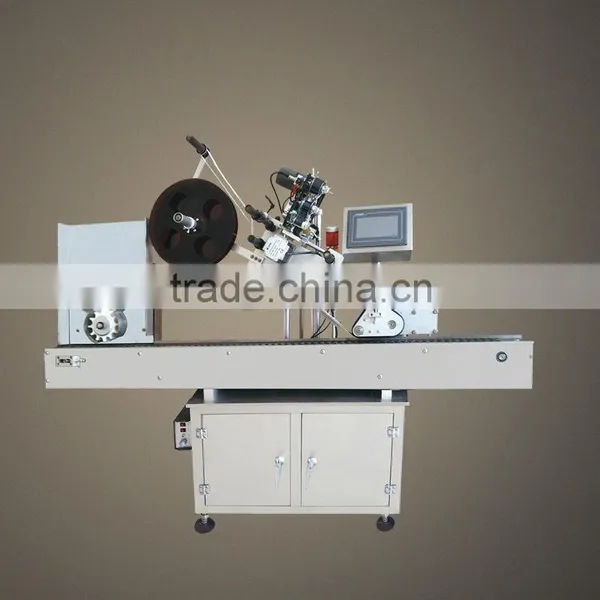

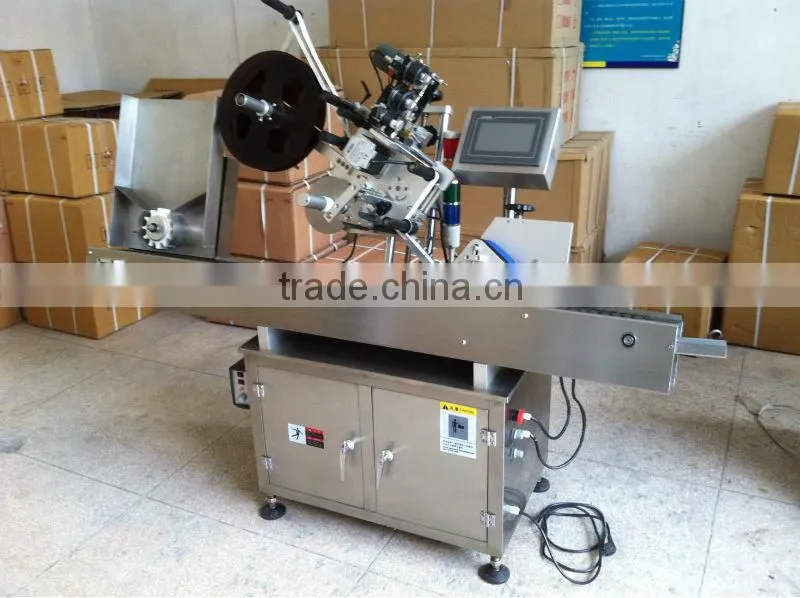

Product picture:
