Specifications
1.PLC control system2. High precision,top quality
3.Easy to operate
4.OEM service offer
automatic soap box sticker plane labelling machine
Description:
The machine are adopted the label way from top to underside and it can label on the flat objects. Checking with magic eye and pursuing with revolving coder to make the speed and deliver of out labels are accurate at the same time,also you can adjust the speed optionally. By the way, it also can label on the seal and sunken part .
Main Character :
1. It can use the label which is made by Chinese material , it reduces many label cost .
2. Operate easily , debug expediently;
3.Have the function of counting;
4. It can use stand-alone or join the production line.
5.Adopt import electric components .
6.Adopt stainless steel and alloy which is dealed with anodic oxidation except the shelf.
Parameter:
Model: MT-220
Labelling speed Max :150pcs/min
Power: About 500W
Labelling Precision: ±1mm
Roll inner diameter: 76 mm
Max roll outer diameter: 300 mm
Bottle diameter: 20-100mm 10-100mm
Bottle height: 30-200mm 25-350mm
Sticker size: L:20-300mm, W:10-150mm
Dimension(L*W*H): 200×110×135cm
Weight: About 150KG

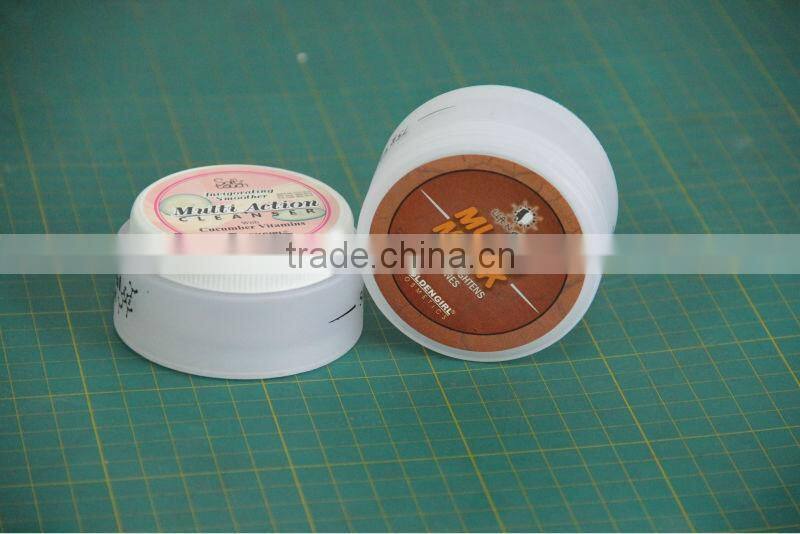

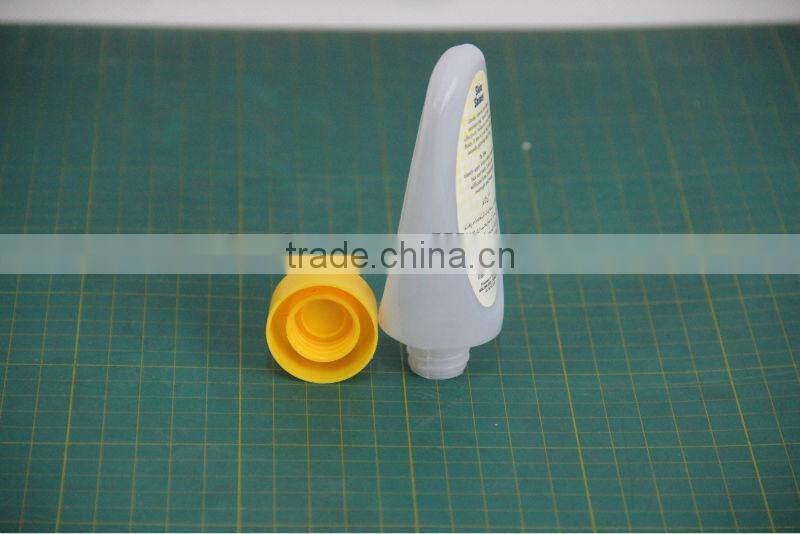

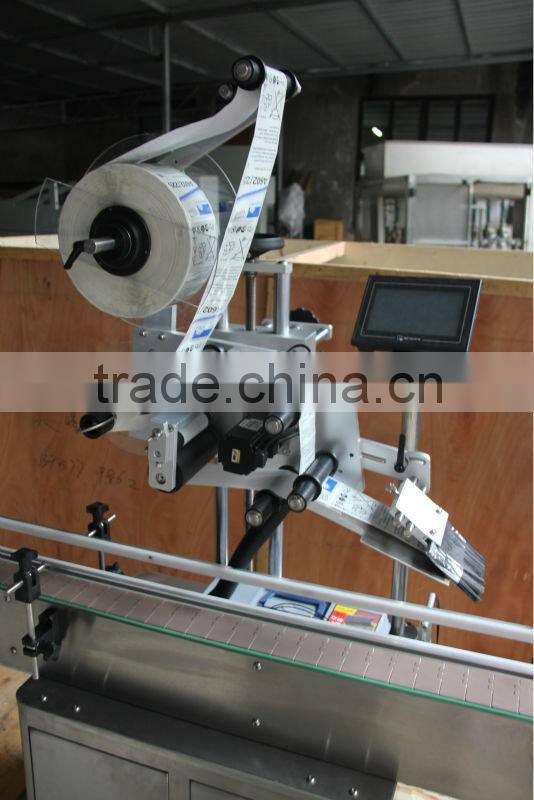

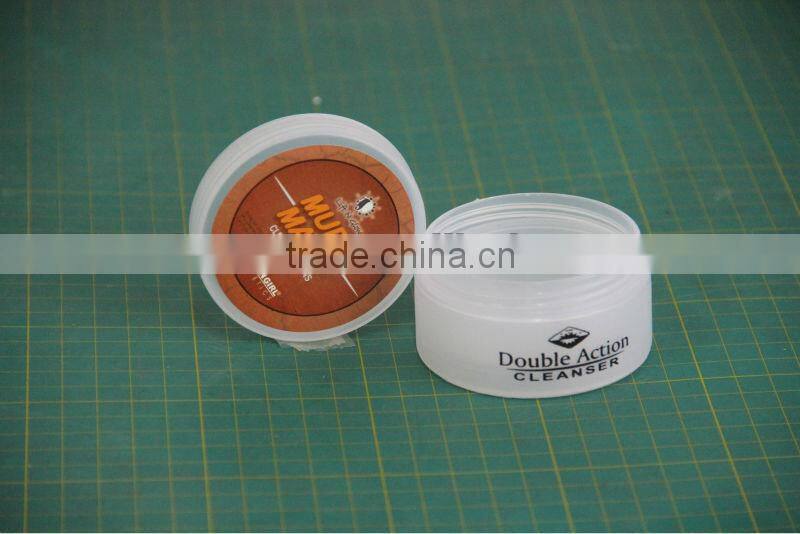

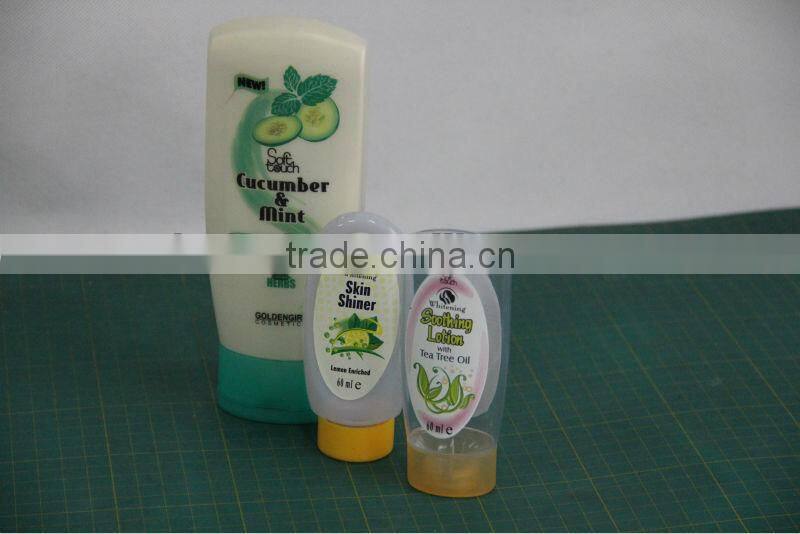

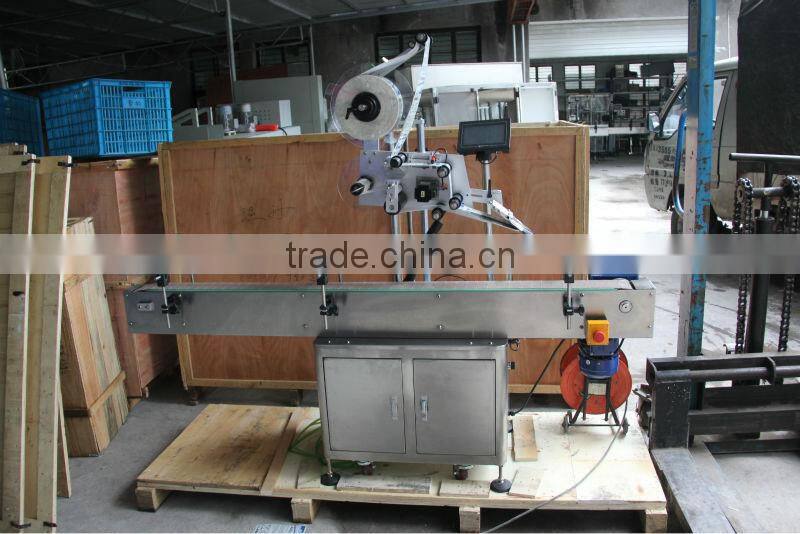

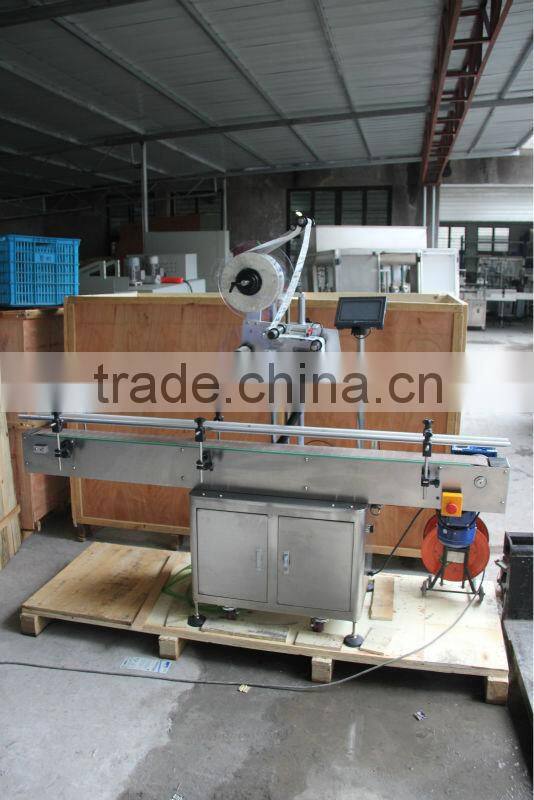

Product picture:
