Help CenterSoft Permeable Tube
Related Products

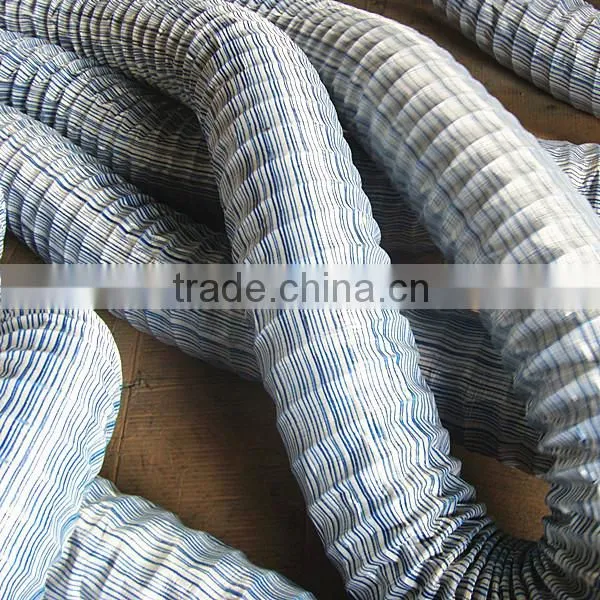

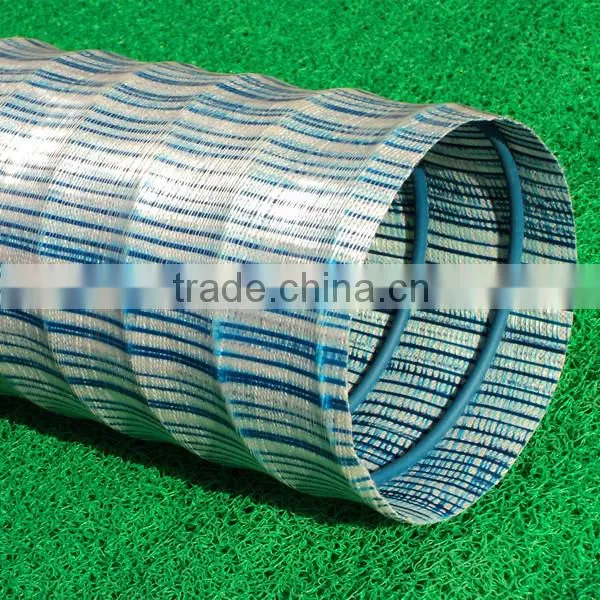

Steel-plastic flexible permeable hose is a new type of pipe used for inverted filtering and drainaging.It is made of steel wire(coated PVC)+PET non-woven cloth+PET filament fiber.Besides,PET non-woven cloth works as a filter to prevent the sand and soil from going into the pipe,thus purifying the water.Terylene threads on the outside surface enables the pipe to have a good sopping capacity and collect the superabundant water in the soil system.It’s mainly used in different kinds of roadbeds,square,ditch,retaining walls,tunnels to drainage.
Hose Specification
Art. No. |
PLD0101 |
PLD0102 |
PLD0103 |
PLD0104 |
PLD0105 |
PLD0106 |
PLD0107 |
|
Item |
φ50 |
φ80 |
φ100 |
φ150 |
φ200 |
φ250 |
φ300 |
|
Wire diametermm |
≥1.6 |
≥12.0 |
≥2.6 |
≥3.5 |
≥4.5 |
≥5.0 |
≥5.5 |
|
|
Distance between wire ring/m |
≥47 |
≥37 |
≥32 |
≥24 |
≥17 |
≥17 |
≥17 |
|
|
Filter cloth |
MD Tensile Strength kN/5cm≥ |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
|
MD elongation % ≥ |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
CD tensile strength kN/5cm≥ |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
CO elongation % ≥ |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
Ball tensile strength kN ≥ |
1.4 |
1.4 |
1.4 |
1.4 |
1.4 |
1.4 |
1.4 |
|
|
Filter coefficient m/s ≥ |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
|
|
Effective aperture mm ≥ |
0.060.25 |
|||||||
More information in our homepage
