Help CenterGeocomposite Drain Pipe
Related Products
Geocomposite Drain Pipe,geocomposite drainl,geotube.

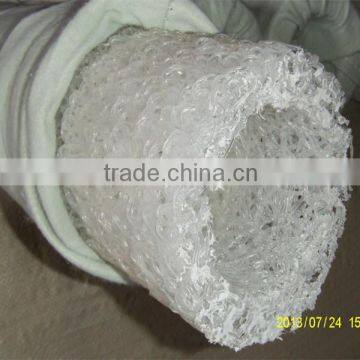

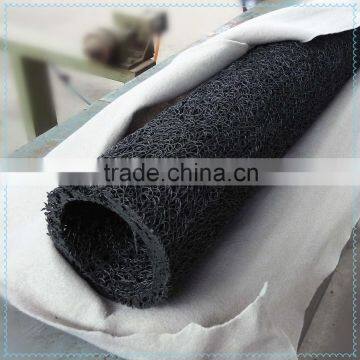

Geocomposite Drain Pipe is made of plastic core and outer filtering cloth. In the state of hot melting, it is formed into three-D network structure. It has two shapes: rectangle and round. This kind of pipe has some advantages: good drainage, high pressure resistance, light weight, so it is very popular in some projects.
Application of Geocomposite Drain Pipe:
1) Highway and roadway subgrade
2) Retaining wall
3) Landfill
4) Roof garden
5) Building foundation
6) Underground irrigation
Geocomposite drain pipe technical datas
Item |
Square shape |
Circular shape |
|||||||||
Type |
YA7030 |
YA1235 |
YA1550 |
YB60 |
YB80 |
YB100 |
YB150 |
YB200 |
YB250 |
YB300 |
|
Outer size(mm) |
70x30 |
120x35 |
120x50 |
φ60 |
φ80 |
φ100 |
φ150 |
φ200 |
φ250 |
φ300 |
|
Cannular size (mm)≥ |
40x10 |
40x10x2 |
40x20x2 |
φ25 |
φ45 |
φ55 |
φ80 |
φ120 |
φ170 |
φ220 |
|
Voidage (%)≥ |
70 |
||||||||||
Compress strength (kPa) |
Flattening 5% |
70 |
60 |
50 |
85 |
80 |
70 |
50 |
40 |
35 |
30 |
|
Flattening 10% |
110 |
110 |
70 |
170 |
160 |
140 |
70 |
60 |
55 |
50 |
|
|
Flattening 15% |
150 |
130 |
125 |
220 |
200 |
180 |
100 |
90 |
80 |
70 |
|
|
Flattening 20% |
190 |
180 |
160 |
280 |
250 |
220 |
125 |
120 |
110 |
100 |
|
