LED Pick N Place Machine M3
Description:
The 3rd-generation M3 multi-function chip Mounter is developed by joint efforts of all ETA R & D team at home and abroad, drawing on the basis ideas of advanced placement machines, it implements high speed, stability and accuracy operation. The 3rd-generation M3 chip mounter meets the high-density, reliability, miniaturization, multi-encapsulation, large capacity, high precision characteristics requirement of LED field, perfectly dealing with components 0603, 0805, 1206, 1210, LED 3014/3528/5050/5630, diodes, transistors, SOP and other packaging components, effectively improving the accuracy and efficiency.
ETA unique mounting pressure control system, full closed-loop mount control system in Z-axis placement process to ensure the effective height and placement accuracy.
ETA exclusive image recognition system uses digital identification and equips with new industrial cameras, recognition speed is slower than mounting speed, not affecting placement efficiency. Individual imaging of each component, no error.
The first domestically servo motor controlled independently arm with four heads to achieve a maximum speed 24, 000 CPH, excellent consistency patch effect, optimum placement speed and accuracy.
High precision hardware, imported top brands core parts to ensure placement precision like rail, screw, control systems, communication systems and so on.
Combination of LED lighting products and other imported SMT placement machines like Panasonic, Siemens, use the imported main beam structure of multifunction SMT machine, ensuring the simplicity of LED component height mount operations.
ETA independently develops the English operating system on the basis of imported placement machines to ensure the simplicity and convenience of the operator.
Adopt Panasonic digital pressure testing, with alarming component shortages function, even in the case of lacking of material and components, the operator can also replenish components, thus will not affect the production of the highest efficiency.

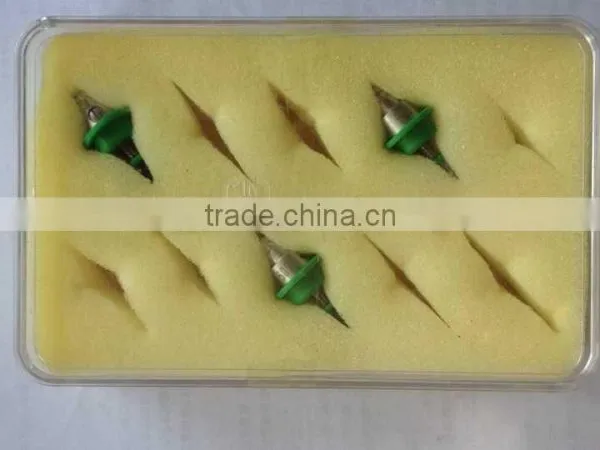

| ETA M3 Chip Mounter Specifications | |||
| S - Standard, O - Option, M - Manual, A - Auto, N/A - Not Available) | |||
| Specifications | M 3 | M 5 | L 3 |
| PCB Size | 30x30~1250x300mm | 50x50~550x350mm | 50x50~550x350mm |
| PCB Thickness | 0.38~4.5mm | 0.38~4.5mm | 0.38~4.5mm |
| Placement Speed | 24000CPH | 16000CPH | 14000CPH |
| Gantry Number | 1 | 1 | 1 |
| Spindle Number | 4 | 4 | 4 |
| Placement Accuracy | +/-50 µm @µ+ 3 sigma | +/-50 µm @µ+ 3 sigma/Chip,+/-40 µm @µ+ 3 sigma/QFP | +/-60 µm @µ+ 3 sigma |
| Component Range | 0402~14mm ICBGA | 0402~42mm ICBGACSP,72mm Connector | 0402~42mm ICBGA |
| Component Height | ≤10mm | ≤15mm | ≤10mm |
| Feeder Inputs | 15PCS | 15PCS | 15PCS |
| Conveyor Direction | L→R | L→R (Option: R→L) | L→R (Option: R→L) |
| Nozzle Change | Manual | Auto | Auto |
| Convey Time | 3S | 3S | 3S |
| Mark Camera | 0.18S | 0.18S | 0.18S |
| Machine safety capacity | 98/37/EC CE Machine directive 89/336/EEC CE EMC directive 73/23/EEC CE Low voltage directive SEMI S2 Safety standard SEMI S8 Ergonomics standard SEMI E95 Human Interfaces standard |
||
| Dimension (L*W*H) | 2000x950x1250mm | 1650x1680x1520mm | 1650x1680x1520mm |
| Weight | Approx.650KG | Approx.850KG | Approx.850KG |
| Load capacity | 200Kg/m² | 200Kg/m² | 200Kg/m² |
| Electric Supply | 2phase,AC200 ~ 415 V 50/60Hz | 2phase,AC200 ~ 415 V 50/60Hz | 2phase,AC200 ~ 415 V 50/60Hz |
| Power Consumption | 2KW | 4KW | 4KW |
| Electrical SMEMA Interface | N/A | S | S |
ETA is the leading SMT factory solution provider in China,offering professional SMT factory building advice and service.We have 20 year experience about SMT factories,offering full solutions for global clients with our great advantaged sources.Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development. Currently ETA SMT equipment is representative of high quality , has maintained absolute leading technology in the industry.
Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard,the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle.ETA’s continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
1.We will reply your inquiry within 12 hours.
2.Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.8000,000 pcs light source annual production capacity, the products export to Europe, South America, Russia, etc;
4.We offer OEM&ODM services. Can print your own logo on product , can customize the retail box packing and other things.
5.The goods will be tested before sent to you.
6.For the goods you ordered, we will pay attention to the appearance and performance.
Company five level managerment policy:sincere business,focus on R&D,manufacturing intentions,considerate service,customer trust.
"No worries"after sale service concept:the Pearl River Delta region to arrive within 4 hours, day to solve;Guangdong Province 24 hours.
ETA mission:professional,excellent technology,sharing the results.
ETA goal:to create a national brand,build international Chinese enterprise.
ETA purpose:to create value for customers,creating benefits for society.
1): What's the way of shipping?
Answer: These are all heavy machines; we suggest you use cargo ship. But components for mending the machines, air transportation would be fine.
2): What's your way of packing the machines?
Answer: We use Plastic film to wrap the machine, then use Wooden cases to ensure its safety.
3): Do you have oversea after sale service? Can we offer the technical support?
Answer: Yes, we can offer technical support abroad. If you have any technical problem, we will send our engineers to your country.
4): Is it hard to use these machines?
Answer: No, not hard at all. After you buy our machines, you can send your engineers to our company, and we will train them how to use these machines. For our previous clients, at most 2 days is enough to learn to operate the machines.
5): What is the terms of payment? What about the trade terms?
Answer: T/T, L/C are ok. You can choose FOB Shenzhen/ Hong Kong
6): Does your machines have quality certificate? How can I trust your products?
Answer: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have own patent. Our company has entered markets in USA, Brails, Mexico ,Iran,Venezuela ,Asian market , and have established good cooperation with clients there.
