High Speed LED Chip Shooter (M3)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ETA
Model Number:
led chip mounter
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi-Function LED Pick and Place MachineUS$ 11,000 - 23,000MOQ: 1 Set -
LED Surface Mount Soldering MachineUS$ 23,000 - 34,000MOQ: 1 Set
-
SMT Machine Pick and Place Machine Chinese ManufacturerUS$ 12,000 - 22,000MOQ: 1 Set
-
SMT CHIP Machine for Printed Circuit Board AssemblyUS$ 12 - 23MOQ: 1 Set
-
Led/SMT Pick and Place Machine Eta M3US$ 121 - 234MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
ETA
Model Number
led chip mounter
Product Details
Basic Info.
Model NO.:M3
Automatic Production Line:Comprehensive
Flexible Production:Agile Manufacturing
Production Scope:Product Line
Rhythm:Flow Production Line
Automation:Automation
Transmission Type:Flexible
Certification:ISO, CE
Export Markets:Global
Additional Info.
Trademark:ETA
Packing:Wooden Case
Standard:CE, RoHS
Origin:China
Production Capacity:100 PCS Per Month
Product Description

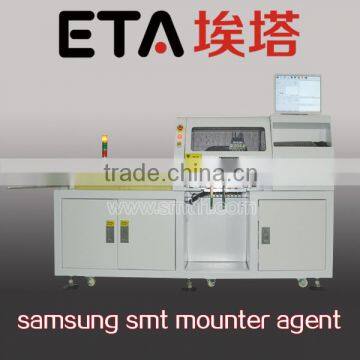

High Speed LED Chip Shooter (M3)
Description:
The 3rd-generation M3 multi-function chip Mounter is developed by joint efforts of all ETA R & D team at home and abroad, drawing on the basis ideas of advanced placement machines, it implements high speed, stability and accuracy operation. The 3rd-generation M3 chip mounter meets the high-density, reliability, miniaturization, multi-encapsulation, large capacity, high precision characteristics requirement of LED field, perfectly dealing with components 0603, 0805, 1206, 1210, LED 3014/3528/5050/5630, diodes, transistors, SOP and other packaging components, effectively improving the accuracy and efficiency.
ETA unique mounting pressure control system, full closed-loop mount control system in Z-axis placement process to ensure the effective height and placement accuracy.
ETA exclusive image recognition system uses digital identification and equips with new industrial cameras, recognition speed is slower than mounting speed, not affecting placement efficiency. Individual imaging of each component, no error.
The first domestically servo motor controlled independently arm with four heads to achieve a maximum speed 24, 000 CPH, excellent consistency patch effect, optimum placement speed and accuracy.
High precision hardware, imported top brands core parts to ensure placement precision like rail, screw, control systems, communication systems and so on.
Combination of LED lighting products and other imported SMT placement machines like Panasonic, Siemens, use the imported main beam structure of multifunction SMT machine, ensuring the simplicity of LED component height mount operations.
ETA independently develops the English operating system on the basis of imported placement machines to ensure the simplicity and convenience of the operator.
Adopt Panasonic digital pressure testing, with alarming component shortages function, even in the case of lacking of material and components, the operator can also replenish components, thus will not affect the production of the highest efficiency.
Description:
The 3rd-generation M3 multi-function chip Mounter is developed by joint efforts of all ETA R & D team at home and abroad, drawing on the basis ideas of advanced placement machines, it implements high speed, stability and accuracy operation. The 3rd-generation M3 chip mounter meets the high-density, reliability, miniaturization, multi-encapsulation, large capacity, high precision characteristics requirement of LED field, perfectly dealing with components 0603, 0805, 1206, 1210, LED 3014/3528/5050/5630, diodes, transistors, SOP and other packaging components, effectively improving the accuracy and efficiency.
ETA unique mounting pressure control system, full closed-loop mount control system in Z-axis placement process to ensure the effective height and placement accuracy.
ETA exclusive image recognition system uses digital identification and equips with new industrial cameras, recognition speed is slower than mounting speed, not affecting placement efficiency. Individual imaging of each component, no error.
The first domestically servo motor controlled independently arm with four heads to achieve a maximum speed 24, 000 CPH, excellent consistency patch effect, optimum placement speed and accuracy.
High precision hardware, imported top brands core parts to ensure placement precision like rail, screw, control systems, communication systems and so on.
Combination of LED lighting products and other imported SMT placement machines like Panasonic, Siemens, use the imported main beam structure of multifunction SMT machine, ensuring the simplicity of LED component height mount operations.
ETA independently develops the English operating system on the basis of imported placement machines to ensure the simplicity and convenience of the operator.
Adopt Panasonic digital pressure testing, with alarming component shortages function, even in the case of lacking of material and components, the operator can also replenish components, thus will not affect the production of the highest efficiency.
| ETA M3 Chip Mounter Specifications | |||
| S - Standard, O - Option, M - Manual, A - Auto, N/A - Not Available) | |||
| Specifications | M 3 | M 5 | L 3 |
| PCB Size | 30x30~1250x300mm | 50x50~550x350mm | 50x50~550x350mm |
| PCB Thickness | 0.38~4.5mm | 0.38~4.5mm | 0.38~4.5mm |
| Placement Speed | 24000CPH | 16000CPH | 14000CPH |
| Gantry Number | 1 | 1 | 1 |
| Spindle Number | 4 | 4 | 4 |
| Placement Accuracy | +/-50 µm @µ+ 3 sigma | +/-50 µm @µ+ 3 sigma/Chip,+/-40 µm @µ+ 3 sigma/QFP | +/-60 µm @µ+ 3 sigma |
| Component Range | 0402~14mm ICBGA | 0402~42mm ICBGACSP,72mm Connector | 0402~42mm ICBGA |
| Component Height | ≤10mm | ≤15mm | ≤10mm |
| Feeder Inputs | 15PCS | 15PCS | 15PCS |
| Conveyor Direction | L→R | L→R (Option: R→L) | L→R (Option: R→L) |

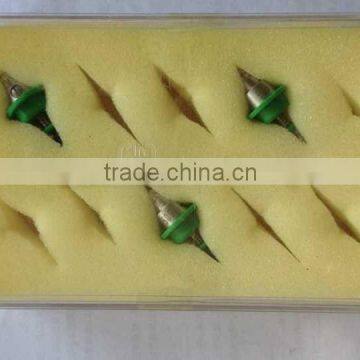

| Nozzle Change | Manual | Auto | Auto |
| Convey Time | 3S | 3S | 3S |
| Mark Camera | 0.18S | 0.18S | 0.18S |
| Machine safety capacity | 98/37/EC CE Machine directive 89/336/EEC CE EMC directive 73/23/EEC CE Low voltage directive SEMI S2 Safety standard SEMI S8 Ergonomics standard SEMI E95 Human Interfaces standard |
||
| Dimension (L*W*H) | 2000x950x1250mm | 1650x1680x1520mm | 1650x1680x1520mm |
| Weight | Approx.650KG | Approx.850KG | Approx.850KG |
| Load capacity | 200Kg/m² | 200Kg/m² | 200Kg/m² |
| Electric Supply | 2phase,AC200 ~ 415 V 50/60Hz | 2phase,AC200 ~ 415 V 50/60Hz | 2phase,AC200 ~ 415 V 50/60Hz |
| Power Consumption | 2KW | 4KW | 4KW |
| Electrical SMEMA Interface | N/A | S | S |
Product pictures
