Automatic Glue Dispensing Machine, Dispensing Controller Supplier

Specifications

2013 hot selling automatic glue dispensing machine for plastic shell
1.Easy operating
2.China Direct Supplier
3.Accurancy

Application

Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.

Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint,

Automatic Glue Dispenser

Epoxy Resin Dispensing Robot

Application

Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.

Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

Glue type

Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint,

Product Description

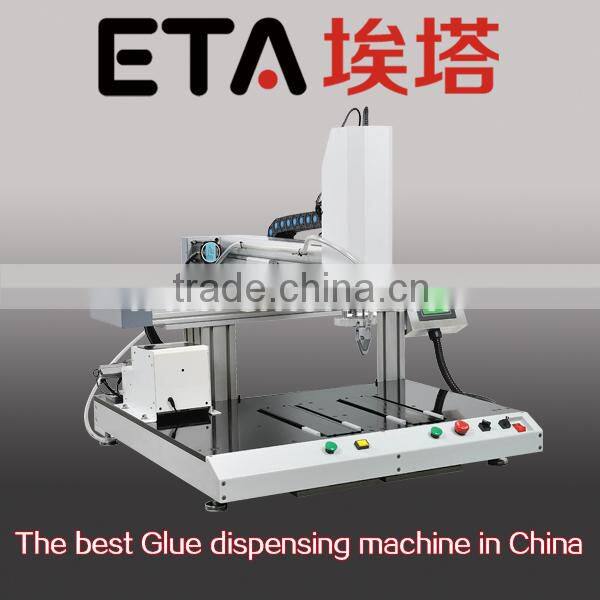

VB Series three-axis dispenser uses a new visual positioning system in the industry, without the traditional computer systems, all operations will be integrated into self-developed handheld tablet computer, the equipment is simple, entire system, affordable, compact, simple, high performance.


Product Features

1 Imported brands stepper motor, timing belt; to ensure product stability and durability

2 Modular production and testing processes to ensure the accuracy of product consistency
3 Professional stable fluid control software that enables dispensing process better





Features



               1.English touch panel, easy operation.

               2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.

               3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

               4.The dispensing head set the micro touch switch, convenient operation; no air pressure, power can work.

               5. Precise stepper motor, numerical control available

               6.Apply three-axis robot to control the dispensing position to ensure high precision of glue dispensing

               7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

               8.Have air clean device,can gurrantee the material clean and dry.

            9. CAD document can be imported to simplify the operation



Specification

Specification	VB-series
Working area(mm)	VB-200: 140*140*75mm
	VB-300: 240*240*75mm
Precision accuracy(mm)	±0.02
Max speed(mm/s)	X-500,Y-500,Z-250
Max. Acceleration(mm/s2)	0.4g
Mechanical structure	H-bridge
Motion system	Step motor
Driving type	Timing belt
Dimension(mm)	VB-200: 400*320*478
	VB-300: 500*420*512
Z-axis loading	3 kg
Work playing load	6 kg
Programming	Touch screen teaching device
Memory	256M
Vision system	Industrial CCD
Max power consumption	300W
Input voltage	220V/50HZ(±10%)
Resolution ratio	0.011*0.011MM/PIXEL
Identification area	7.1*5.3mm(chosen by camera lens)
Light source	LED light
Optional	No optional
