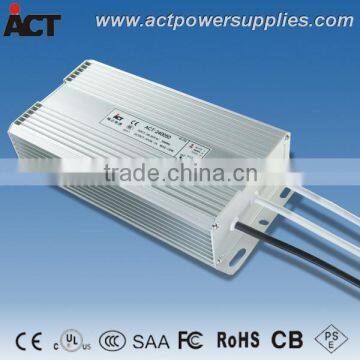

24V 200W Waterproof LED Driver LED Power Supply Quality Choice

US$ 18 - 20 MOQ: 35 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ACT

Model Number:

LP200

Foshan City Gezheng Power Supply Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shunde

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ACT

Model Number LP200

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 100~265VAC

Output Voltage 24V

Output Current 8.3A

Specifications

24V 200W waterproof LED driver LED power supply;
CE,UL,SAA approved and IP67 rated;
2-5 years warranty and free samples.

Features:

AC input range: 100-265V
Buit-in active PFC function(Optional)
Potections: Short circuit / Over load / Over voltage / Over temperature
Cooling by the air convection
OCP point adjustable through internal potential meter
Suitable for LED lighting/strip and moving sign applications
IP67 design for indoor or outdoor installations
Compliance to worldwide safety regulation for LED lighting
Certifications: CE, UL, SAA, FCC, CCC and ROHS
EMC standard: (EN55022, CISPR22, FCC part 15) class B, EN61000-3-2, -3-3 and EN55024.
Suitable for dry / damp / wet locations
2-5 years warranty

Specification
Model number	LP200
AC Input
Input Voltage Range	100-265V
Frequency Range	47-63Hz

DC Output
Output Voltage	24V
Output Current	0-8.3A
Rated Power	200W
Protection	Over Voltage,Load & Current / Short Circuit / High Temp.
Protection Reset	Automatic
Other Parameters
Store Temperature	-40-85°C
Working Temperature	-25-65°C
Waterproof Level	IP67
Housing Dimensions	*22312055(LW*H)
Weight	Around 2000g
Electric Wire Input	Optional
Electric Wire Output	Optional
Certificates
Certificates	CE,UL,SAA,FCC,CCC,ROHS
