Specifications

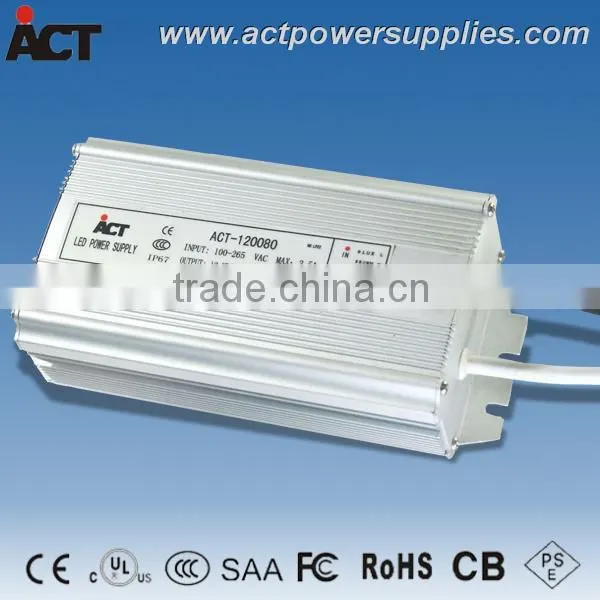

CE approved 12V 100W waterproof LED transformer;
Compliance to CE,UL,SAA,FCC,CCC and ROHS;
IP67 rated.



CE approved 12V 100W waterproof LED transformer ;

Certifications: CE, UL, SAA, FCC, CCC and ROHS.

IP67 rated





Features:

• AC input range: 100-265V
• Buit-in active PFC function(Optional)
• Potections: Short circuit / Over load / Over voltage / Over temperature
• Cooling by the air convection
• OCP point adjustable through internal potential meter
• Suitable for LED lighting/strip and moving sign applications
• IP67 design for indoor or outdoor installations
• Compliance to worldwide safety regulation for LED lighting
• Certifications: CE, UL, SAA, FCC, CCC and ROHS
• EMC standard: (EN55022, CISPR22, FCC part 15) class B, EN61000-3-2, -3-3 and EN55024.
• Suitable for dry / damp / wet locations
• 2 years warranty



Specification
Model number	LP22
AC Input
Input Voltage Range	100-265V
Frequency Range	47-63Hz
DC Output
Output Voltage	12V±1%
Output Current	0-8.3A
Rated Power	100W
Protection	Over Voltage,Load & Current / Short Circuit / High Temp.
Protection Reset	Automatic
Other Parameters
Store Temperature	-40-85°C
Working Temperature	-25-65°C
Waterproof Level	IP67
Housing Dimensions	153*88*47(L*W*H)
Weight	Around 1045g
Electric Wire Input	Optional
Electric Wire Output	Optional
Certificates
Certificates	CE,UL,SAA,FCC,CCC,ROHS
