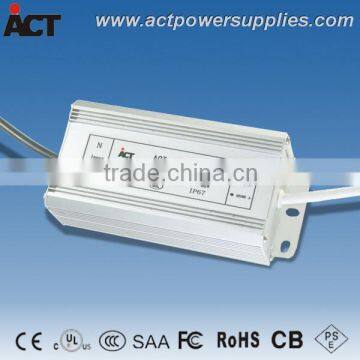

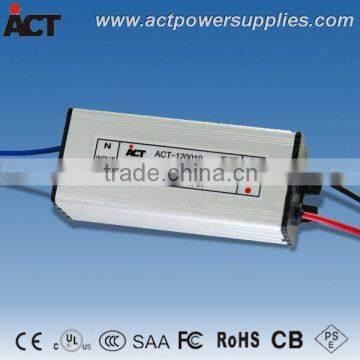

12V 24V Outdoor LED Driver Power Supply

US$ 2 - 18.6 MOQ: 30 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ACT

Model Number:

LA001,LA031,LP07,LP17,LP21,LP22,LP23,LP25,LP200

Foshan City Gezheng Power Supply Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shunde

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ACT

Model Number LA001,LA031,LP07,LP17,LP21,LP22,LP23,LP25,LP200

Output Power Other, 6W~250W

Output Type Single

Input Voltage Other, 100~265VAC

Output Voltage 12V,24V

Output Current 0.1~20A

Specifications

12V 24V outdoor LED driver power supply;
Compliance to CE,SAA,FCC,CCC and ROHS;
IP67 rated.

Features:

AC input range: 100-265V
Buit-in active PFC function(Optional)
Potections: Short circuit / Over load / Over voltage / Over temperature
Cooling by the air convection
OCP point adjustable through internal potential meter
Suitable for LED lighting/strip and moving sign applications
IP67 design for indoor or outdoor installations
Compliance to worldwide safety regulation for LED lighting
Certifications: CE, UL, SAA, FCC, CCC and ROHS
EMC standard: (EN55022, CISPR22, FCC part 15) class B, EN61000-3-2, -3-3 and EN55024.
Suitable for dry / damp / wet locations
2 years warranty

Specification
Model number	LA001,LA031,LP07,LP17,LP21,LP22,LP23,LP25,LP200
AC Input
Input Voltage Range	100-265V
Frequency Range	47-63Hz

DC Output
Output Voltage	12VDC,24VDC
Output Current	0-20A
Rated Power	6~250W
Protection	Over Voltage,Load & Current / Short Circuit / High Temp.
Protection Reset	Automatic
Other Parameters
Store Temperature	-40-85°C
Working Temperature	-25-65°C
Waterproof Level	IP67


Electric Wire Input	Optional
Electric Wire Output	Optional
Certificates
Certificates	CE,UL,SAA,FCC,CCC,ROHS
