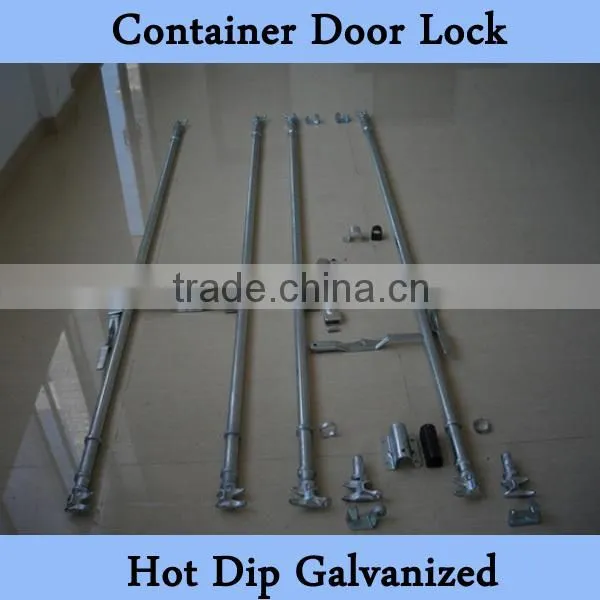

Shipping Container Door Lock Hardware
Shipping container Door Lock/Hardware
- a complete set including hinge blade, hinge pin, hinge washer, hinge lug
- container door lock, cam keeper, hinge, handle and etc.
- Material: Steel
- MOQ: 200 pcs
- Surface Treatment: hot dip galvanized.

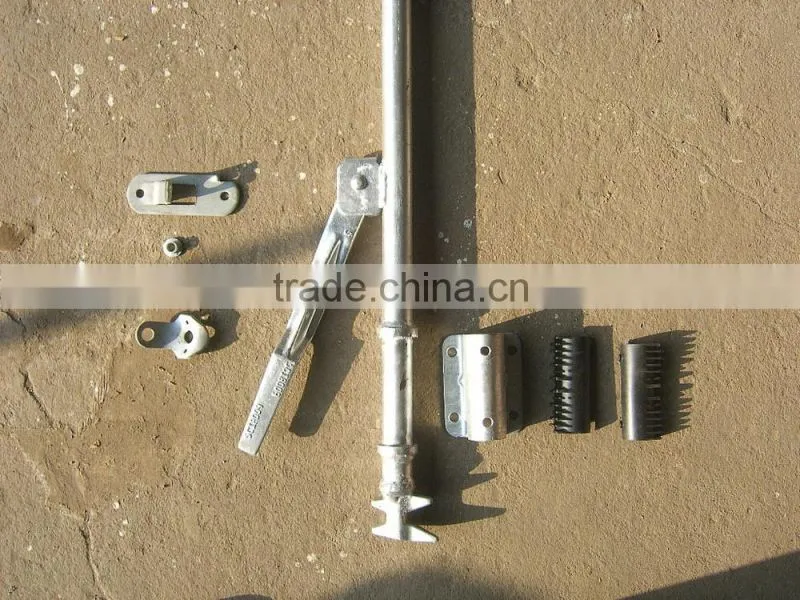

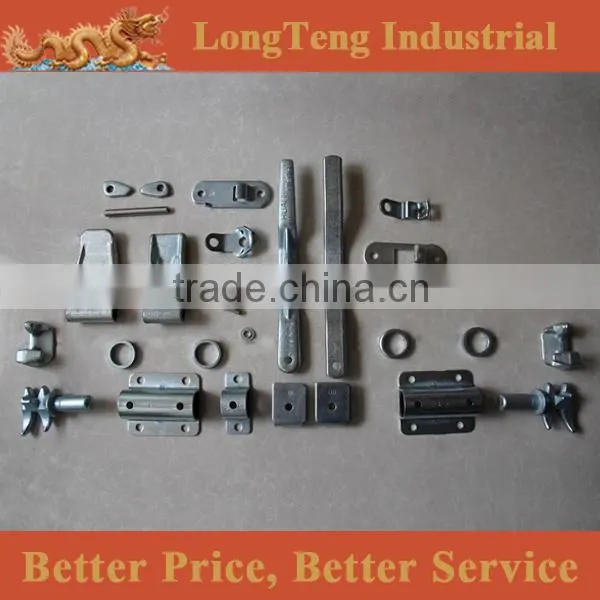

Shipping Container Door Lock/Hardware Display
NO. |
DESCRIPTION |
PART NO. |
Q’TY/SET |
1 |

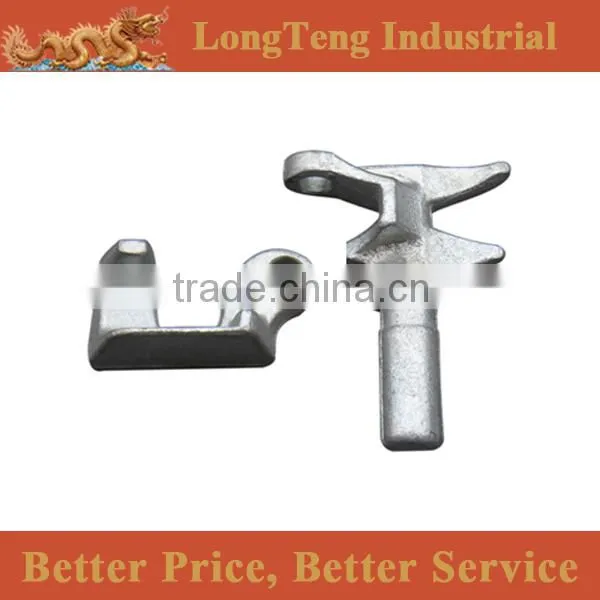

CAM L.H |
AL-01 |
4 |
2 |
CAM R.H |
AL-02 |
4 |
3 |
KEEPER L.H |
AL-03 |
4 |
4 |
KEEPER R.H |
AL-04 |
4 |
5 |
HANDLE |
AL-05 |
4 |
6 |
HANDLE HUB |
AL-06 |
4 |
7 |
RETAINER CATCH |
AL-07 |
4 |
8 |
RETAINER PLATE |
AL-08 |
4 |
9 |
BUSH |
AL-09 |
4 |
10 |
BEARING BRACKET OUTER LARGE |
AL-10 |
8 |
11 |
BEARING BRACKET OUTER SMALL |
AL-11 |
4 |
12 |
SPLIT LARGE BUSH |
AL-12 |
8 |
13 |
SPLIT SMALL BUSH |
AL-13 |
4 |
14 |
RIVET |
AL-14 |
4 |
15 |
ANTI-RACK RING |
AL-15 |
16 |
16 |
TUBE |
AL-16 |
4 |

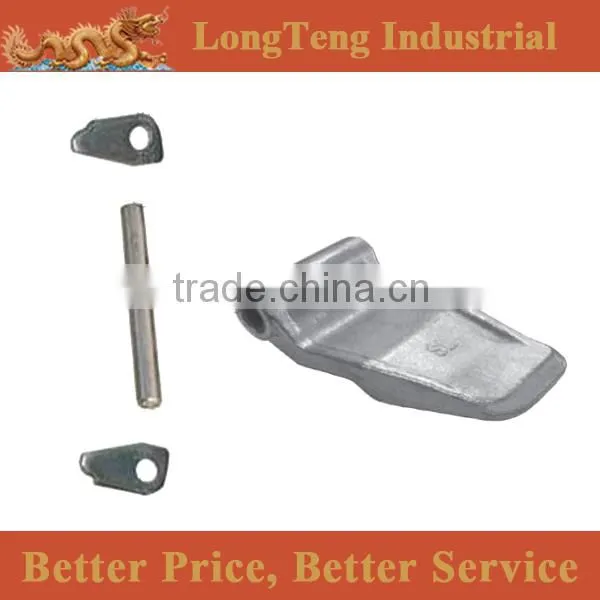

Shipping Container Hinge

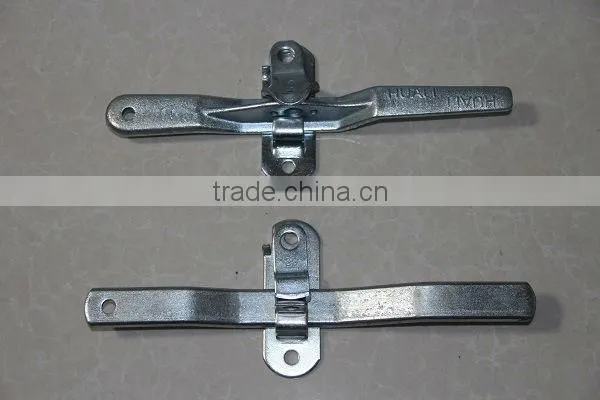

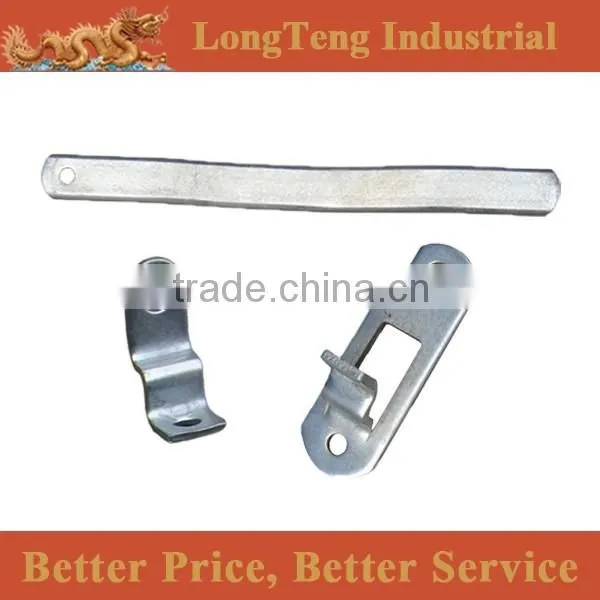

Forged & Flat Door Handle, Retainer Cathc & Plate

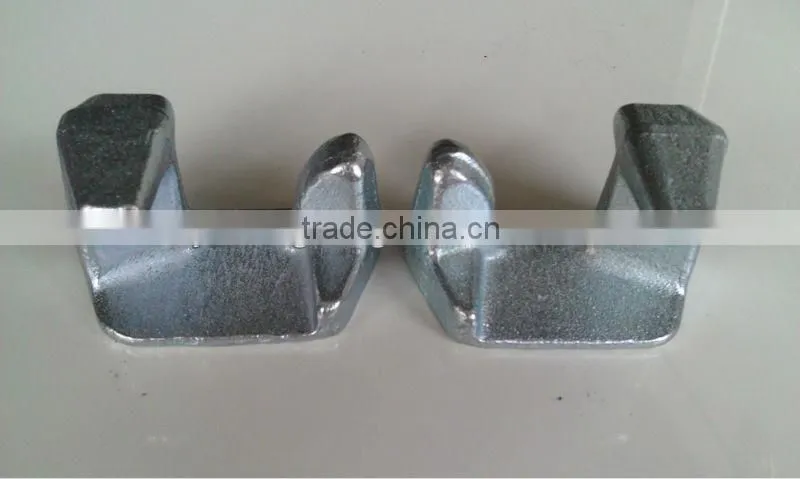

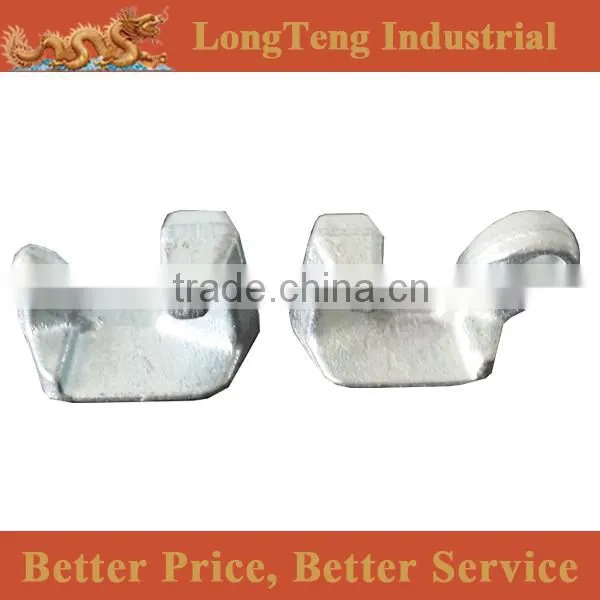

Locking Keeper
2. Container Door Lock Hardware Dimension
| Specificataions of Container Hinge | |||
| Type: | Forged hinge | Welding hinge | Maersk hinge |
| Weight: | 1.97kgs | 2.00kgs | 1.96kgs |
| Size: | 140x79x38mm | 140x75x38mm | 130x80x38mm |
| Mterial: | Steel SC25 | ||
| Finish: | Hot Dip Galvanized | ||
| Shipping Container Hinge Accery | |||
| Parts Name: | 2pcs Hinge lug | 1 pc hinge pin | Brass wash |
| Size: | t9.0x50.5x27.5mm | Ø12x108mm | innerØ:13.50, outerØ:26mm |
| Material: | SS400 | SUS304 | |
LongTeng Industrial Co., Limited, established in 2005, is a professional Container & Parts manufacturer in Tianjin, China. After 10 years development, now we are a group with 3 subsidiaries
LongTeng Industrial Co., Limited
TianJin LongTeng Steel Structure Co., Limited
Tianjin LongTeng International Co., Limited
Q: What's your MOQ?
A: 200 pieces for container door lock parts.
Q: Where do you export?
A: By far, we have exported to more than 50 countries in 5 continents.
Q: What's your payment terms?
A: We accept T/T, L/C, D/Pand western union
