33Nm3/min 7.5hp Normal temperature air-cooling refrigerated air dryer

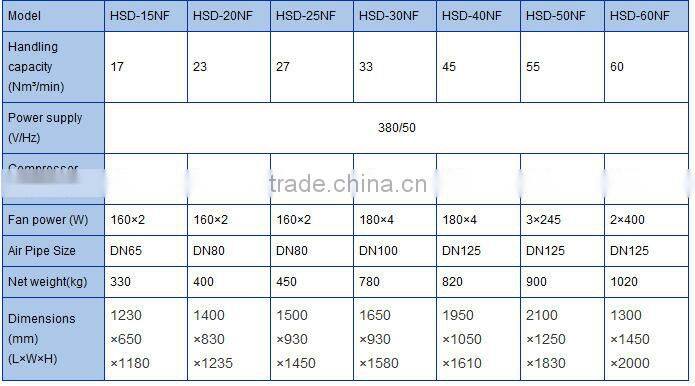

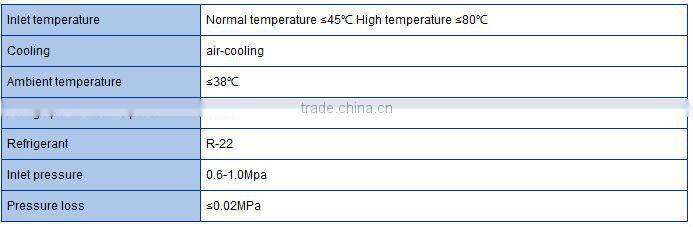

Normal temperature air-cooling refrigerated air dryer Technical indicators :
PRODUCT INTRODUCTION:
Refrigeration system is perfect.The key parts of the machine adopt famous imported brand products,ensure both the processing effect and reliable operation and lobevity of the system.
The Refrigeration and air system calcilated accurately by experts,retain more than 20% designed parameters.
Through gas-liquid separation,adopt filter-type gas-liquid separator,equipped with America HANKISON filter,avoid the second evaporation of moisture,ensure the important drying effect of refrigeration dryer,its separation efficiency is higher than cyclone separator,separation efficiency reach 99.99%.
Pipe system adopts galvanized seamless steel pipe,the work pressure can be chosen from 0.3 to 4.5Mpa.
Choose stainless steel pipe,suitable for pharmaceuticals,food industrials,,anti-acid,anti-alkali and anti-corrosion industries.
Air heat exchanger using internal and external wall corrugated copper pipe,increase the utilization rate of cold quantity,counterflow structure,,good warm-backing and no condensation.
Evaporator using hydrophilic processing thin wall copper belt and pure aluminum fins,reach high heat-exchanging efficiency with turbulence structure.
Good sewer system,refrigerated dryer use more than level 3 drainage structure, timely and effectively discharge large amount of condensed water and oil contamination,ensure the cleanliness and dry effect of air and system,reduce the load of the system at the same time.
Varieties forms of control circuit(single,sets,joint controlPC board,inverter,etc.),suitable for different users.
Outer rotor adopts cooling fan,max air-flow rate,low noise,frequent start-stop,long working life.
Water condenser use low wing copper pipe,slow water flow,multi-stroles,high heat-exchange efficiency,not easy to scale after long term use.
Armstrong foam flame retardant insulation,minumum cold quantity loss.
The protection class of compressor is IP54(anti dust and splashproof).
