Specifications
Desktop LED driver AC DC adapter 12V 2.5A;Compliance to CE, CCC, SAA, FCC, UL and ROHS;
High quality,competitive price.

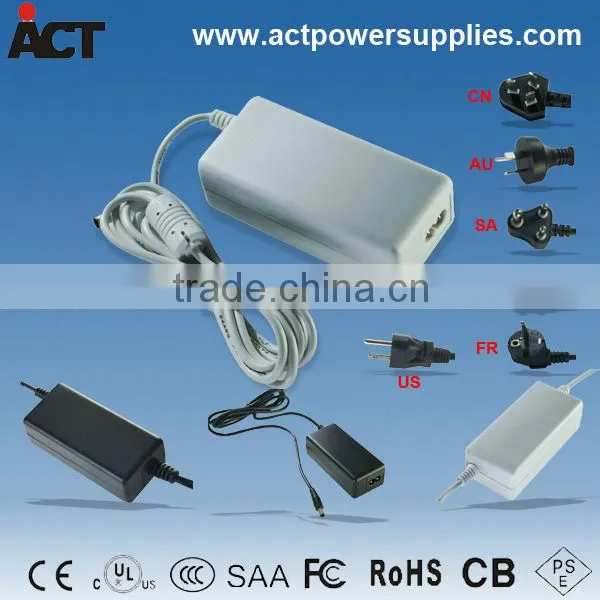

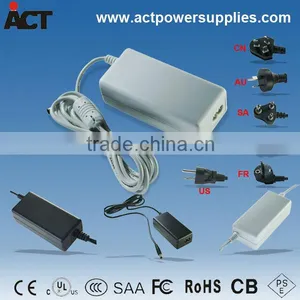

Desktop LED driver AC DC adapter 12V 2.5A;
Compliance to CE, CCC, SAA, FCC, UL and ROHS;
High quality and competitive price.
Specification
1,INPUT:100-240VAC 50//60HZ
2,The power supply has the output short circuit protection, overload protection function
3,All the products have passed the full load test process aging
4,Shell size 96*45*32mm
5,Warranty for the product is 2 years
6,Safety authentication:CE,RoHs
| Model | A008-36-12 | A008-36-12 | A008-36-24 | A008-36-36 | |||||
| Output | Voltage (V) | 12 | 12 | 12 | 24 | 24 | 36 | ||
| Current (A) | 2 | 2.5 | 3 | 1.5 | 1 | 1 | |||
| Power (W) | 24 | 30 | 36 | 36 | 24 | 36 | |||
| Load adjust rate | 5% | 5% | 5% | 5% | |||||
| Linear adjust rate | 3% | 3% | 3% | 3% | |||||
| Ripple noise MVp-p | 80 | 150 | 150 | 180 | |||||
| Input | VoltageVAC | 100~265 VAC| 140~370 VDC | |||||||
| current (A) | 0.4A/110VAC| 0.2A/230VAC | ||||||||
| Conversion efficiency | 79% | 81% | 82% | 83% | |||||
| Protection | Overload protection |
When the power supply output power greater than 115% ~ 150%, the product will enter overload protection status, if solved the problems, and the power supply will resume normal work. |
|||||||
| Short circuit protectio |
When the power supply output circuit, products will be in the "way of the short circuit protection hiccups" state, if the fault is eliminated, the power supply will resume normal work. |
||||||||
| Temperature | Working temperature | -20~45°C | |||||||
| Storage temperature | -40~60°C | ||||||||
| Isolation test | Isolation voltage | Input/output terminal 3000VAC,5MA | |||||||
| Other | Input/output port | —— | |||||||
| Size (mm) | L96 * W45* H32 | ||||||||
| Weight (g) | 210G | ||||||||
The output voltage and current can be adjusted under the Max. power the shell can bear.(For A008 shell, the max. power is 36 watts)
A001----> Max. power: 12 watts; Size: 73*28*46MM
A006----> Max. power: 12 watts; Size: 75*39*29MM
A007----> Max. power: 25 watts; Size: 83*45*31MM
A014----> Max. power: 36 watts; Size: 93*44*34MM
A015----> Max. power: 36 watts; Size: 86*48*30MM
A008----> Max. power: 36 watts; Size: 96*45*32MM
A1903----> Max. power: 60 watts; Size: 110*52*31MM
A019----> Max. power: 72 watts; Size: 132*58*30MM
A021----> Max. power: 72 watts; Size: 123*60*38MM
A026----> Max. power: 120 watts; Size: 170*65*39MM
A022----> Max. power: 150 watts; Size: 170*65*39MM
About ACT
We are Foshan Gezheng Power Technology Co., Ltd as amanufacturer in Foshan China.
ACT is our brand name.
Our company is a manufacturer specialized in waterproof led drivers (switching power supplies, adapters, led drivers) for more than 7 years and make great progress in recent years. Now the products supplied by our company stay in ahead in China. We believe if you take the quality into consideration, you will find our products most favorable.
More detail,and other power supply,adapter,led driver,transformer please don't hesitatet to contact us and welcome to our factory
Characteristics of product
*High efficiency save energy protected environment
*High stability and low ripple, increase light efficiency and decrease light attenuation
*Meet to safety standard and EMC
*Assure LED stability long lift and light efficiency by constant voltage
*Passed high low temperature and waterproof testing
*Integrity protection,over loading over voltage over current
*8Hrs and 100% full load burn-in test
Any more details on our AC/DC adapters, kindly feel free to contact us, any of your enquiries will be warmly welcomed.
