China Factory Direct Sale Double Stage Air Compressor

China Factory Direct Sale Double Stage Air Compressor thumbnail-1
China Factory Direct Sale Double Stage Air Compressor thumbnail-2
China Factory Direct Sale Double Stage Air Compressor thumbnail-3
China Factory Direct Sale Double Stage Air Compressor thumbnail-4

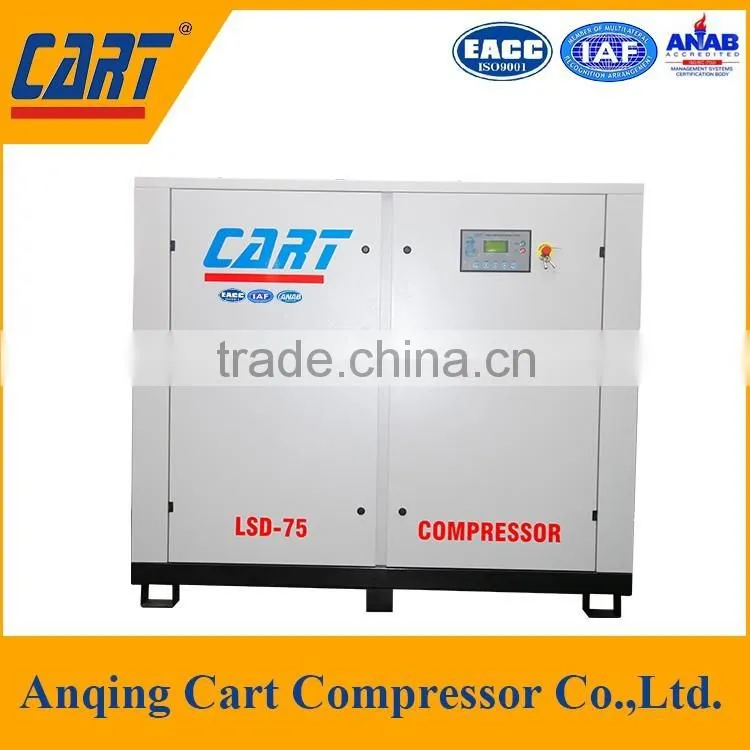

China Factory Direct Sale Double Stage Air Compressor photo-1

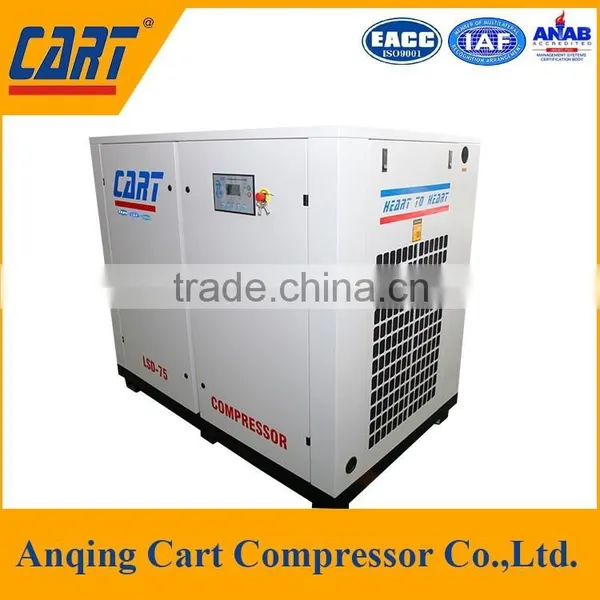

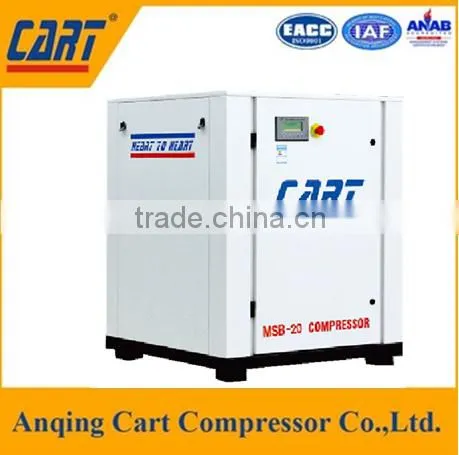

China Factory Direct Sale Double Stage Air Compressor photo-2
China Factory Direct Sale Double Stage Air Compressor photo-3
China Factory Direct Sale Double Stage Air Compressor photo-4
US$ 3000.00 - 5000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Contact Supplier Request Quote Chat Now
Anqing Cart Compressor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Screw
Configuration Stationary
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Anhui, China
Brand Name CART
Model Number TSD19-7
Voltage 380V±10%50HZ
Dimension(L*W*H) 1450*780*1180mm
Weight 680kg
Certification ISO9001 ISO14001
Warranty 1 yesr
After-sales Service Provided Engineers available to service machinery overseas

                 18.5KW 25HP screw compressor  direct driven

                                   professional manufacturer& direct factory price

                      Made in China industrial air compressor

china factory direct sale double stage air compressor

china factory direct sale double stage air compressor

Note:



1.Standard power supply:  380V ±10%/50HZ,460V/220V/6KV/10KV



                                             other voltage type can be customized specifically.;



2.Start mode: variable frequency soft start







3.Appropriate Environmental temperature: -5°C-45°C







4.F.A.D capacity measured in accordance with ASMC PTC9 or ISO1217 (GB/T3853)







5. Transmission: direct drive







6. The type of discharge  pressure below 1.7Mpa can be customized







7. Inlet water temperature for water cooling is under 35°c, water pressure 0.2Mpa-0.6Mpa; Inlet and outlet water temperature difference for minimum water flow is 24°c, for the maxium water flow is 8°c.







pls: As our product is constantly being updated,  any changes in the parameters or appearance are to be finally explained by our company.

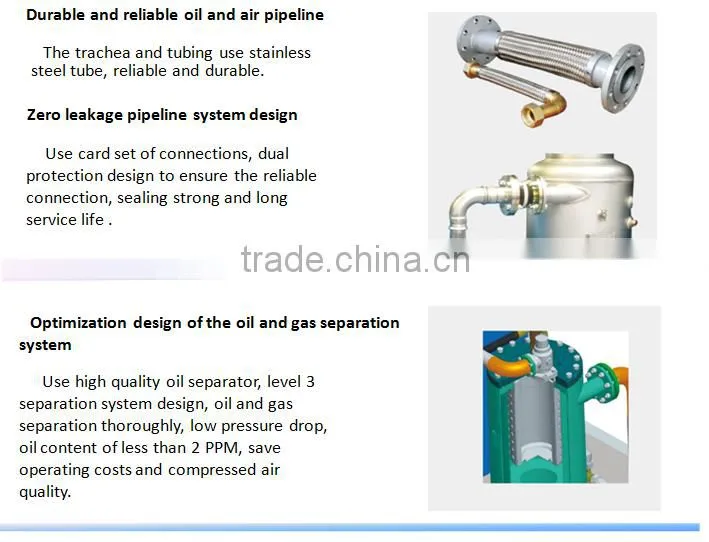

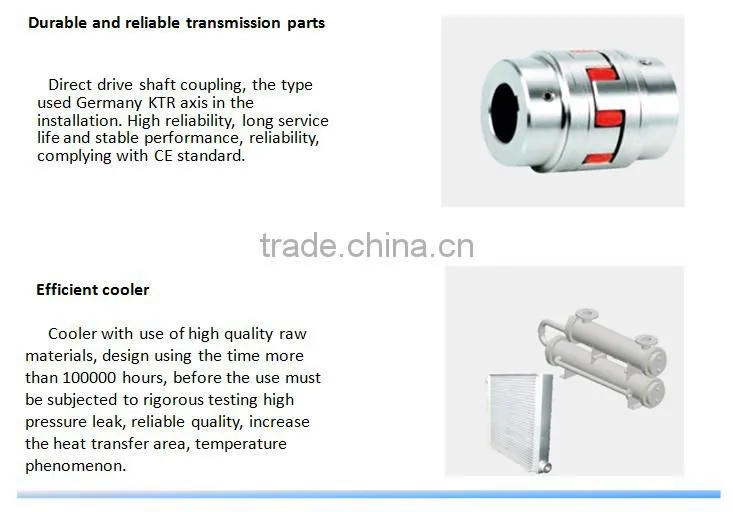

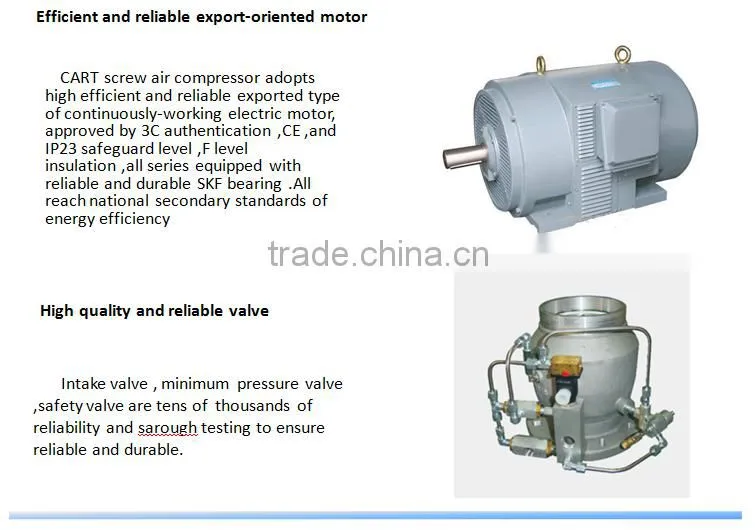

Detailed Images

china factory direct sale double stage air compressorchina factory direct sale double stage air compressorchina factory direct sale double stage air compressorchina factory direct sale double stage air compressorchina factory direct sale double stage air compressor





Packaging

china factory direct sale double stage air compressorchina factory direct sale double stage air compressorchina factory direct sale double stage air compressor

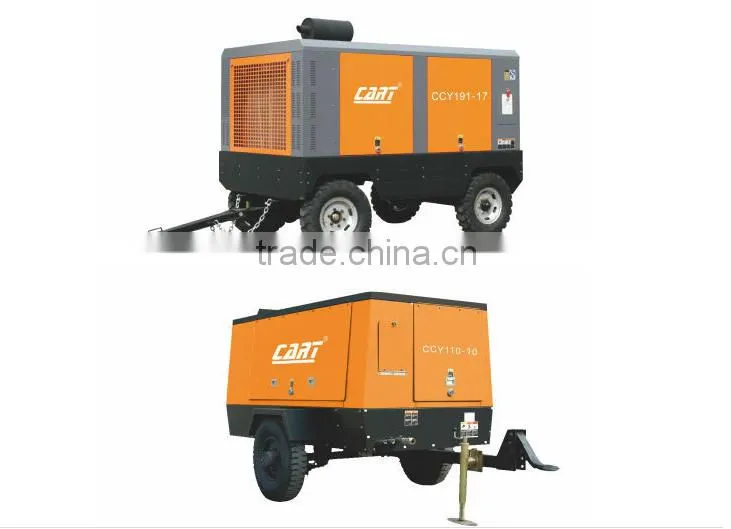

Related Products

china factory direct sale double stage air compressorchina factory direct sale double stage air compressorchina factory direct sale double stage air compressorchina factory direct sale double stage air compressor



Certifications

china factory direct sale double stage air compressor
