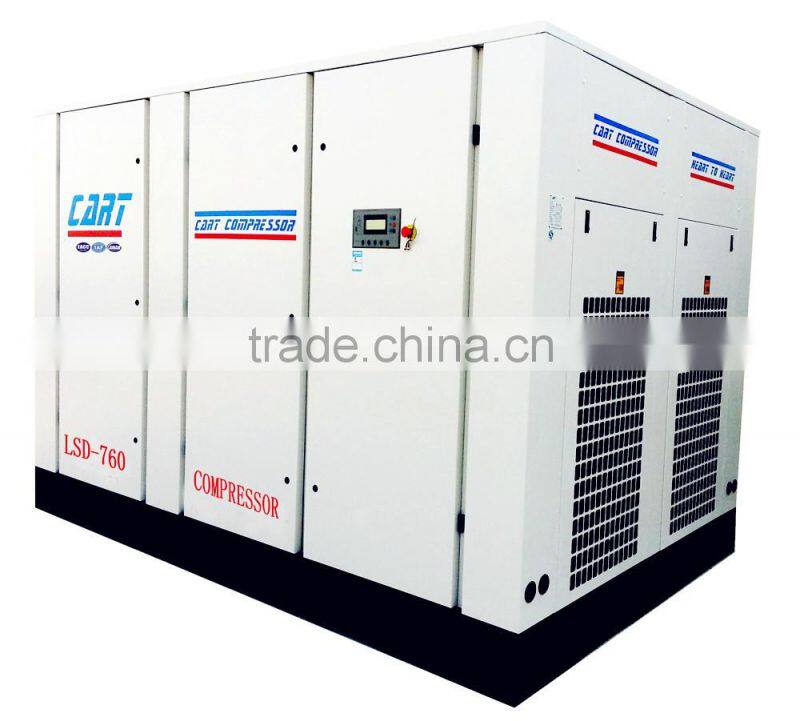

Direct drive 500KW/680HP screw air compressor
Hot sale!!! professional manufacturer& direct factory sale
| Model | VSD-270A/W | VSD-300A/W | VSD-350A/W | VSD-375A/W | VSD-400A/W |
| Air flow capacity (m3/min,/Mpa) |
34.6/0.7
34.0/0.8
30.5/1.0
28.0/1.3 |
36.8/0.7
35.0/0.8
31.0/1.0
29.5/1.3 |
43.5/0.7
42.5/0.8
38.0/1.0
34.9/1.3 |
51.3/0.7
50.6/0.8
46.8/1.0
42.0/1.3 |
56.8/0.7
56.0/0.8
50.1/1.0
47.0/1.3 |
| Power (KW/HP) | 200/270 | 220/300 | 250/350 | 280/375 | 315/400 |
| Noise dB(A) | 76±2 | 78±2 | 78±2 | 78±2 | 82±2 |
| Outlet diameter | DN80 | DN80 | DN80 | DN125 | DN125 |
| Weight (KG) | 4800 | 5000 | 5200 | 7600 | 7800 |
| L*W*H (mm) | 3300*1900*2300 | 3300*1900*2300 | 3300*1900*2300 | 4100*2200*2300 | 4100*2200*2250 |
| Cool water flow (T/h) | 20.0 | 22.0 | 25.0 | 36.0 | 39.0 |
| Cool air flow (m3/h) | 5300 | 63700 | 70000 | 72000 | 75000 |
| Model | VSD-450A/W | VSD-500A/W | VSD-600A/W | VSD-680A/W | VSD-760A/W |
| Air flow capacity (m3/min,/Mpa) |
66.2/0.7
65.5/0.8
55.2/1.0
49.8/1.3 |
75.1/0.7
73.5/0.8
65.0/1.0
53.0/1.3 |
82.0/0.7
81.0/0.8
71.0/1.0
60.0/1.3 |
89.5/0.7
89.0/0.8
79.0/1.0
67.0/1.3 |
100.5/0.7
100.0/0.8 |
| Power (KW/HP) | 355/450 | 400/500 | 450/600 | 500/680 | 560/760 |
| Noise dB(A) | 83±2 | 83±2 | 83±2 | 83±2 | 83±2 |
| Outlet diameter | DN125 | DN150 | DN150 | DN150 | DN150 |
| Weight (KG) | 9300 | 9400 | 9500 | 9800 | 11000 |
| L*W*H (mm) | 4100*2200*2300 | 4100*2200*2300 | 4100*2200*2300 | 4100*2200*2300 | 4100*2200*2300 |
| Cool water flow (T/h) | 42.0 | 48.0 | 51.0 | 54.0 | 57.0 |
| Cool air flow (m3/h) | 83000 | 95000 | 105000 | 115000 | 130000 |
NOTE:
1.Standard power supply: 380V ±10%/50HZ,460V/220V/6KV/10KV
other voltage type can be customized
2. A is for air cooling, W is for water cooling
3.11KW and the below are of direct start, 15KW and the above are of star delta start, soft starter can be customized
4.Appropriate Environmental temperature:-5°C-45°C
5.F.A.D capacity measured in accordance with ASMC PTC9 or ISO1217 (GB/T3853)
6.Transmission: direct drive
7. The type of discharge pressure below 1.7Mpa can be customized, feel free to consult.
pls: As our product is constantly being updated, any changes in the parameters or appearance are to be finally explained by our company.

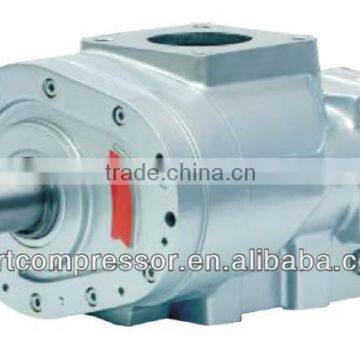

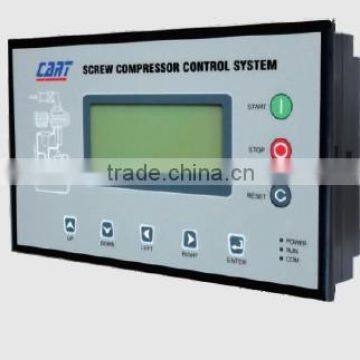

Detailed introduction of different parts
Comprehensive service
Pre-sales
The innovation design of cart air compressor not only save maintenance costs, but also ensure that a low system temperature and low compressed air temperature, make all parts achieve the best cooling effect and long life. Easy to open the door and save routine maintenance time. More air filter, oil filter, oil separator are designed to reduce downtime and maintenance costs.
Sales
In order to achieve satisfactions of more and more customers and establish long-term stable cooperative relations, we and our dealers provide professional service and technical training for every client in time. Feel free to consult us.
1,Free compressed air system consulting, design, planning and any other services; help customers have reasonable, economic, reliable compressed air system.
2,Organize air system training, provide professional person operating machine.
After-sales
1,We have a national sales network to meet the customer’s need which to repair and maintenance service and spare parts.
2,We provide 24 hours service and actively cooperate with the production needs
3,We provide these services:Parts delivery, installation, debugging, ensure that users can obtain professional and perfect service.
4,In order to know more news about the running of machines and regular tracking service, we help the customer establish the whole running documents.
5,Our professional engineers and the engineers of authorized dealers provide professional, rapidly, efficient service.
Air system solutions
Cart not only provides air compressor equipment, but also provides air compressor refrigeration dryers, adsorption dryers, air compressor precision filter, gas tank and related equipment.
1 The most energy-efficient, reliable, optimized air system solution design and construction
2 Special industries and special environment of the air system solution design and construction
3 Compressor power , power system optimization solutions for the design and construction
4 A variety of the central intelligent control and special control solution design and construction
5 The energy recovery system based solutions design and construction
