Help Center( 1.1~3KW) & 10 Bar High Quality Rotary Vane Compressor ER-200
Related Products
-
( 1.1~3KW) & 10 Bar High Quality Rotary Vane Compressor ERC500US$ 1000.00 - 1000.00MOQ: 1 Set -
( 1.1~3KW) & 10 Bar High Quality Rotary Vane Compressor ERC-400US$ 500.00 - 500.00MOQ: 1 Set
-
( 1.1~3KW) & 10 Bar Rotary Vane Compressor ERCS200US$ 500.00 - 500.00MOQ: 1 Set
-
( 1.1~3KW) & 10 Bar Rotary Vane Compressor ERA200US$ 600.00 - 600.00MOQ: 1 Set
-
(4-15KW)(7-13bar)Energy-saving Rotary Sliding Vane Air Compressor,0.5-2.35F.A.DUS$ 1 - 2,000MOQ: 2 Sets

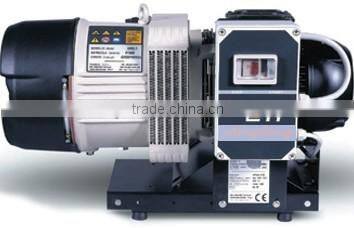

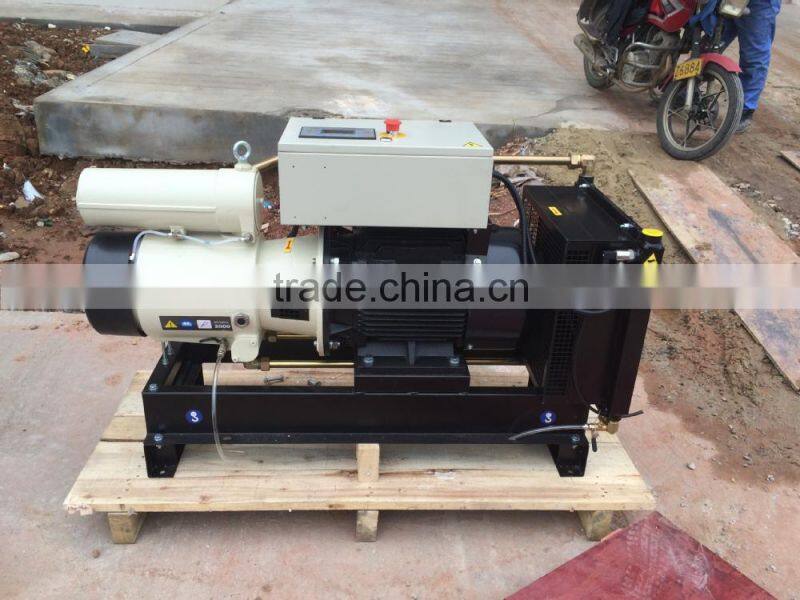

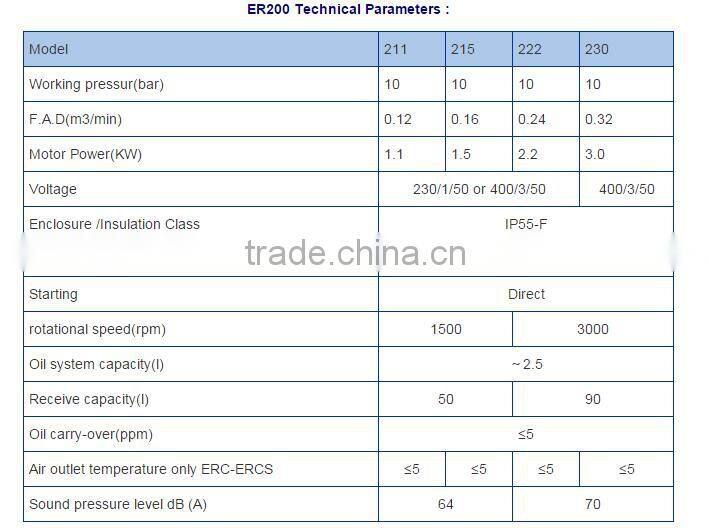

Power:1.1-3.0KW
Pressure:10bar
Capacity:0.12-0.32m3/min
The compressor can operate for 24h, satisfied the require of high quality gas consumption. The capability and reliability is the leader in compressor market.
1, a variety of models
ER: Basic type
ERC: with after-cooler type
ERS: with tank and pressure switch type
ERCS: with the cooler, gas tank and pressure switch type

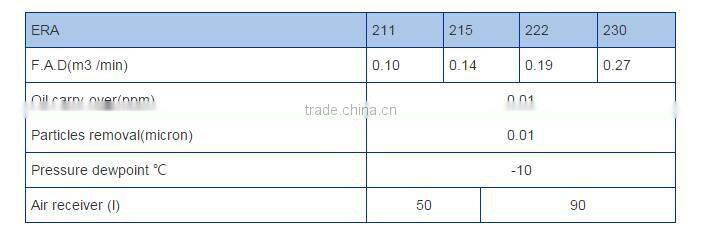

ERA: with adsorption air dryer type

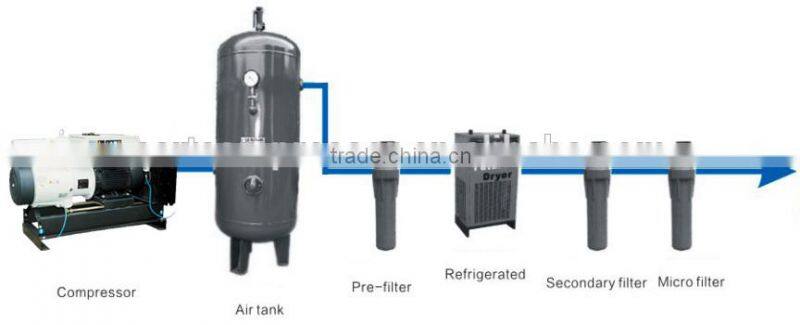

ERCSE: with after-cooler, air tank and refrigerated air dryer type
2, the standard configuration
-Starting safety
-High temperature protection
-gauge
-Flexible Couplings
-oil sight glass
-centrifugal cooling fan, oil cooler
-Constant automatic flow control
3,good air quality:
Air transportation continuously pulseless, steady pressure, without gas tank
Low-temperature clear compressed air: an efficient cooling system and the unique three-stage oil separation system, the exhaust air temperature just above environment 3-8K, the oil content is less than 5PPM.
4,automatic flow regulation:

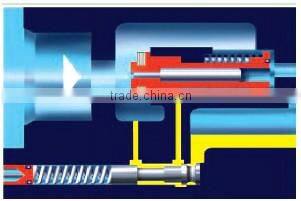

automatic inlet valve automatically adjusts the magnitude of the pressure valve opens, thereby regulating the air flow, and to ensure stable working pressure.
5,low noise level:
low noise, without vibration, it is suitable for broad environment.

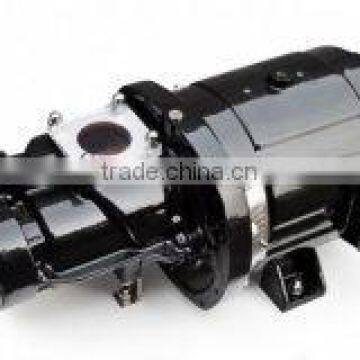

6,Air end:

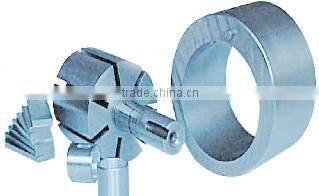

air end only have stator and eccentric operate rotor , rotor supported by sliding bearings instead of rolling bearings.

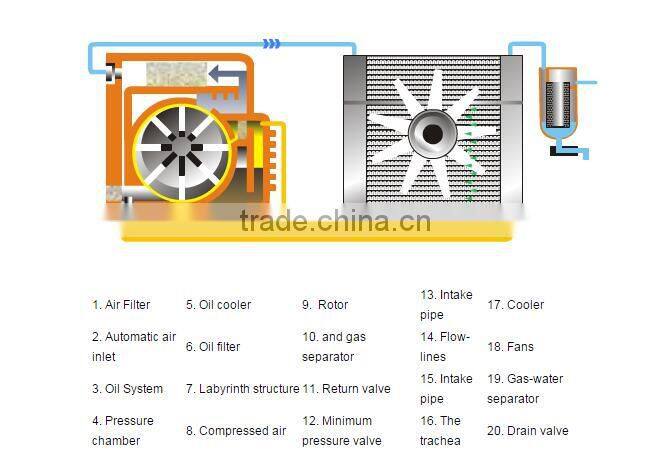

Air through a filter and a proportional valve and suction regulator, the regulator valve is mainly used to adjust the air cylinder, rotor and vane forming pressure chamber. Movement of the cylinder rotor to rotate relative to the eccentric amount of the minimum loss operation, the valve installed in the groove of the rotor and by centrifugal force to push the slide to the cylinder wall lubrication system to ensure efficient cooling of the compressor and the lubricant in the cylinder a thin film can be formed in the wall to prevent direct contact between the metal parts caused corner wear. In the compression process, the compressor rotor between the vane and decreasing the volume of the cylinder, the mixture gas is separated by filtration by mechanical separation and after compression, the compressed air in the oil content of less than 3PPM. Condensate is discharged after purification compressed air into the radiator to be cooled, cooling the formed water condensate separator via a drainage area of the electronic apparatus.
(CART) is recognized worldwide as the most outstanding air system solutions provider, based on the diverse needs of our customers continued innovation in the field of air compressor system equipment, mining machinery and equipment have established a leading position. With comprehensive strengths in the field of machinery and equipment, Cart has become the industry leader. Currently, our products and solutions have been used in more than 100 countries and regions, serving different industries worldwide
Anqing Cart Compressor Co., Ltd. is the United States (CART GROUP INC.) Authorized the production and marketing of professional manufacturers specialized in producing no oil piston compressor, screw air compressors, sliding vane air compressors and after air-handling equipment.
Cart has the most leading compressor system equipment manufacturing technology and the most remarkable team of experts, also has air system half a century of experience in production and manufacturing equipment, providing quality air system equipment and solutions for global users, the product was widely used in various fields.
In the Asia-Pacific region as a Cart compressor sales and manufacturing base, Anqing Cart Compressor Co., Ltd. to introduce the latest technology and advanced quality management system of Cart group,development and manufacture of high efficiency, high-quality air compressor system equipment.
