Home > Chemicals > Fiberglass Products > Other Fiberglass Products > FRP Grating Floor, Fire Proof, UV Protection
FRP Grating Floor, Fire Proof, UV Protection
US$ 3 - 5
MOQ: 200 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
yalong
Model Number:
frp grating floor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Frp/grp Platform Grating, Pultruded Frp/grp Fiberglass GratingUS$ 3 - 5MOQ: 200 Kilograms -
Anti-corrosive Fiberglass Grating Cover for Air Conditioner, InsulationUS$ 3 - 5MOQ: 200 Kilograms
-
High Strength Road Drainage Grates Fiberglass FRP Trench GratesUS$ 3 - 5MOQ: 50 Square Meters
-
Pultrusion FRP Grate FRP Floor Grating Fiberglass Trench GrateUS$ 3 - 5MOQ: 50 Square Meters
-
Pultruded Fiberglass Grating Floor Grating Trench GratingUS$ 3 - 5MOQ: 50 Square Meters
Place of Origin
Henan, China
Brand Name
yalong
Model Number
frp grating floor
Application
walkway, trench cover, platform,decks, patios,Pedestrian Ramps
Surface Treatment
as customer require
Technique
pultruded frp grating floor
Dimensions
25mm to 65mm thick
FRP Grating Floor, Fire Proof, UV Protection
Pultruded FRP flooring Grating is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grate.
long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through, so no painting is required.
Pultruded frp flooring grating advantages
- Corrosion Resistant.
- High Strength-to-Weight Ratio.
- Long Service Life.
- Fire Retardant.
- Slip & Impact Resistant.
- Nonconductive.
- Easy to Install & Fabricate.
frp flooring grating Applications:
Bridge walkways
Platforms
Trench Covers
Walkways
Pedestrian Ramps
Decks and Patios
Yalong Pultrusion fiberglass profile including:
fiberglass rod, round tube, channel, angle, I beam, square & rectangular tube, window frame, shutter blade, other structural profile, etc.
Above profile generally be assembled to:
Structural shapes
Fiberglass window and shutter
Pultruded Fiberglass Grating
Guardrail handrail fence
Insulation ladders and stairs
Tool handle
Cooling tower components
filler supports, anti-freeze board, grating walkway
Structure and support

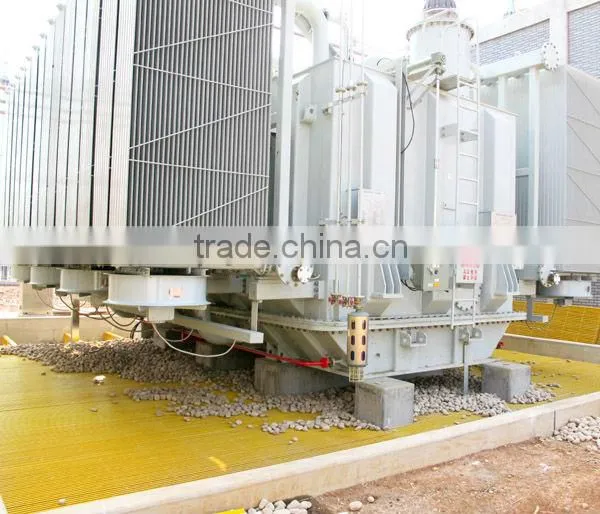

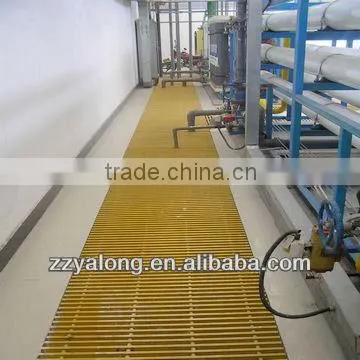

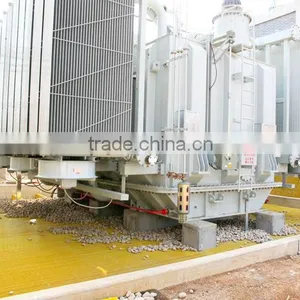

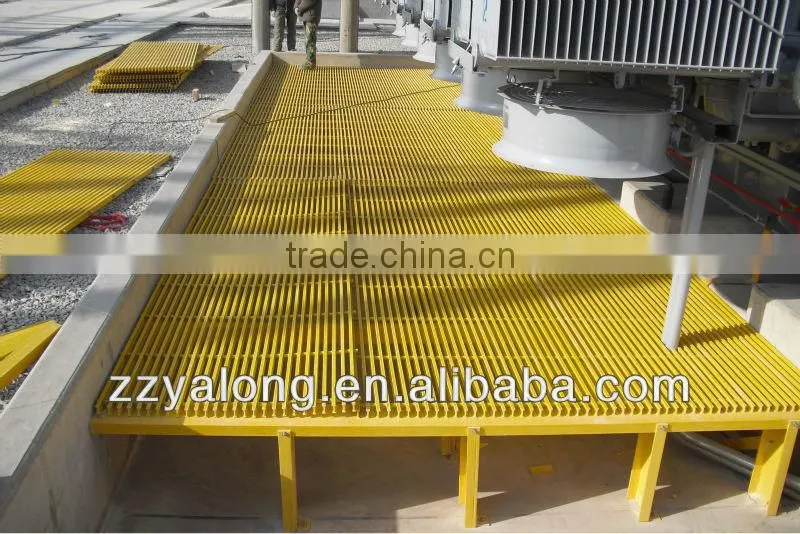

Yalong fiberglass product project photo
Yalong frp grating specification list:
| Item | Deep(A) inch |
Top edge(B) mm |
bottom edge(D) mm |
clearance width(C) mm |
Open area % |
Estimated weight kg/m2 |
| 5024 | 1 | 30 | 30 | 30 | 50 | 10 |
| 4025 | 1 | 15 | 15 | 10 | 40 | 17 |
| 5025 | 15 | 15 | 15 | 50 | 13.5 | |
| 6025 | 1 | 15 | 15 | 23 | 60 | 10 |
| 4038 | 1.5 | 15 | 15 | 10 | 40 | 26 |
| 5038 | 1.5 | 15 | 15 | 15 | 50 | 22 |
| 6038 | 1.5 | 15 | 15 | 23 | 60 | 13 |
| 4040 | 1.6 | 40 | 20 | 27 | 40 | 19 |
| 5040 | 1.6 | 40 | 20 | 40 | 50 | 17 |
| 6040 | 1.6 | 40 | 20 | 60 | 60 | 14 |
| 4040i | 1.6 | 30 | 30 | 20 | 40 | 14 |
| 5040i | 1.6 | 30 | 30 | 30 | 50 | 12 |
| 6040i | 1.6 | 30 | 30 | 45 | 60 | 10 |
| 6050 | 2 | 15 | 15 | 23 | 60 | 16 |
| 4058 | 2.2 | 15 | 15 | 10 | 40 | 32 |
| 5058 | 2.2 | 15 | 15 | 15 | 50 | 27 |
| 6058 | 2.2 | 15 | 15 | 23 | 60 | 22 |
| 4065 | 2.5 | 30 | 30 | 20 | 40 | 17 |
| 5065 | 2.5 | 30 | 30 | 30 | 50 | 15 |
| 6060 | 2.5 | 30 | 30 | 45 | 60 | 12 |
Goods packing
