UV Curing Lamps for Dry Ink

Name: UV Curing Lamps for Dry Ink
Brand: yuhang
SKU: 106115397
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

yuhang

Model Number:

YH-8-001

Contact Supplier Request Quote Chat Now

Linyi Yuhang Lighting Electric Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name yuhang

Model Number YH-8-001

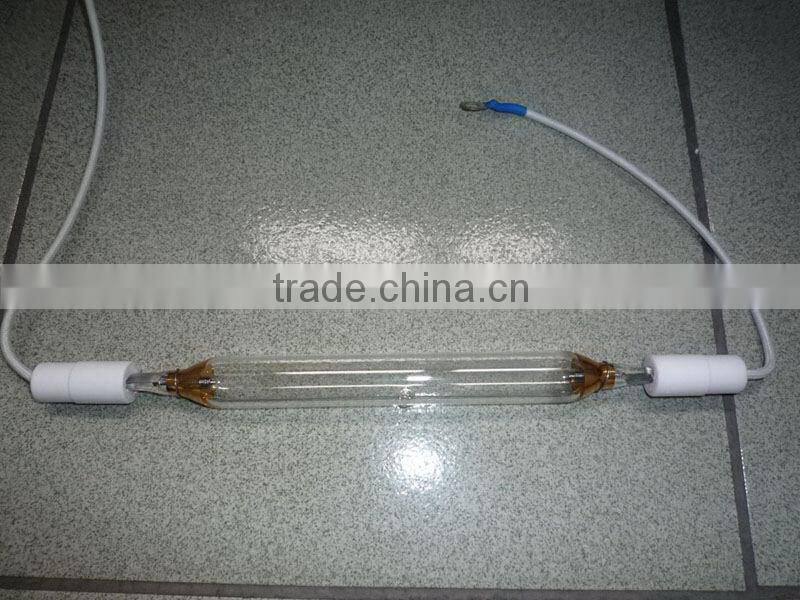

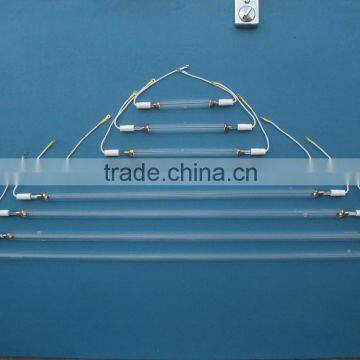

UV curing lamp is made of immaculate imported quartz glass, and intensively makes large ultraviolet penetrate. Its heating length is from 5MM to 300MM.

The regular power range is from 30/cm² to 200/cm².

And super big power is from 200W/cm2 to 400W/cm2.

Normally, standard UV Curving Lamp can give up enough ultraviolet radiation, to reach 8000hrs as lifetime.

UV lamp is commonly used in many applications: Graphic arts, Packaging, Label printing, UV lacquer, PCS manufacture, Metal decorating, Glass decoration, CD manufacturing, Inkjet printing, Optical lens costing, Automotive components, and adhesive curing.

Our real production ability is for 1KW to 31KW, the max. Length 2.8M

For Special OEM&ODM designs, we provide in-depth technical consulting by our R&D department and in-house testing facilities.

The comment Spec.

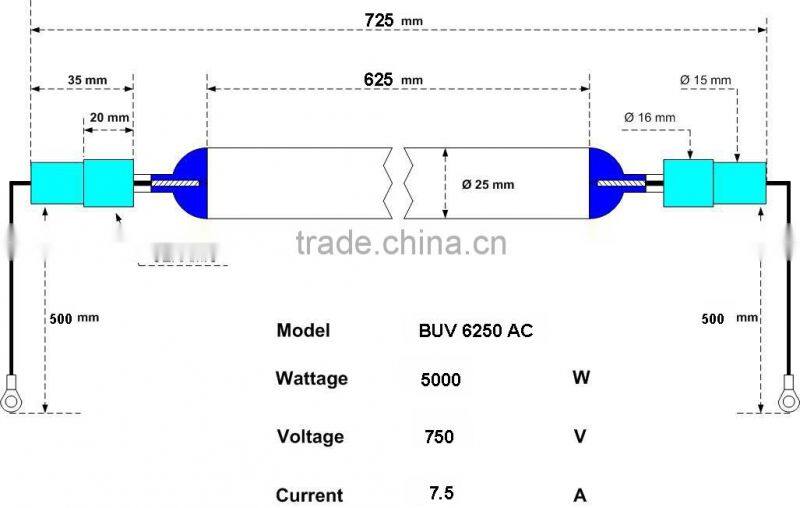

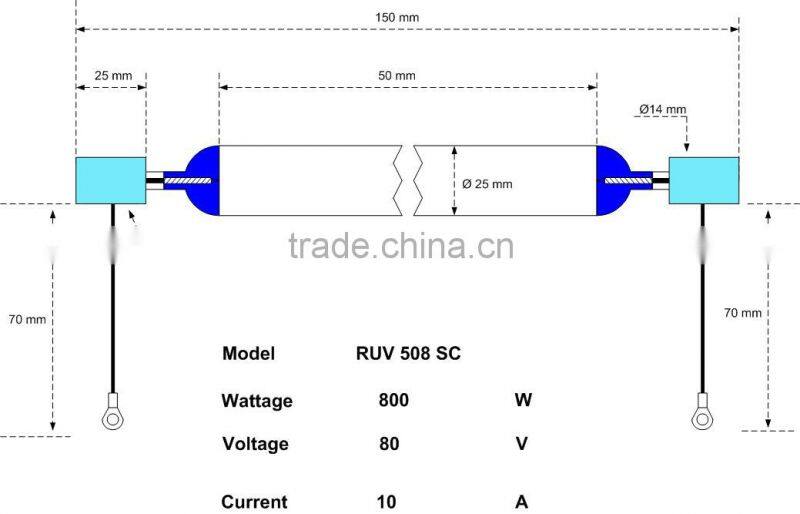

Wattage KW	Lamp Voltage V	Lamp Current A	Overall Length MM	ARC Length MM	Tube Diameter MM	Power Density W/cm2
1	135	8.1	225	125	25	80
1	135	8.1	335	200	25	50
2	300	7.5	400	250	22.5	80
3	700	5.0	360	250	25	120
3	700	5.0	620	460	22.5	50
4	500	8.8	485	340	25	120
4	620	7.2	664	508	22.5	80
5	700	7.8	700	600	25	80
5	750	7.5	725	625	22.5	80
5	750	7.5	775	625	22.5	80
5	850	6.3	778	625	22.5	80
5	850	6.3	804	653	20.5	80
6.0	850	7.8	640	500	22.5	120
6.5	900	7.5	1030	910	22.5	80
7.2	1150	7.0	1026	900	25	80
8	1200	7.5	1150	1000	22.5	80
8	1200	7.5	1320	1180	22.5	80
8.4	950	10.4	826	700	25	120
9.6	1570	6.6	1387	1247	25	80
11	1870	6.3	1575	1419	25	80
12	1800	7.5	1440	1300	25	90
13	1870	7.5	1807	1651	25	80
