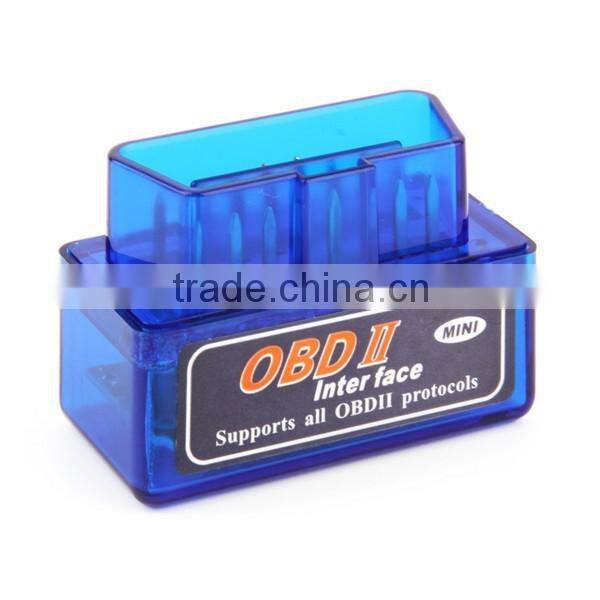

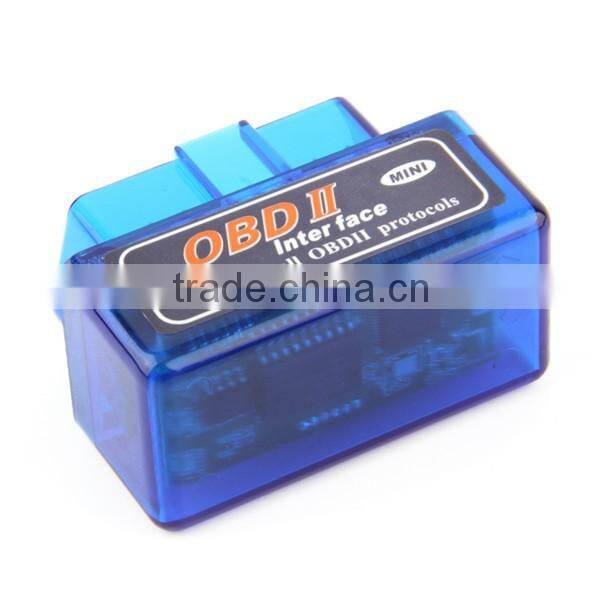

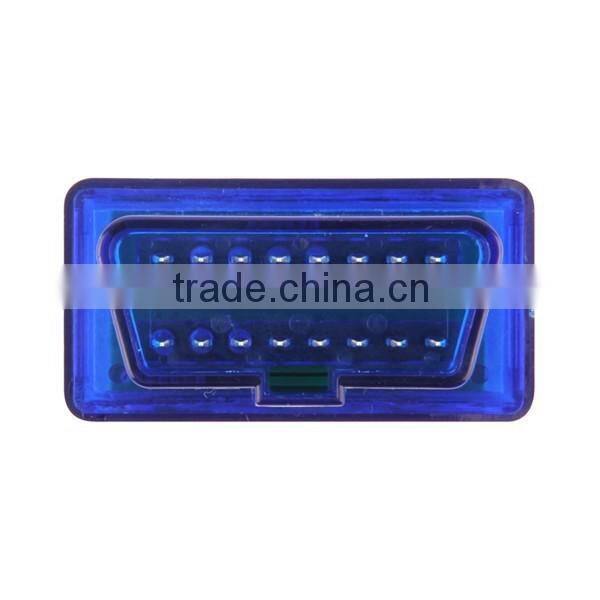

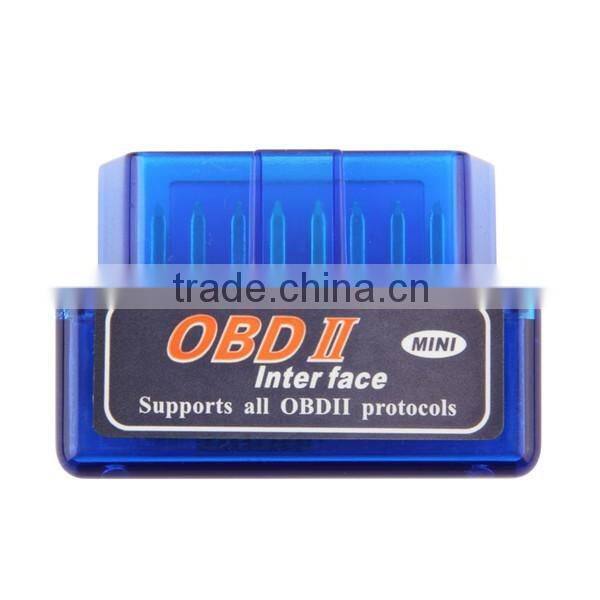

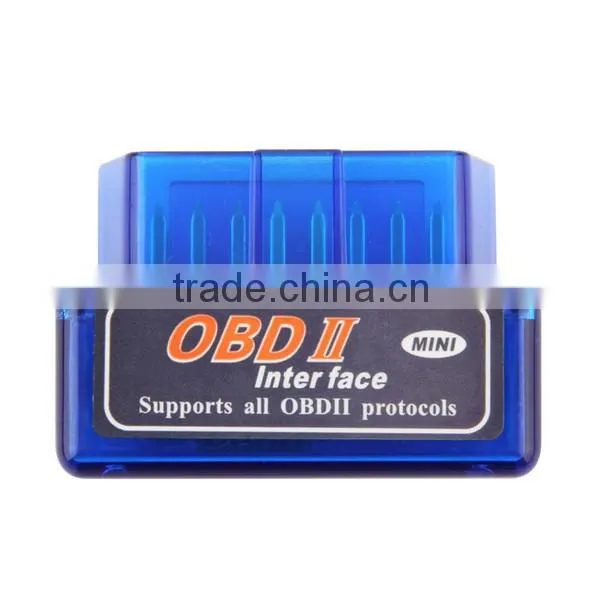

Help CenterDiagnostic Scanner for Car Automotivo Escaner Automotriz Mini V2.1 ELM327 OBD2 ELM 327 Bluetooth Interface Auto Car Scanner
Related Products
-
Car Rear View Camera Waterproof 170 Degree Wide Viewing Angle Reverse Backup CMOS/CCD Car Rearview Camera Monitor For ParkingUS$ 4.07 - 4.07MOQ: 10 Pieces -
Charm Warm Long Wool Fur Plush Car Steering Wheel Cover Woolen Car Handbrake AccessoryUS$ 0.65 - 0.65MOQ: 10 Pieces
-
Multi-functional Car Duster Cleaning Dirt Dust Clean Care Brushes Dusting Tool Mop GrayUS$ 1.18 - 1.18MOQ: 10 Pieces
-
2pcs NEW High Quality 6 LED Daytime Driving Running Light DRL Car Fog Lamp Waterproof White DC 12VUS$ 2.13 - 2.13MOQ: 10 Pieces
-
6 Hooks Motorcycle Hold Down Fuel Tank Mesh Net Luggage Helmet Mesh Net Mesh Bungee Mesh 5 ColorsUS$ 1.27 - 1.27MOQ: 10 Pieces
Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle Speed
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure
Specifications:
Model name: ELM327 OBD2 bluetooth
Type: code readers & scan tools
Output protocol: bluetooth
Material : plastic
Voltage: 12V
Current: 45mA
Wave frequency: 38400Hz
Applicable scope: 5-10m / 16.4-32.8ft
Item size: 4.8 * 2.5 * 3.4cm / 1.89 * 0.98 * 1.33in
Net weight:25 g
Weight:35 g
Support OBDII Protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
SAE J1939
J1979
Package Included:
1 * ELM327 OBD II bluetooth diagnostic interface
