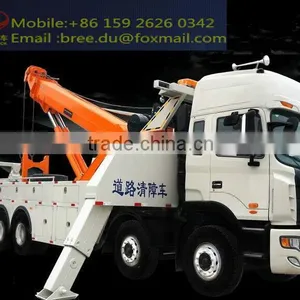

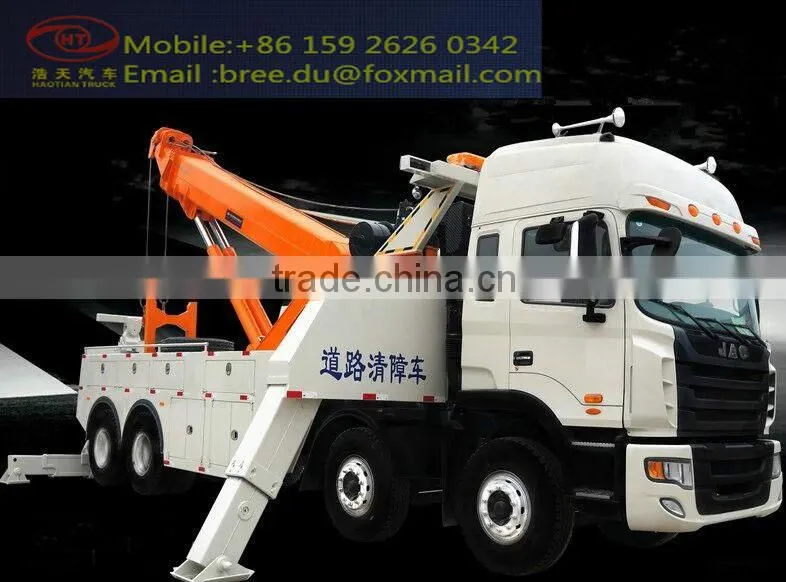

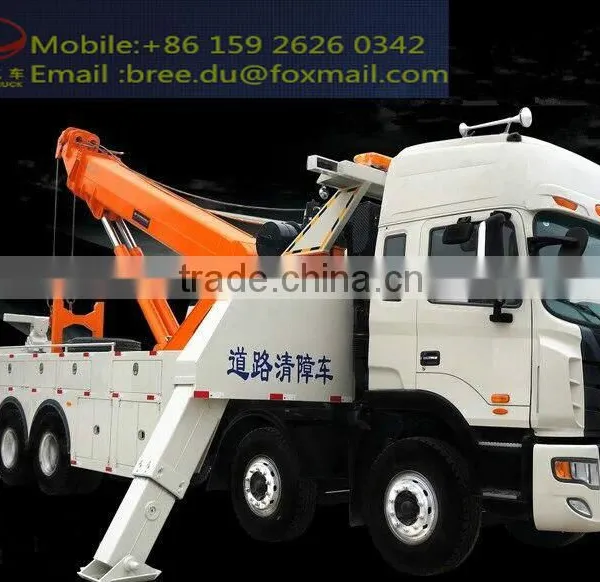

China best quality 8*4 rescue vehicle heavy wrecker

Road Wrecker

Model

Road wrecker

Dimension

9100*2480*3600,3690   (mm)

Chassis type

DFL1250A8(optional)

Cargo body size

XX

Total mass

 25000(kg)

Appearance / departure angle

20/14   (°)

Rated payload

5000  (kg)

F/R suspension

  1460/1990    (mm)

Kerb weight

19305 (kg)

Maximum speed

90(km/h)

Engine

ISDe230 30/ISDe245 30/ISDe270 30

Displacement

6700/6700/6700  (ml)

Power

169/180/198 (kw)

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Emission standard

GB3847-2005,GB17691-2005

Number of the axles

3

Front tread

1986 (mm)

Wheel base

 4350+1300 (mm)

Rear tread

1860/1860 (mm)

Number of the tires

10

Tire type

10.00-20,10.00R20,11.00-20,11.00R20

Fuel type

Diesel

Number of the springs

8/9

Axle load

4350+1300

Cab Passengers

 3

Notes

Lift Quality: 5500kg; optional high-roof cab; high-roof cab at the top of air horn are optional, the corresponding size of 3690mm Overall height

My Wrecker production plants can be divided into separate prop hanging type, body care hanging together, flat back set type, platform type lift. Separate Hanging care and the care that the crane arm can be working alone, independently of each other; care body lift in conjunction with the care that the crane arm linked together; flat-type back contains hanging through traction or vehicle to give back on a plate containing transport; platform-type lift platform, moving through the lift pass or high-altitude operations. According to Wrecker's crane, corbel-specific functions, can be divided into Wrecker crane rotary type, slide-type crane to shore up arm folding (load) type and so on. Wrecker with assisted steering, mainly used in tunnels, bridges and other venues operating on limited occasions.
