Specifications
Dongfeng 145 truck mounted crane factory directly sales1, a professional manufacturer
2, superior quality and good price

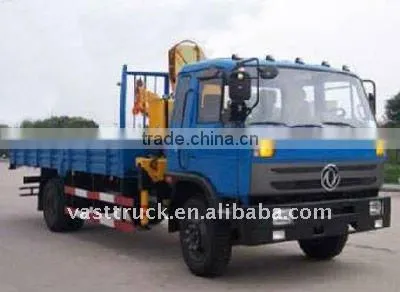

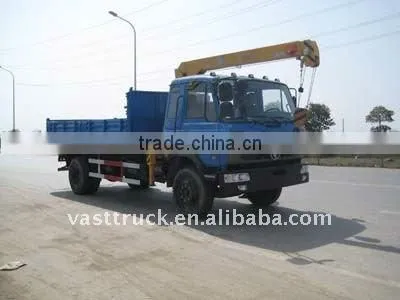

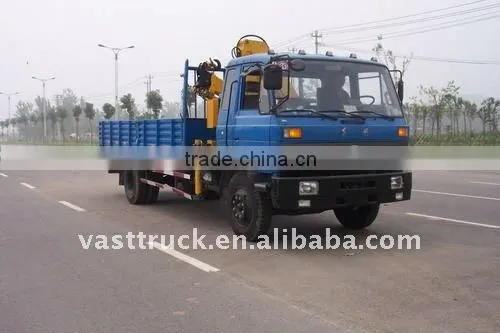

Dongfeng 145 truck mounted crane factory directly sales
Dongfeng 145 truck mounted crane factory directly sales
| Dongfeng 145 truck with loading crane Technical Parameters | |||
| Product | Dongfeng 145 truck with loading crane | Overall dimension | 9000×2490×3550 (mm) |
| Chassis model | EQ1120GLJ | Compartment dimension | 5800,6140×2294×600 (mm) |
| Gross weight | 12090 (kg) | Approach angle/Departure angle | 34/18 (°) |
| Rated payload | 3950,4700 (kg) | Front/rear suspension | 1250/2650 (mm) |
| Kerb weight | 7945,7195 (kg) | Max speed | 80 (km/h) |
| Engine | ISDe185 30 ISDe180 30 YC6J180-30 YC4E160-30 | ||
| Displacement | 6700 4500 6500 4260 (ml) | Power | 136 132 132 118 (kw) |
| Manufacturer | Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Guangxi Yuchai Power Co., Ltd./Guangxi Yuchai Power Co., Ltd. | ||
| Emission standard | GB3847-2005,GB17691-2005 Euro 3 | ||
| Axle nos | 2 | Front tread | 1900 (mm) |
| Wheelbase | 5100 (mm) | Rear tread | 1800 (mm) |
| Tyre nos | 6 | Tyre specification | 9.00-20 |
| Fuel type | Diesel | Leaf spring nos | 8/10+8 |
| Axle load | 4500/7590 | Passenger nos | 3 |
| Remarks | Optional folded arm type crane; crane model, weight, max lift capacity(Kg)SQ5SB2Q2150,5000;SQ4SA21300,4000 | ||
| Please contact us if you want more product information, we are ready to provide service for you | |||
The main products are
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck,garbage compactor truck,sealed garbage truck
9.Fecal suction truck,sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck,insulated truck,refrigeration truck
13. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc more than 300 types in total.
It is just a sample,if you have any firm request ,we can discuss the detailand get a best price
Contact information:
Contact with lisa for more information and price!
phone :0086 13997889077 (24 hours)
welcome to visit our company!
we will serve you best!
