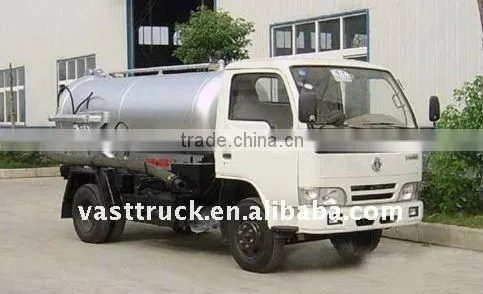

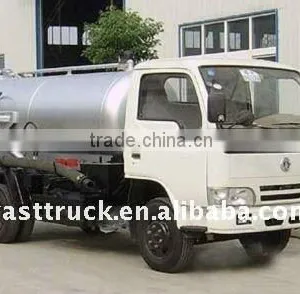

Dongfeng vacuum suction truck
- 500 Set / Sets per Month
- shanghai
- Multi-function dust suppression car spray car site dust cleaning road
- Environmental spray dust removal vehicle multi-functional road cleaning greening water spreader
- Kellywind small Dorica -5 square sprinkler Four Wheel Sprinkler
- Municipal sanitation cleaning car dust fog car sprinkler spray car
- Multi-functional sprinkler Sprinkler Bowser Spray Cleaning Transport and Delivery Truck
- The car mounted hedge trimmer adopts a Jiangling chassis
Product Details
Transmission Type: | Manual | Condition: | New | Emission Standard: | Euro 3 |
Fuel Type: | Diesel | Tank Volume: | 5m³ | Dimension (L x W x H): | 5995*2100*2250 |
Place of Origin: | Hubei, China | Brand Name: | DALI | Model Number: | DLQ5040 |
Horsepower: | 95HP | Gross Vehicle Weight: | 4495 |
Product Description
Specifications
Dongfeng vacuum suction truck4*2 Drive configuration
Preferential price
Dongfeng vacuum suction truck
Dongfeng XBW vacuum suction sewage truck Main technical parameters | |||
Model | Dongfeng XBW vacuum suction sewage truck | Dimension | 5995*2100*2250(mm) |
Chassis type | DLQ5040 | Cargo body size | (mm) |
Total mass | 4495 (kg) | Appearance / departure angle | 19/14(°) |
Rated payload | 1500,1435(kg) | F/R suspension | 1032/1663 (mm) |
Kerb weight | 2865 (kg) | Maximum speed | 95(km/h) |
Engine | CY4102-C3F/YC4F90-30/YN27CR/YN30CR/SD4BW70-3R | ||
Displacement | 3856/2659/2672/2977/2545(ml) | Power | 70/66/66/76/70 (kw) |
Manufacturer | Dongfeng Chaoyang Diesel Engine Co., Ltd. / Guangxi Yuchai Machinery Co., Ltd. / Chengdu Yunnei Power Co., Ltd. / Chengdu Yunnei Power Co., Ltd. / Jiangsu Sida Power Machinery Group Co., Ltd. | ||
Emission standard | GB3847-2005, GB17691-2005 | ||
Number of the axles | 2 | Front tread | 1506 (mm) |
Wheel base | 3300 (mm) | Rear tread | 1442 (mm) |
Number of the tires | 6 | Tire type | 7.00-16,6.50-16,7.00R16,6.50R16 |
Fuel type | Diesel | Number of the springs | 8/9+5,6/8+4 |
Axle load | 3300 | Cab Passengers | 2,3 |
Others | Tank effective volume of 1.50 cubic meters, tank dimension (mm) line segment length × diameter of 2480 × 950, with the optional cab chassis.
Our company produce vacuum suction sewage truck series main function is to suction and delivery of urban and rural sanitation sector droppings, mud, gravel and other debris mixed with more liquid suspension. Particularly suitable for sewage sludge within the pumping, shipping and unloading rows, especially in the stone can be suction drainage, bricks and other large objects. Artesian pressure discharges and emissions are emissions in two ways. Suction sewage truck with a suction, high efficiency, self-absorption, self-row and direct irrigation and other characteristics, the operation quickly and easily. Suitable for large, medium and small towns sanitation, municipal departments!
Function Description:
Suction sewage truck is mainly used for sewers, stormwater wells, manholes, septic tanks and all kinds of drains within the sludge, chemical waste or oil tank sludge sewage pumping, shipping and scheduling unloading. Can be self-priming sewage pump suction from the row, smoking may be hydraulic dump sewage tank, hydraulic rear cover can be opened, a high degree of vacuum suction sewage truck, smoking Cheng Yuan. |
