Dongfeng Vacuum Truck

Name: Dongfeng Vacuum Truck
Brand: DALI
SKU: 106102717
Availability: InStock

US$ 20,000 - 50,000 MOQ: 1 Set

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 3

Hubei Haotian Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 3

Fuel Type Diesel

Tank Volume 8m³

Dimension (L x W x H) 7350*2495*3050

Place of Origin Hubei, China

Brand Name DALI

Model Number DLQ5

Horsepower 160HP

Gross Vehicle Weight 11000

Specifications

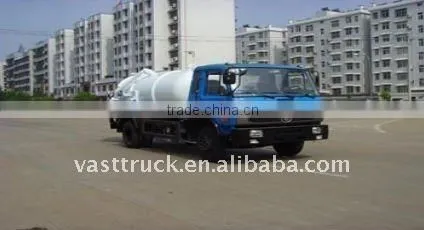

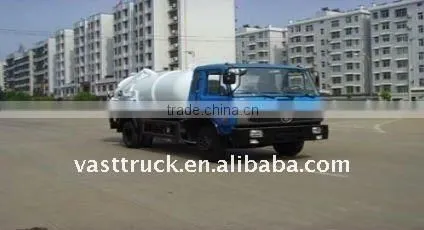

Dongfeng vacuum truck
Preferential prices, welcome to choose and buy!

Dongfeng vacuum truck

Item		unit	parameter
Vehicle model			DLQ5110GXW Sewage Suction Truck
Chassis model			EQ1108G6DJ16
Overall dimensions		mm	735024953050
	Fact cubage	L	6750-7000
	Mass in working order	kg	6120
	Tank dimensions	mm	4450×1500×1500
	Wheel base		3950
	F/R track base		1900/1800
	Approach/departure angle	°	30/18
Exhaust/hp		ml/kw	5880/118
Max speed		km/h	90
Tire specification		9.00-20	Engine type	EQB160-20
Traction system		4×2	Transmission	6-speed
Number of axles		2	Electric system	24v
Operation control system		Power Steering	Allowable passengers in cab	3
Equipment		Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed 800r/m, max suction lift6m, vacuum500mmHg,clockwise) Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full suction 5min
Engine		Dongfeng Cummins Diesel Engine (Europe 2)
Production cycle		6-7 days
Warranty		12 month, from the date of supply
