Specifications

Model AT040-AT270 Angle of rotation 0-180 Pressure range (bar)
2--8 Operating temperature () -20--+80 Torque (Nm)
8

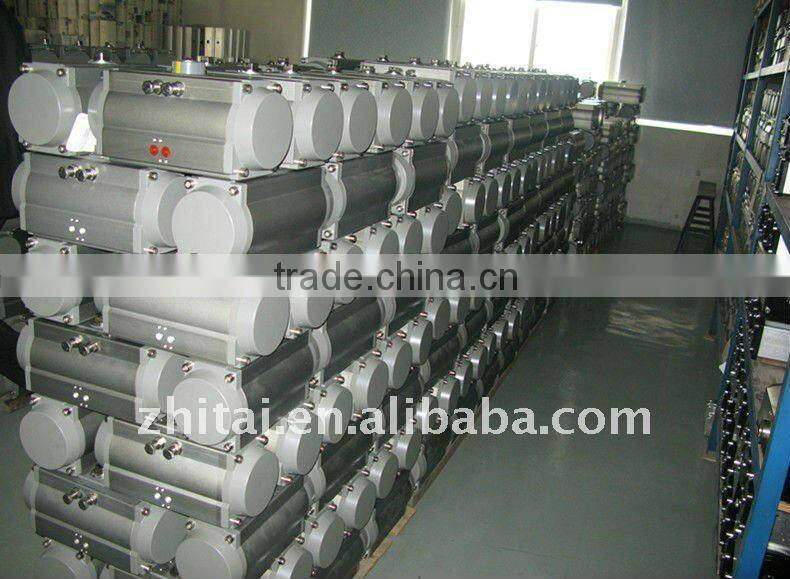

 ZHITAI   Pneumatic actuator pressure gauge air/ air shutoff and air control Pneumatic actuators/ cylinder hydraulic/ Pneumatic   actuators

Feature

1. The design of rack and pinion double-piston

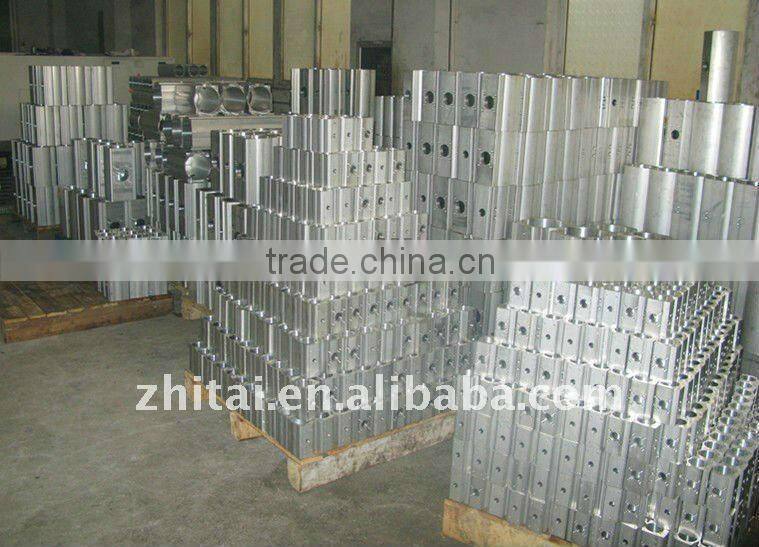

2.The extruded high-quality aluminum alloy cylinder ,its longer service life and low friction coefficient.

3.Unibody design ,double acting and single acting have the same cylinder and end cap.

4.Four adjusting screws can make the actuator more accurate .

5.Position indicator consistent with VID/VIE3845,NAMUR standards.

6.The gas source interface in line with NRMAR standard.

7.All fasteners are made of stainless steel ,to enable long-term corrosion resistance.

8.The connection parts are in line with new international standards ISO5211 and DIN3337(F03-F25).



BASIC INFORMATION OF valve

Model : ZTQ61(6,8,2)F (N, P, H, Y )

Bore: DN10-100mm

Pressure: 1.6, 2.5, 4.0, 6.4 Mpa: 150Lb, 300Lb, 600Lb:

Dimension standard: GB, ANSI, JIS

Body material: Carbon steel(WCB), Stainless steel(CF8, CF8M, CF3, CF3M)

Seat material: PTFE, PPL, N, H, Y

Mode of action: double-acting, single-acting (spring reposition)

Control: Switch , Adjust .

Selection of Accessories: solenoid valve, locator, limit switch, F.R..L. Combination unit.

                     Manua Device.
