Specifications
ISO9010, CE certificate,ATEX/CE/MD/CQC.1)Size 2" Up to 120"
2)Manufactured API609
3)End connection RF, BW, Wafer

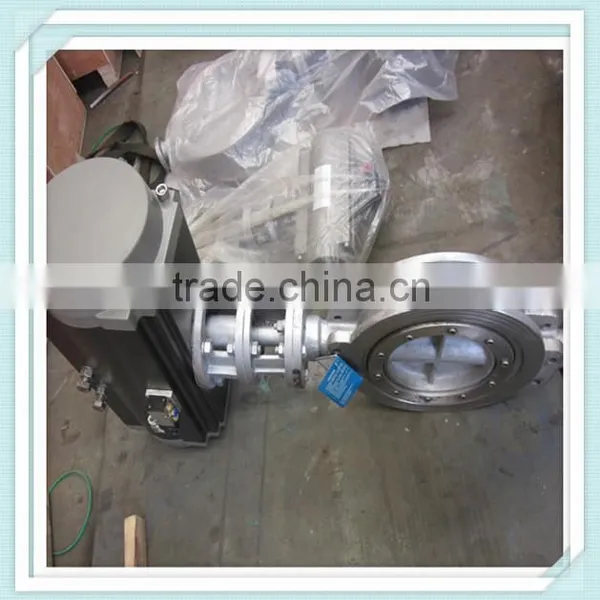

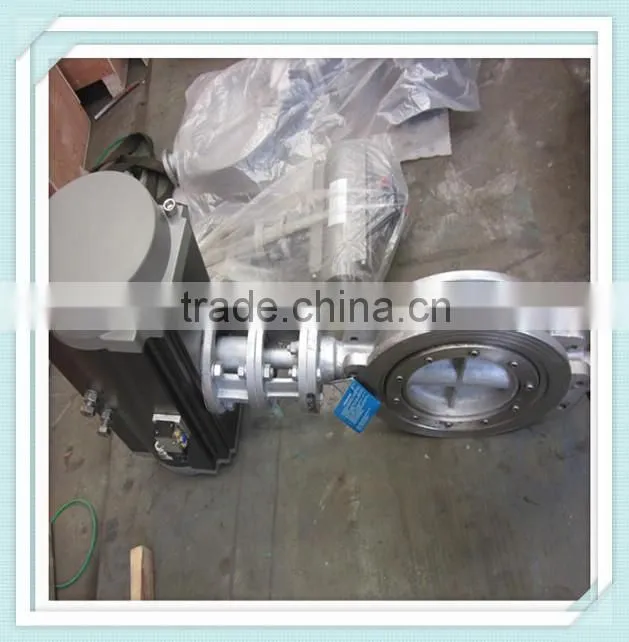

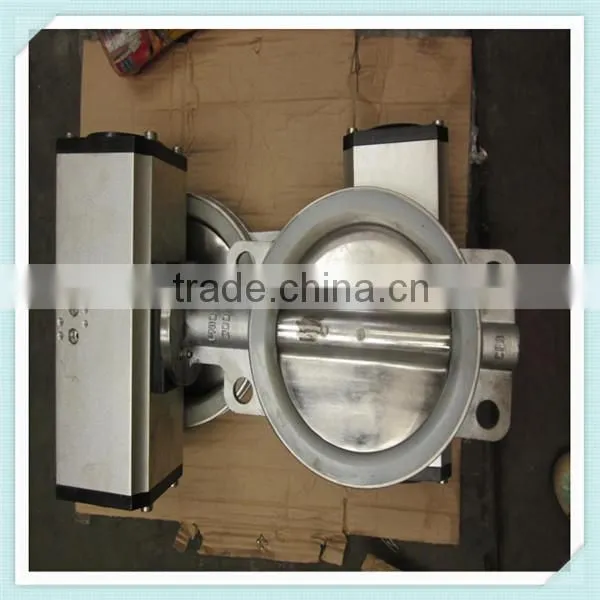

Pneumatic flange butterfly valve
DETIAL: wafer type gear operated price butterfly valve
| Standard and Price | |
| FIG NO. | 2302 |
| Price Range | $9-$2990 |
| Valve Standard | Comply with ISO 5752/BS 5155/BS EN 593/MSS SP-67/API 609 |
| Pressure Temprature and Rating | |
| Working Pressure | 16bar/25bar |
| Testing Pressure | Shell: 24bar/37.5bar |
| Seal: 17.6bar/27.5bar | |
| Working Temperature | -20°C to 110°C EPDM Seat |
| -10°C to 80°C NBR Seat | |
| Suitable Media | Water, Oil & Gas |
| Material Specification | ||
| Part | Material | EN Spec. |
| Body | Cast Iron | A126 Class B |
| Ductile Iron | A536 Gr. 65-45-12 | |
| Disc | Ductile Iron | A536 Gr. 65-45-12 |
| Bronze | B148 C95400 | |
| Stainless Steel 304 | A351 CF-8 | |
| Stainless Steel 316 | A351 CF-8M | |
| Shaft | Stainless Steel 410 | A276 S 410 00 |
| Stainless Steel 431 | A276 S 431 00 | |
| Seat Ring | EPDM / NBR | |
| O-Ring | EPDM / NBR | |
| Bushing | PTFE | |
| Bronze | B62 C83600 | |
Our product features are as follows:
This wafer type gear operated price butterfly valve could be made in different standard,such as,ISO,BS,MSS,API.
Butterfly Valve
A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of adisk. Operation is similar to that of a ball valve, which allows for quick shut off.
The features of butterfly valve
1.Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required.
2.The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve.
3.Rotating the actuator turns the disc either parallel or perpendicular to the flow.
Welcome your inquiry and order.
Welcome to visit our factory.
