Specifications
Butterfly Valves With Pneumatic ActuatorHigh quality and Competitive price
OEM Provide and 24 hours service

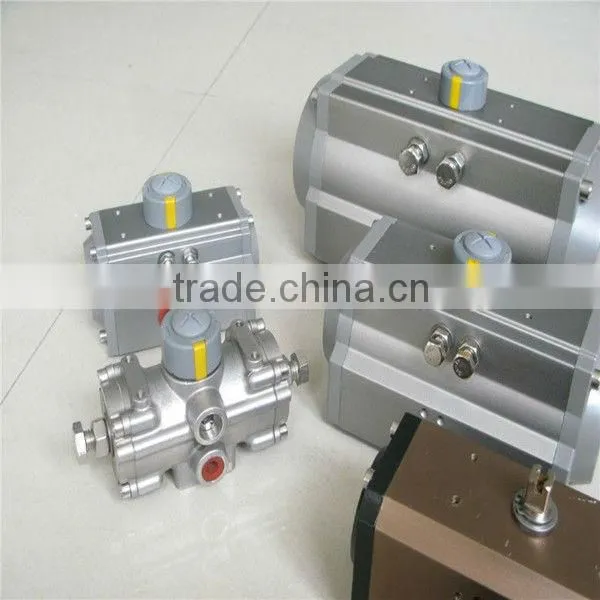

Aluminum pneumatic valve actuators DA160
Specifications
1. High quality and inexpensive,fast delivery.
2.ISO9001, CE certificate,ATEX/CE/MD/CQC.
3. We often take Large-scale exhibition
Feature:
Pneumatic actuator:
| Model | Angle of rotation | Operating temperature (°C) | Pressure range (bar) | Torque (Nm) |
| AT040—AT270 | 0°-180° | -20--+80 |
2--8 | 8.5--5496 |
1. The design of rack and pinion double-piston
2.The extruded high-quality aluminum alloy cylinder ,its longer service life and low friction coefficient.
3.Unibody design ,double acting and single acting have the same cylinder and end cap.
4.Four adjusting screws can make the actuator more accurate .
5.Position indicator consistent with VID/VIE3845,NAMUR standards.
6.The gas source interface in line with NRMAR standard.
7.All fasteners are made of stainless steel ,to enable long-term corrosion resistance.
8.The connection parts are in line with new international standards ISO5211 and DIN3337(F03-F25).
Pneumatic ball valve:
Model : ZTQ61(6,8,2)F (N, P, H, Y )
Bore: DN10-100mm
Pressure: 1.6, 2.5, 4.0, 6.4 Mpa: 150Lb, 300Lb, 600Lb:
Dimension standard: GB, ANSI, JIS
Body material: Carbon steel(WCB), Stainless steel(CF8, CF8M, CF3, CF3M)
Seat material: PTFE, PPL, N, H, Y
Mode of action: double-acting, single-acting (spring reposition)
Control: Switch , Adjust .
Selection of Accessories: solenoid valve, locator, limit switch, F.R..L. Combination unit.
Manua Device.
More detailed information, please feel free to contact with us.
