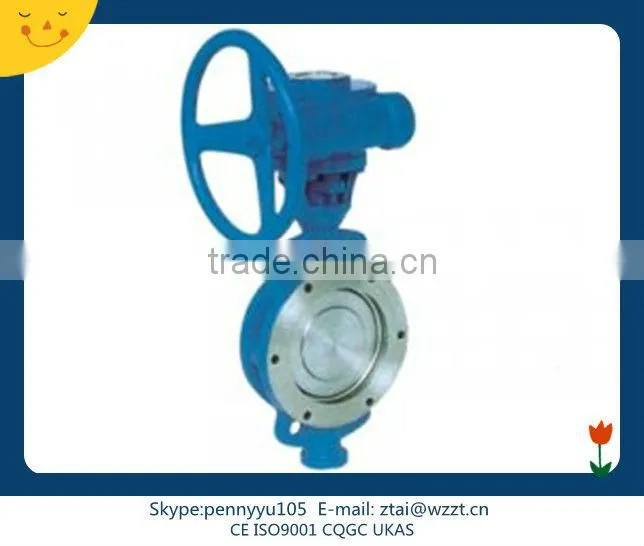

Butterfly Valve

Name: Butterfly Valve
Brand: ZhiTai
SKU: 106084969
Availability: InStock

US$ 10 - 5,000 MOQ: 1 Set

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Angle

Pressure:

Medium Pressure

Zhejiang Zhitai Self-Control Valve Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Angle

Pressure Medium Pressure

Power Pneumatic

Material Alloy

Temperature of Media Normal Temperature

Media Water

Port Size 8.5-5496mm

Place of Origin Zhejiang, China

Model Number AT040-AT280

Brand Name ZhiTai

Specifications

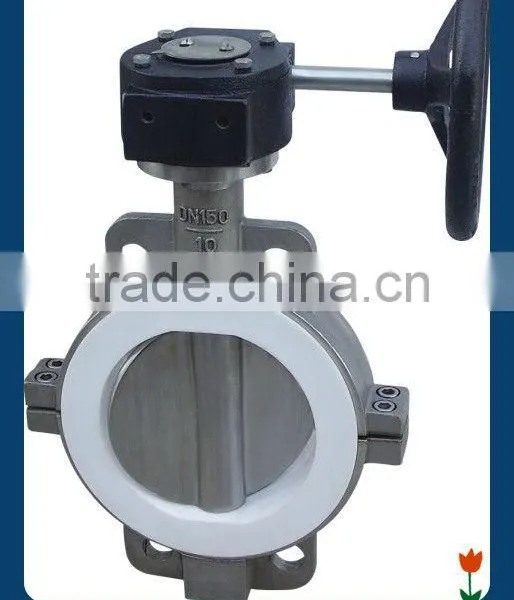

Supply butterfly valve, Lug type butterfly,wafer butterfly valve, butt weld butterfly valve and flange type butterfly valve

Materials List (Butterfly Valve)

NO	Part Name	Materials
1	Body	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF3	ASTM A351 CF8M	ASTM A351 CF3M
2	Pin	ASTMA29-1035/A276 304	ASTM A276 304	ASTM A276 304L	ASTM A276 316	ASTM A276 316L
3	Stem	420/304/316	304	304L	316	316L
4	Disc	WCB/CF8/CF8M	A351 CF8	A351 CF3	A351 CF8M	A351 CF3M
5	Seal Ring	304/316+Graphite/PTFE	304+Graphite/PTFE	304L+Graphite/PTFE	316+Graphite/PTFE	316+Graphite/PTFE
6	Retainer Flange	A105/A182/F304/F316	F304	A182 F304L	A182 F316	A182 F316L
7	Bolt	B7/B8/B8M	B8	B8	B8M	B8M
8	Bolt	B7	B8	B8	B8M	B8M
9	Cover	A105	A182 F304	A182 F304L	A182 F316	A182 F316L
10	Gasket	Graphite	Graphite	Graphite	Graphite	Graphite
11	Bushing	Luberized bronze 304 Nitriding	304 Nitriding	304L Nitriding	316Nitriding	316L Nitriding
12	Packing Seat	A105/304	304	304L	316	316L
13	Packing	Graphite	Graphite	Graphite	Graphite	Graphite
14	Nut	A194 2H	A194 8	A194 8	A194 8M	A194 8M
15	Bolt	A193 B7	A193 B8	A193 B8	A193 B8M	A193 B8M
16	Yoke	WCB	WCB Galvanization,CF8
Drive actuator		Hand actuator, Electric, Electric actuator, Worm gear actuator, Pheumatic actuator.
