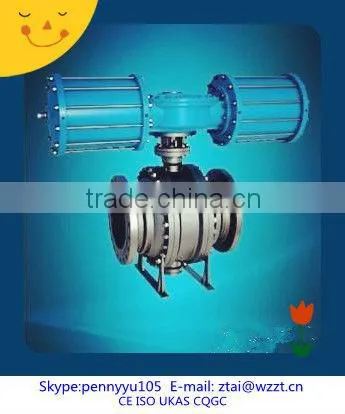

ZTQ647F Pneumatic Fixed Type Ball Valve of JIS Standard
US$ 10 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZTQ647F Pneumatic Fixed Type Ball Valve of ANSI StandardUS$ 10 - 5,000MOQ: 1 Set -
ZTJ641h-PN16-40 Ansi Casting Steel Flanged Globe ValveUS$ 10 - 5,000MOQ: 1 Set
-
Folder Butterfly Center ValveUS$ 15 - 3,000MOQ: 1 Set
-
Manual Brass Ball ValveUS$ 10 - 1,000MOQ: 1 Unit
-
Pneumatic Control Valve Actuator, High Quality Pneumatic Control Valve Actuator,Pneumatic Valve Actuator,Pneumatic CylinderUS$ 15 - 3,000MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Ball
Pressure
High Pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
High Temperature
Media
Gas
Place of Origin
Zhejiang, China
Model Number
AT040-AT280
Brand Name
ZhiTai
Specifications
Pneumatic Carbon Steel Ball ValveDocument: ISO9001, CE certificate,ATEX/CE/MD/CQC.
pneumatic fixed type ball valve/ ZTQ647F Pneumatic fixed Type Ball Valve of JIS Standard
model: Q647F(N,P,H,Y)

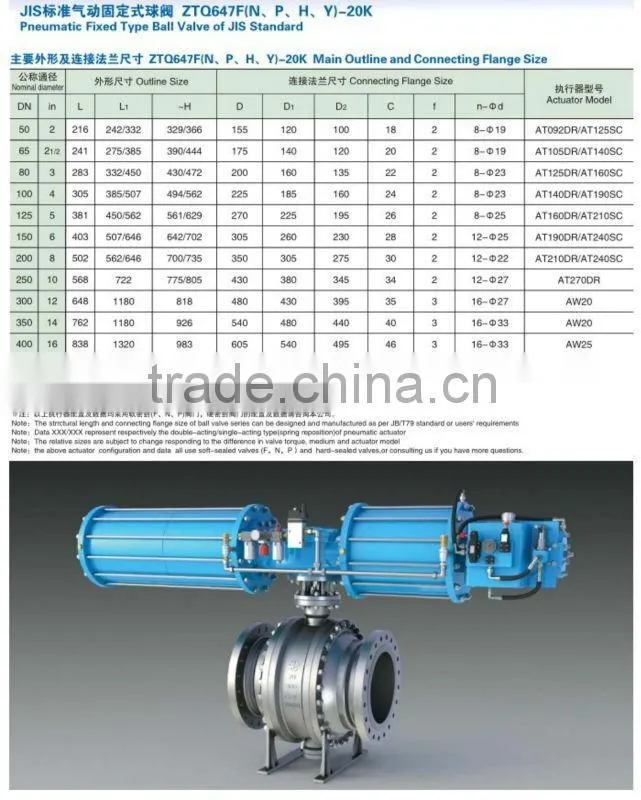

size:DN25~600MM
pressure:1.6,2.5,4.0,6.4Mpa.150lb,300lb,600lb.10k,20k
structure:fixed

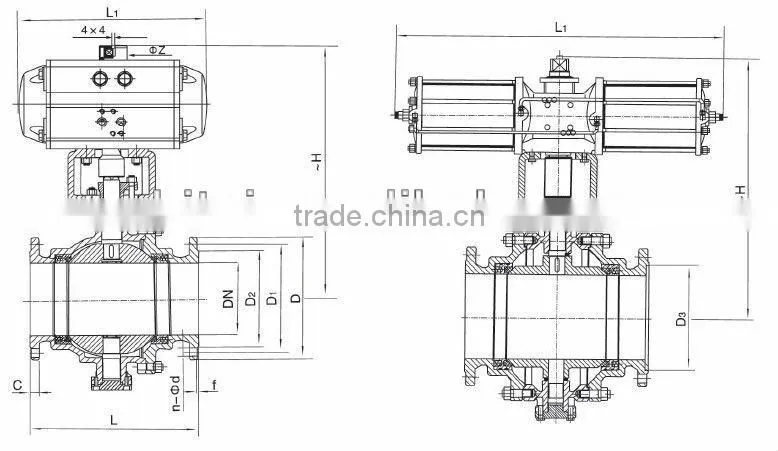

dimension standard:GB,American Standard,Japanese standard
body material:carbon steel(WCB),stainess steel(CF8,CF8M,CF3,CF3M)
seat material:PTFE,PPL,N,H,Y

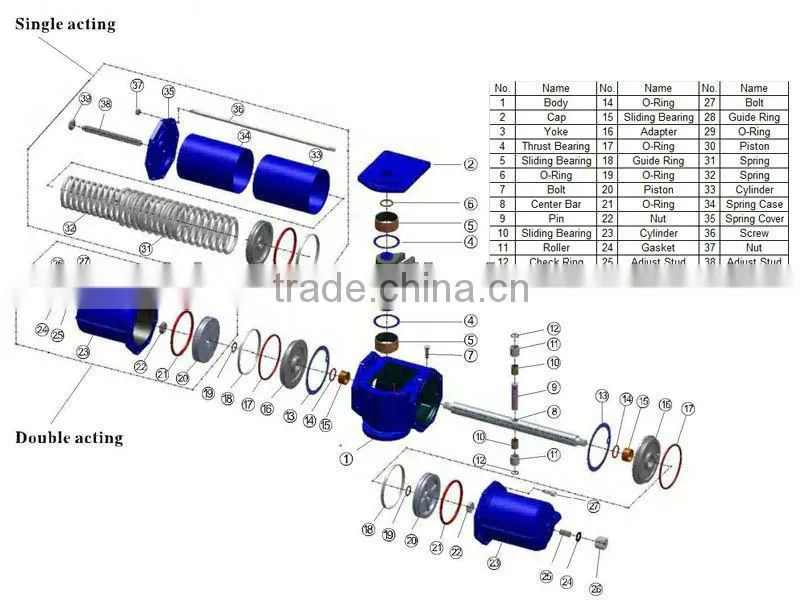

mode of action:the double-acting/singel-acting type(spring reposition)of pneumatic actuator
control:switch type,adjust type
selection of accessories:sonlenoid valve,locator,limit switch,F.R.L,COMBINATION UNIT,manual device.
