Specifications
The features of the U-profile glass:1.Ideal light transmission
2.good sound insulation
3.excellent heat insulation

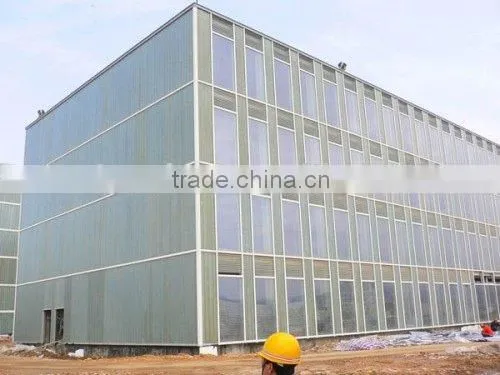

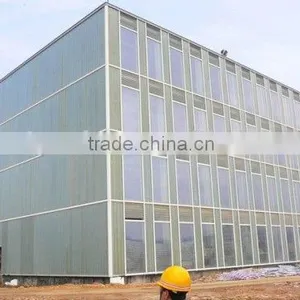

U-profile glass is an new and unique kind of construction glass,enjoying over 40 years history of production and applications.Thanks to its U shaped section,its mechanical strength is higher than ordinary plating glass.It has much advantage such as ideal light transmission,good sound insulation,excellent heat insulation,reservation and convenient installation.This product is the first -choice construction material for interior walls,exterior walls,partitions,roofs and windows etc.Using U-profile glass, a lot of metal materials can be saved.
Product range Dimension (mm)
Type |
Channel width±2 |
Flange height |
Thickness |
Max. length±3 |
Weight (approx.)kg/m |
SQ26 |
260 |
41 |
6 |
6000 |
4.75 |
260 |
60 |
7 |
7000 |
6.50 |
|
SQ33 |
330 |
41 |
6 |
6000 |
5.60 |
330 |
60 |
7 |
7000 |
7.70 |
|
SQ50 |
500 |
41 |
6 |
6000 |
8.40 |
500 |
60 |
7 |
7000 |
10.20 |
|
| |||||
Technical data
Type |
Light transmission{single} |
Light transmission {double} |
Heat transmission {single} |
Heat transmission {double} |
Sound insulation |
Sound insulation |
SQ Profile uglass (smooth surface) |
89.00% |
81.00% |
4.95W/M2K |
2.39W/M2K |
27.00db |
38.00db |
Physical and mechanical characteristics
Compression strength |
Extension strength |
Moh's hardness |
Modulus of elasticity |
Linear expansion |
700-90ON/mm2 |
30-5ON/mm2 |
6-7 |
60000-70000N/mm2 |
75-85X10-7/oC |
Normal color is white. Blue, brown,other colors and wired are also available .
Tempered U-profile glass can be supplied on request
If you want detailed info,I will be more than happy to help in any way I can.
Packing: Film between sheets, in wooden case with sheet iron.
Delivery time : 10- 15 days
MOQ: 1* 20 feet container
Supply ability: 300 --400 sq mt per day
FOB Ningbo , Shanghai ,ot other Chinese main port.
CIF destination
