Zhejiang Zhitai 3pcs ISO5211 Direct Mounting Pad Butt-Weld Float Ball Valve

Zhejiang Zhitai 3pcs ISO5211 Direct Mounting Pad Butt-Weld Float Ball Valve thumbnail-1
Zhejiang Zhitai 3pcs ISO5211 Direct Mounting Pad Butt-Weld Float Ball Valve photo-1
US$ 10 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Zhejiang Zhitai Self-Control Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure High Pressure
Power Pneumatic
Material Alloy
Temperature of Media Normal Temperature
Media Water
Port Size 8.5-5496mm
Place of Origin Zhejiang, China
Model Number AT040-AT280
Brand Name ZhiTai

Specifications

pneumatic ball valve
1.High quality and inexpensive,fast delivery
2.ISO9001, CE certificate,ATEX/CE/MD/CQC

Zhejiang Zhitai 3pcs ISO5211 Direct Mounting Pad Butt-Weld Float Ball Valve

Working pressure:1000WOG

Temperature:-20-250°

Suitable medium: Water,Oil,Gas and some Corrosive liquid

Standards compliance

Butt welded: GB12224.ANSI B 16.25



Dimension table



DN(inch)
Φd
L
H
H1
A
W
ΦB
ΦE1
ΦE2
P
ΦU1
ΦU2
1/2"
15
72
42
72
8
135
22.7
36
42
9
6
6
3/4"
20
81
48.5
80
9
135
27.5
36
42
9
6
6
1"
25
98
58.5
90
11
170
33.5
42
50
11
6
7
1-1/4"
32
112
63
95
11
170
42
42
50
11
6
7
1-1/2"
38
126
71
106
14
200
48.6
50
70
14
7
9
2"
50
145
78
113
14
200
60.5
50
70
14
7
9
2-1/2"
65
176
100
149
17
300
76.3
70
102
17
9
11
3"
76
200
109
159
17
300
90
70
102
17
9
11
4"
100
227
140
205
22
400
106.5
-
102
22
-
11

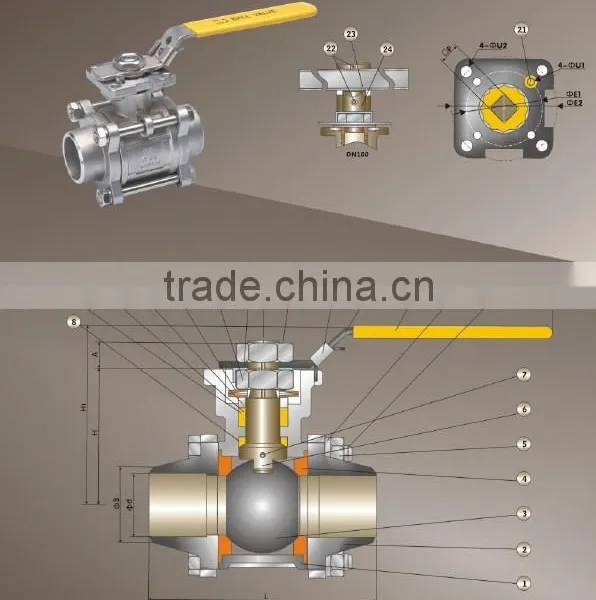

Main parts and materials



No.
Parts Description
Material
1
Body
CF8M
CF8
WCB
2
Bonnet
CF8M
CF8
                  WCB
3
Ball
SS316
SS304
4
Seat
PTFE  RPTFE  PPL
5
Nut
A193-B8
A193-B7
6
Stem
SS316
SS304
2Gr13
7
Anti-Static
SS304
8
Thrust Washer
PTFE
9
Packing
PTFE
10
Transition Washer
RPTFE     Expanded Graphite
11
Packing Ring
SS304
12
Belleville Washer
SS304
13
Nut
SS304
14
Loose Resistant Cover
SS304
15
Spring Washer
SS304
16
Nut
SS304
17
Handle Nut
SS304
18
Stop Plate
SS304
19
Handle
                                        SS304
20
Handle Cover
Plastic
21
Stop Bolt
SS304
22
Lock Screw
SS304
23
Handle
SS304
24
Hand Adapter
CF8





More information please feel free to contact with us.
