Home > Products > Actuators-accessories > 5/2 Solenoid Valves

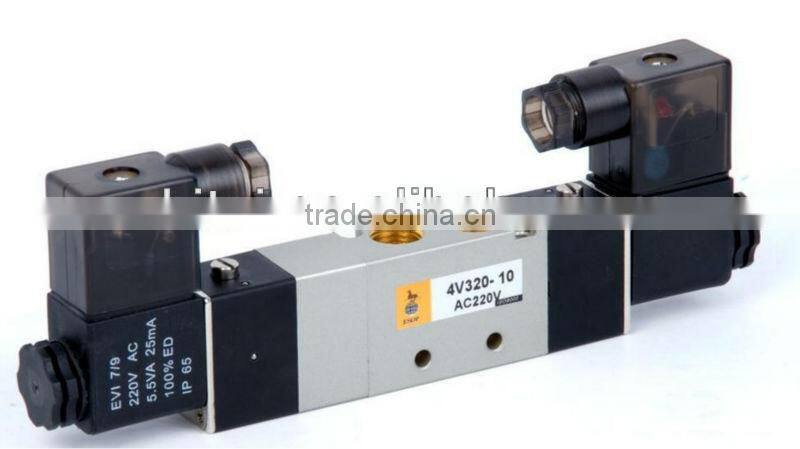

5/2 Solenoid Valves
- SHANGHAI/NINGBO
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Pressure Reducing | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Water | Model Number | SV310-08 SV320-08 | |
| Brand Name | ZHITAI |
Product Description
Specifications
1.Pilot operated
2.Slippery pillar type structure
3.Double control two position have memory function
4.Has manual device
Pneumatic Solenoid Valve
ANDARD series is suitable for most applications and offers excellent value! The very high flow rate (CV > 1.1) makes it the number one choice for large actuators. We also offer speed control valves should your actuator require slower Movement, The coils are certified to CE, CSA and UL standards with a wide range of voltages available. Connector: DIN industrial form.
Voltages 12 and 24VDC, 24VAC 50/60Hz, 120VAC 50/60Hz & 240VAC 50/60Hz.
The ATEX EX series provides enhanced safety features
The coils are CE certified and approved by the Physikalisch-Technische Bundesanstalt (PTB) according to EN 50014: 1997 +A1+A2 and EN. 50028: 1987 Connector: Encapsulated coil and connector with 3m (9 10") cable
Voltages 12VDC, 24VDC, 24VAC 50/60Hz, 120VAC 50/60Hz & 240 VAC 50/60Hz No spacer required for 0° , 90° And 270° Mounting of coil!
Model | SV310-08 SV320-08 |
Medium | Air |
Operating | Internal Piloted |
Valve type | 5 Port 2 Position |
Orifice Size | 35 square milimeter |
Lubrication | Not Required |
Pressure Range | 0.15~0.8Mpa |
Proof Pressure | 12bar |
Temp.Range | -5~60 celsius (23~140 Fahrenheit ) |
Voltage Range | -15%~-10% |
Power Consumption | AC=2.0~3.5VA, DC=2.5W |
Insulation Class | Class F |
Protecion | IP65 (DIN 40050 ) |
Connector | Socket with Plug |
Max Frequency | 5 cycle /second |
Port Size | Inlet & Exhaust Port: PF1/4" |
