Specifications
1,Maximum size:1200*3600mm2,Moq:10 square meters
3,On-transparent,off-opaque
4,Color:milky white,brown
5,we are the factory
1,Smart film introduction:
Smart film, also named as Privacy Film or Switchable Transparent Film ( STF),
is an intelligent high function film, which has a special characteristic of changing between clear and opaque by voltage control.
when power on the smart film becomes transparent, and the smart film becomes opaque when power off.
Widely used for office partition,shower room,windows, doors and other privacy place.

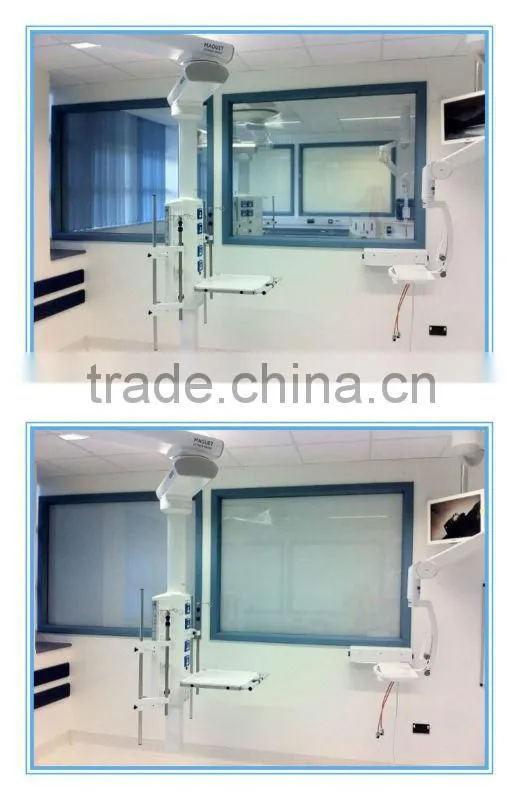

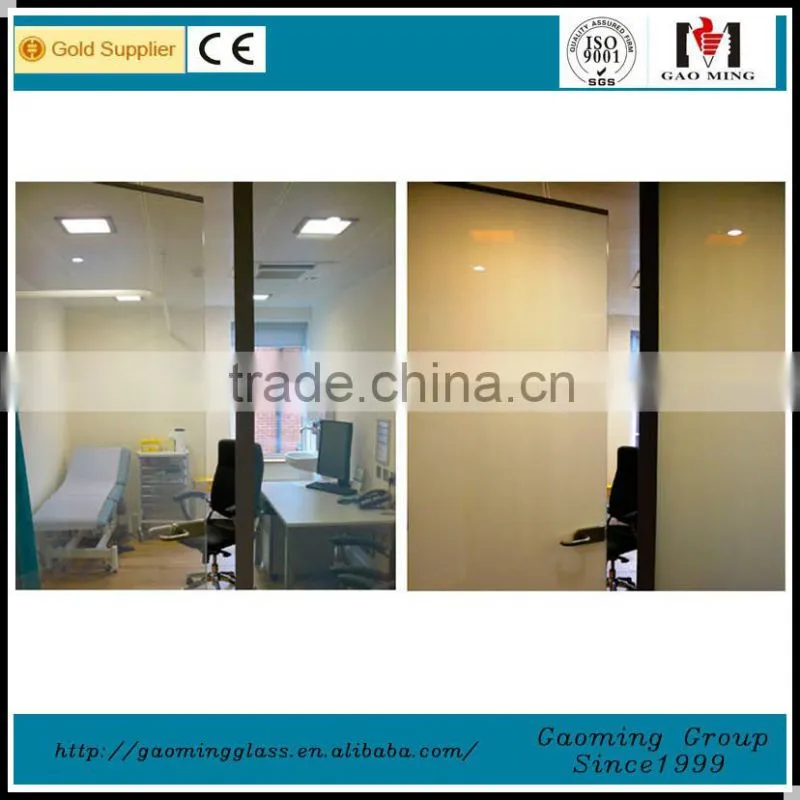

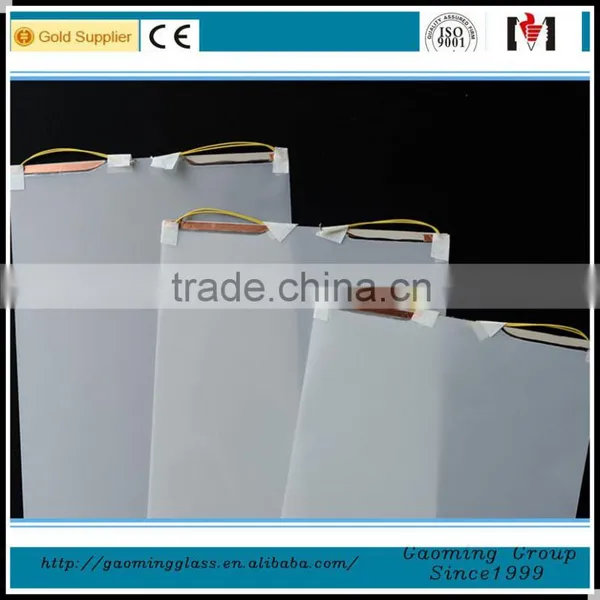

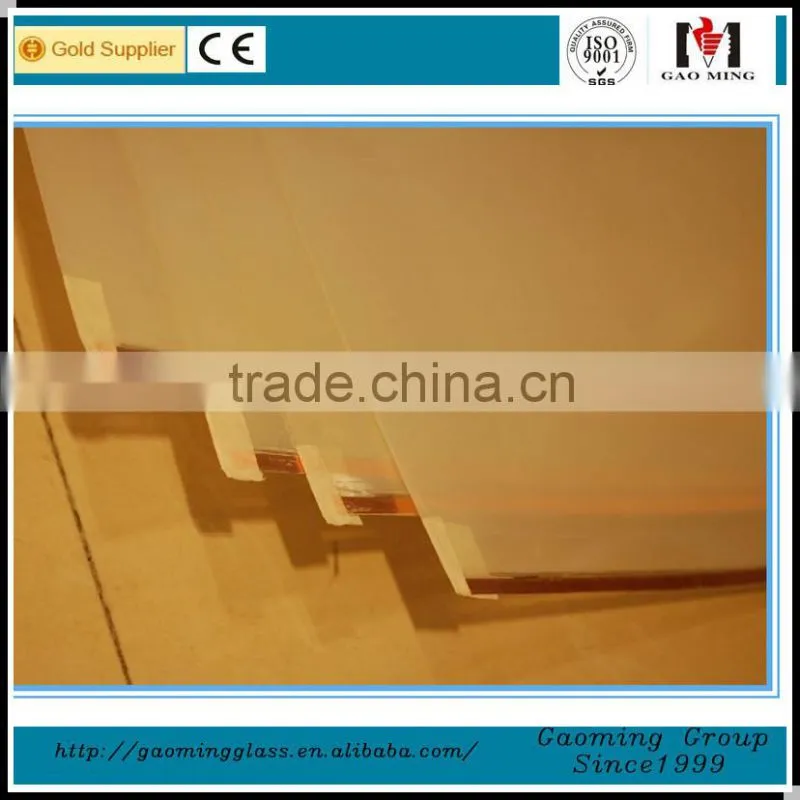

2, Smart film pictures:

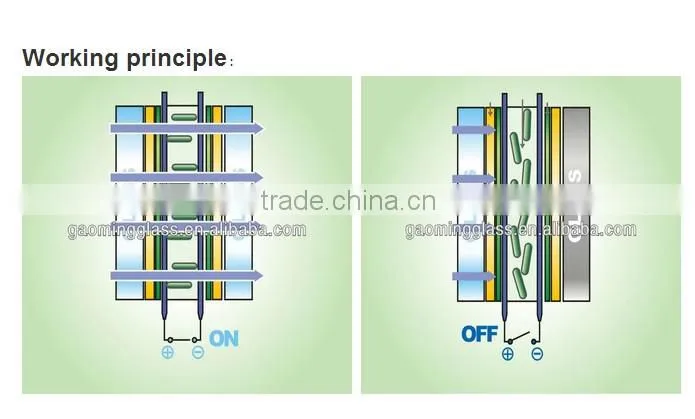

3,Smart film Working principe:

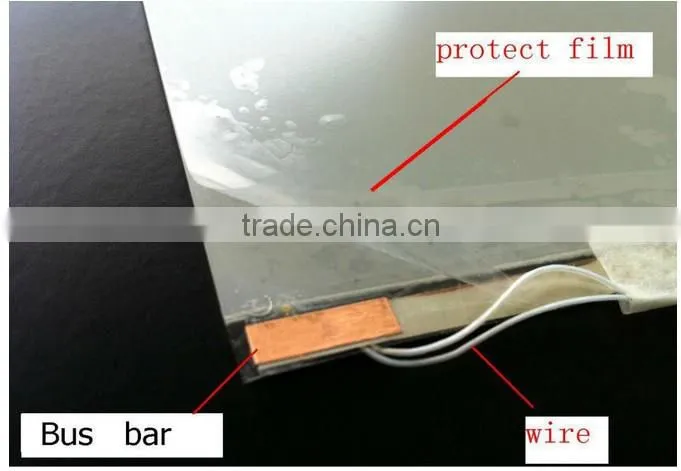

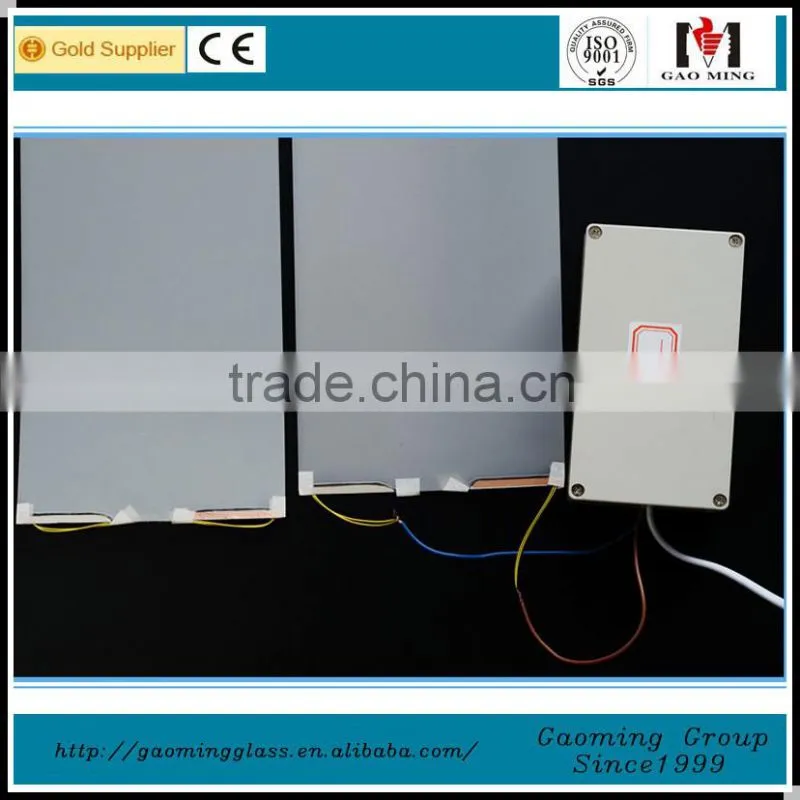

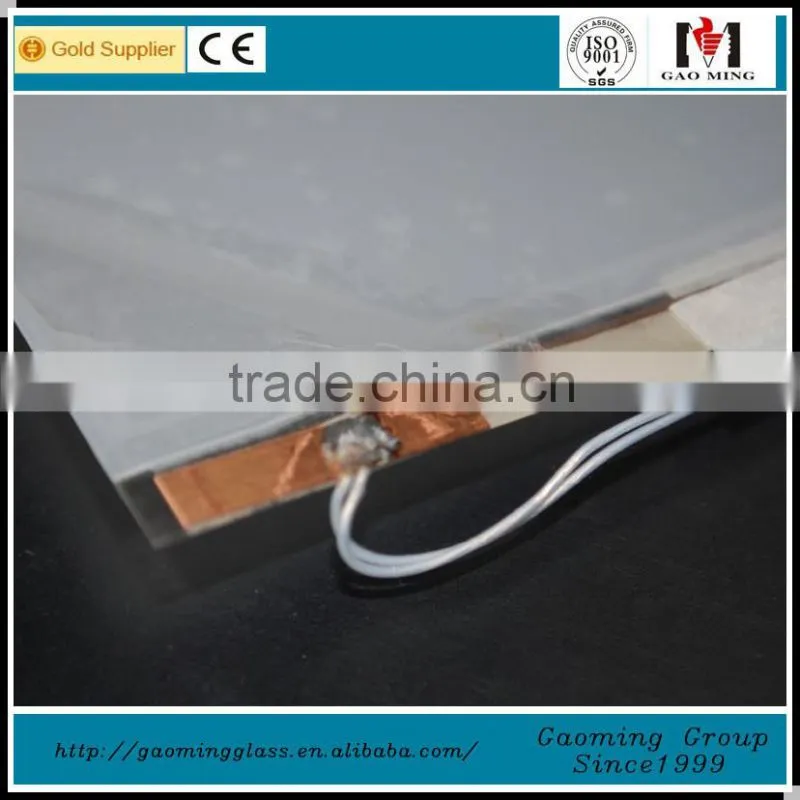

4,Smart film connection attachments
Function
1. Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF.
2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
3. Blocks more than 99% UV rays ,avoiding fading in the room.
4. Sound proof. With excellent damping action, the smart glass is easy to block the noise.
5.Projection. Smart glass is a good projection screen. When it is under suit light, the perfect projection appears.
5,Smart film Specification and Technical Date:
Optical Properties |
Parallel Light Transmission |
ON |
more than 81% |
OFF |
less than 10% |
||
Visible Light Transmission |
ON |
more than 80% |
|
OFF |
more than 60% |
||
Visual Angle |
ON |
150 degree |
|
UV Blocking |
On/ off |
more than 99% |
|
Electrical Properties |
Operating Voltage |
On |
48 volts A.C. |
Frequency |
On |
50~60HZ |
|
Current |
On |
2 mA/sq mt |
|
Power Consumption |
On |
3 W/sq mt |
|
Switching Time |
ON to OFF |
Tr.2ms |
|
OFF to ON |
Td.10ms |
||
Specification |
Thickness |
8mm (3mm+3mm) to 22mm (10mm+10mm) |
|
Max Size |
1524mm x 3048mm |
||
Glass Color: |
Clear, bronze, gray, green tint etc. (laminated with various of Glass ) |
||
Other index |
Working Temperature |
–10~60 °C |
|
Preserve Temperature |
–20~75 °C |
||
Life time |
less than 50000 hr |
||

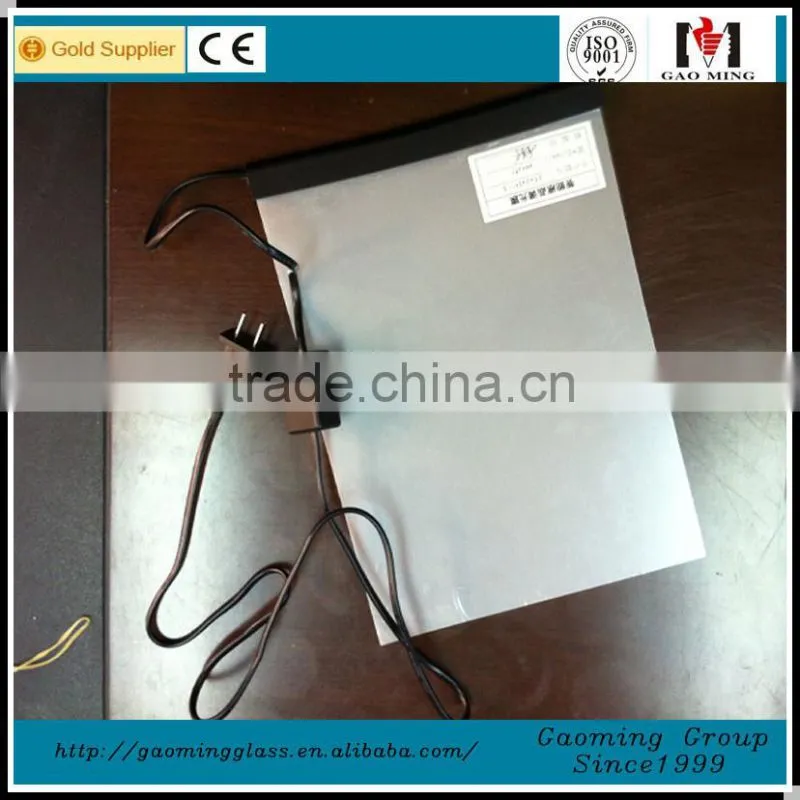

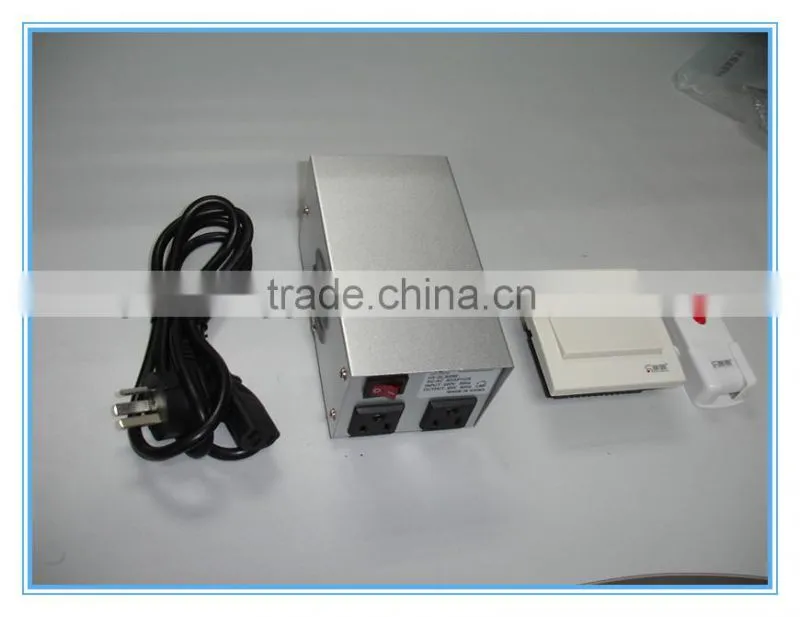

6,Smart film sample and power system:

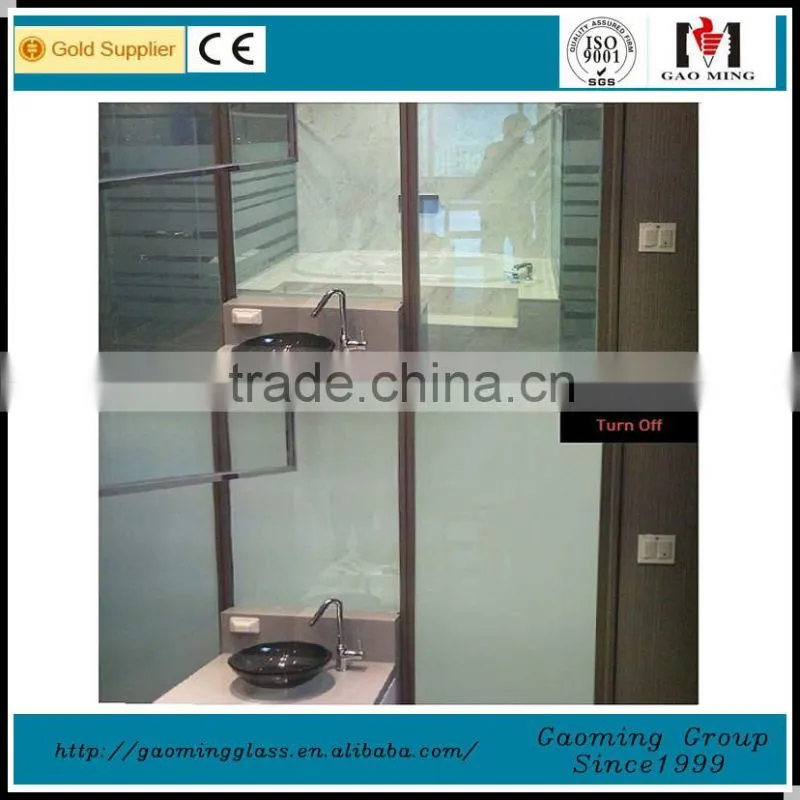

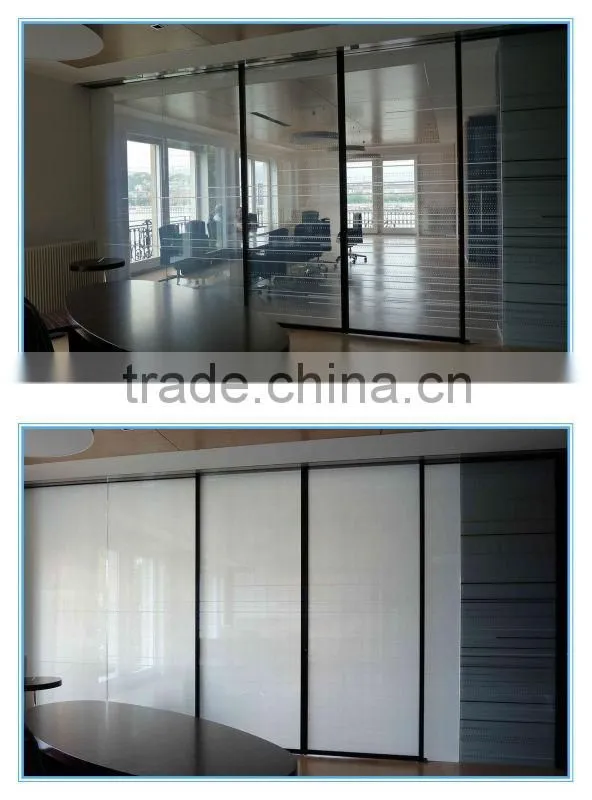

7,Smart film Application:
Glass wall / partition/ Bath Room / Shower Enclosure /Meeting room.Police office
Police office,hotel,bank,hospital
entertainment place
8,Smart film Packaging:

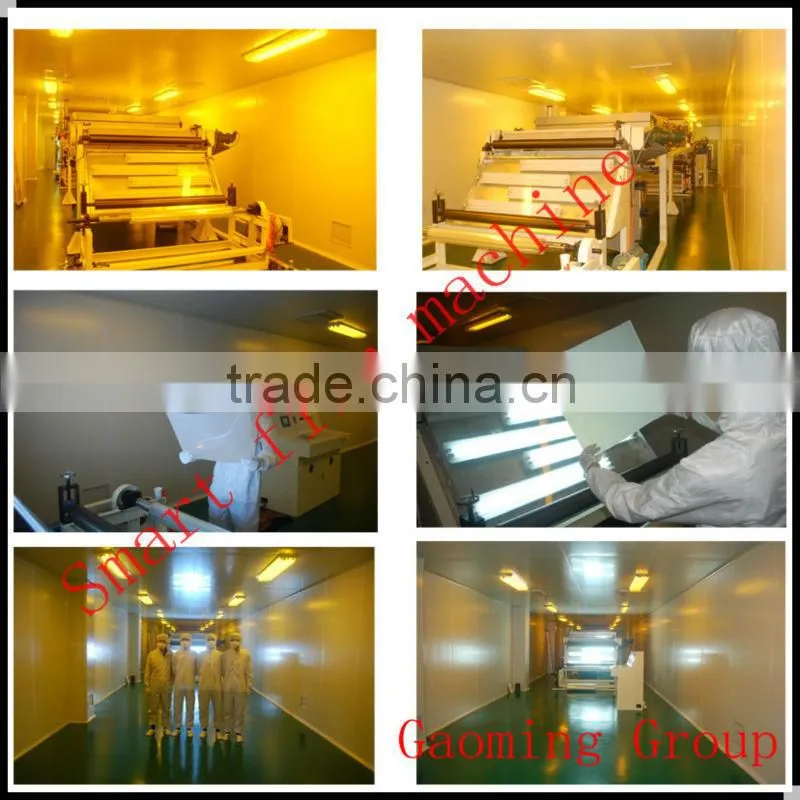

9,Smart film factory and machine:
10,Smart film certification:
11,Smart film factory introduction:
| Zhejiang Gaoming Group Co.,Ltd. | |||
| Subsidiary | Main Product | Main Equipment | Certificate |
|
NO.1 Zhejiang Gaoming Glass Co.,Ltd. |
Tempered Glass | Bottero Cutting Machine | CCC |
| Laminated Glass | Tempered Glass Machine | CE | |
| Insulated Glass | Glass Washing Machine | ISO | |
| Smart Glass | Glass Drilling Machine | TUV | |
| U Profile Glass | Glass Edge Polish Machine | ||
| Fireproof Glass | Laminated Glass Machines | ||
| Bulletproof Glass | Insulated Glass Machines | ||
|
NO.2 Zhejiang Dingsheng New Material Technology Co.,Ltd. |
Smart Film | Smart Film Machines | CCC |
| Aluminium Window | Digital-control Sizing Cutter | CE | |
| Aluminium Door | Digital-control Punch | ISO | |
| Aluminium Louver | Digital-control Milling Machine | TUV | |
| Skylight | Digital-control Crimping Machine | ||
|
NO.3 Zhejiang Gaoming Engineer & Curtain Wall Co.,Ltd. |
Point-supported Curtain Wall |
Digital-control curtain wall Machine Center |
ISO |
|
Hidden-Frame Curtain Wall |
Advanced aluminium alloy curtain wall machine center |
CE | |
|
Exposed-Frame Curtain Wall |
Assembly Machines | TUV | |
|
Unitized Curtain Wall |
Plastic-Injecting Machines | AAA Credit | |
