Home > Chemicals > Plastic Products > Other Plastic Products > Wave Cut or Straight Cut Ejection Rubber Sheet Rubber Sheet for Die Making
Wave Cut or Straight Cut Ejection Rubber Sheet Rubber Sheet for Die Making
US$ 15.00 - 15.00
MOQ: 5 Boxes
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Diamond
Model Number:
PG-ER
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive Creasing Channel For Diemaking Quality ChoiceUS$ 0.40 - 0.40MOQ: 1000 Pieces -
13mm 15mm 18mm 1220 x 2440 mm 4 x 8 Feet Die Board Plywood Dieboard For DiemakerUS$ 28.00 - 28.00MOQ: 100 Pieces
-
QE Series 300w 400w and 600w CO2 ( Carbon Dioxide ) Laser Glass Tube Quality ChoiceUS$ 2500.00 - 2500.00MOQ: 1 Set
-
QE-S Series 300w 400w and 600w CO2 ( Carbon Dioxide ) Laser Glass Tube Quality ChoiceUS$ 2500.00 - 2500.00MOQ: 1 Set
-
Bookbinding Stitching Wire(galvanized Wire, Round Wire)US$ 1.18 - 1.32MOQ: 50 Kilograms
Place of Origin
Shanghai, China
Brand Name
Diamond
Model Number
PG-ER
Plastic Modling Type
Mould
Specifications
Good bounced back power, durablity
Different thickness, 7,8,9,10,11,12mm

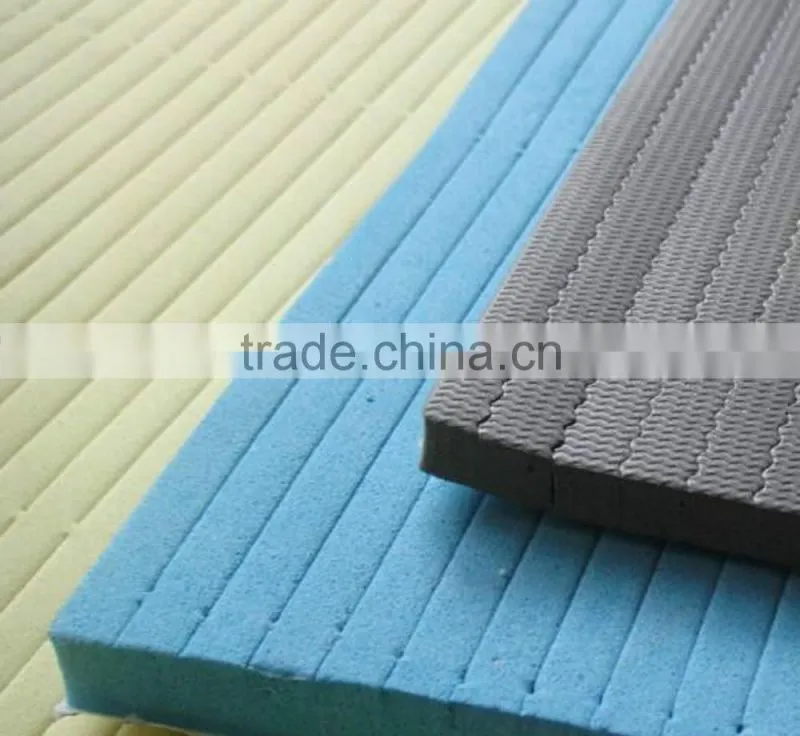

Slit into 42 wave or straight line
Adhesive back
We have 2 kinds of ejection rubber:

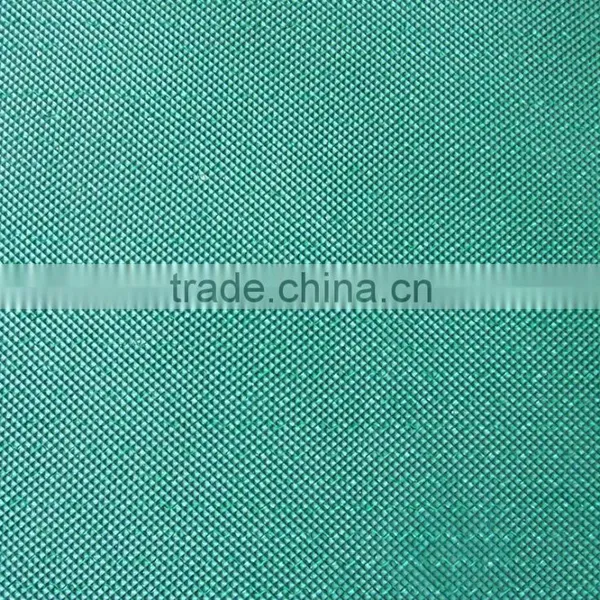

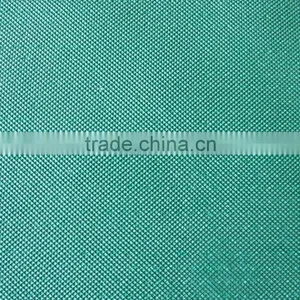

1. Green ejection rubber
300x380x8mm
300x380x10mm
Cut into wave line, Surface has dots for anti-sliding
Every 24 sheets/box for 8mm thickness
Every 20 sheets/box for 10mm thickness
Hardness: 35 shore
This high quality rubber is suitable for fully auto diecutting m/c with fast diecutting action
2. Yellow/blue ejection rubber
300x380x9mm
300x380x12mm
Cut into wave line, Surface has dots for anti-sliding
Every 24 sheets/box for 9mm thickness
Every 20 sheets/box for 12mm thickness
Hardness: 20 shore
This medium quality rubber is suitable for semi-auto diecutting m/c (tiger mouth diecutting m/c).
| ITEM | HARDNESS | THICKNESS | PACKAGE |
| White Band Shape Rubber | 20 | 9mm | 27sheets/box |
| 12mm | 20sheets/box | ||
| Orange Band Shape Rubber | 25 | 8mm | 30sheets/box |
| 9mm | 27sheets/box | ||
| Orange Wave Shape Rubber | 25 | 8mm | 30sheets/box |
| 9mm | 27sheets/box | ||
| Orange Outward Ripple Shape Rubber | 30 | 8mm | 30sheets/box |
| 9mm | 27sheets/box | ||
| Gray Band Shape Rubber | 30 | 8mm | 30sheets/box |
| 9mm | 27sheets/box | ||
| Gray Outward Ripple Shape Rubber | 30 | 8mm | 30sheets/box |
| 9mm | 27sheets/box | ||
| Gray Wave Shape Rubber | 35 | 8mm | 30sheets/box |
| 9mm | 27sheets/box | ||
|
Gray Cube Shape Rubber
For the corrugated paper
|
25 | 13mm | 18sheets/box |
| 15mm | 16sheets/box | ||
| 16mm | 15sheets/box | ||
|
Special Rubber For
Electronic Products(orange)
|
20 | 5mm | 48sheets/box |
| 6mm | 40sheets/box | ||
| 7mm | 34sheets/box | ||
| Green Wave Rubber | 25 | 8x380x300mm | 24sheets/box |
| Green Wave Rubber | 35 | 10x380x300mm | 20sheets/box |
